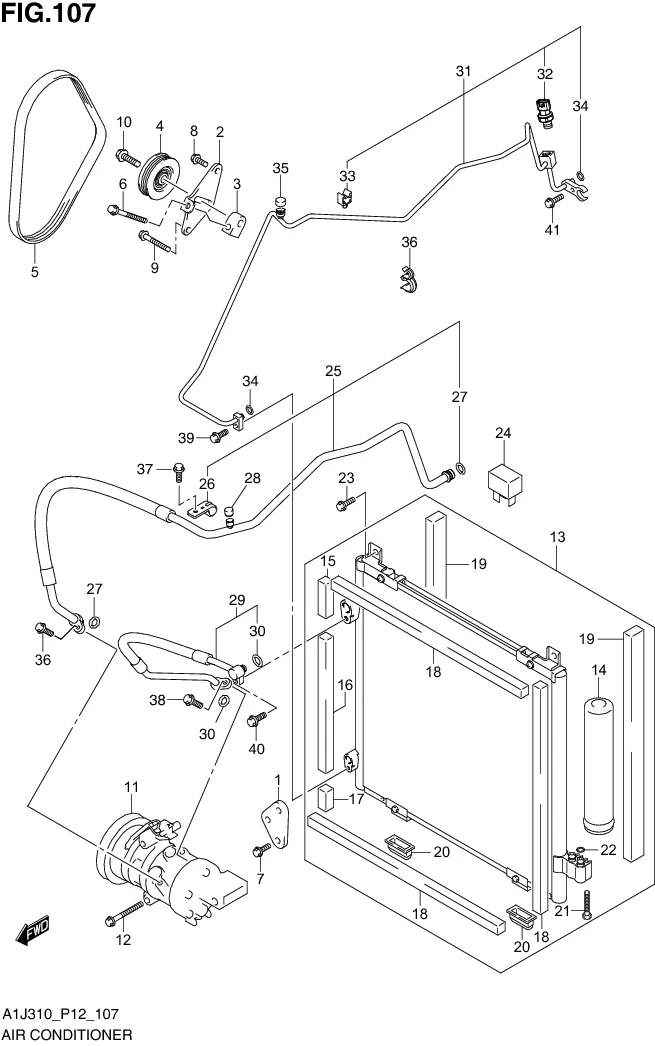

FIG. 107 AIR CONDITIONER

No	No. Part	Description	Qty	Price Per Pcs
1	95111-67L10-000 SUB: 95111B67L10N000	BRACKET, CPRSR	1	Rp24.500
2	95123-67L10-000 SUB: 95123B67L10N000	BRACKET, TENSION PULLEY	1	Rp127.000
3	95125-67L10-000 SUB: 95125B67L10N000	TENSIONER, CPRSR	1	Rp207.500
4	95130-68K10-000 SUB: 95130B68K10N000	PULLEY ASSY, BELT TENSION	1	Rp460.500
5	95141-68K20-000 SUB: 95141B68K20N000	V-BELT (4PK785)	1	Rp65.500
6	95126-58J00-000 SUB: 09103-08352-000	BOLT (8X75)	1	Rp48.500
7	01550-0825A-000 SUB: 01550B0825AN000	BOLT	2	Rp3.500
8	01550-0825A-000 SUB: 01550B0825AN000	BOLT	1	Rp3.500
9	01550-0860A-000	BOLT	1	Rp5.500
10	01550-1040A-000 SUB: 01550B1040AN000	BOLT	1	Rp7.000
11	95200-68KE0-000 SUB: 95200B68KE0N000	COMPRESSOR ASSY	1	Rp4.550.500
12	01550-0875A-000	BOLT	3	Rp6.000
13	95310-67L11-000 SUB: 95310B67L10N000	CONDENSER ASSY	1	Rp1.202.500
14	95339-67L10-000 SUB: 95339B67L10N000	•DRYER	1	Rp505.500
15	95811-67L10-000 SUB: 95811B67L10N000	•PACKING	1	Rp9.500
16	95812-67L10-000 SUB: 95812B67L10N000	•PACKING	1	Rp14.500
17	95813-67L10-000 SUB: 95813B67L10N000	•PACKING	1	Rp8.500
18	95814-67L10-000 SUB: 95814B67L10N000	•PACKING	3	Rp16.000
19	95815-67L10-000 SUB: 95815B67L10N000	•PACKING	2	Rp25.000
20	95851-67L10-000 SUB: 95851B67L10N000	•BUSH	2	Rp20.500
21	95911-67L10-000 SUB: 95911B67L10N000	•BOLT	2	Rp42.500
22	95891-67L10-000 SUB: 95891B67L10N000	•O RING	2	Rp8.500
23	01550-0616A-000 SUB: 01550B0616AN000	BOLT	2	Rp3.500
24	38860-76F01-000 SUB: 38860B76F01N000	RELAY, A/C	1	Rp47.000
25	95710-67L10-000 SUB: 95710B67L10N000	HOSE, SUCTION	1	Rp508.000
26	95771-70G10-000 SUB: 95771B70G10N000	•CLAMP	1	Rp22.500
27	95896-50G00-000 SUB: 95896B50G00N000	•O RING	2	Rp19.000
28	95711-67L10-000 SUB: 95711B67L10N000	•VALVE CAP (L)	1	Rp14.500
29	95720-67L10-000 SUB: 95720B67L10N000	HOSE, DISCHARGE	1	Rp242.500
30	95895-50G00-000 SUB: 95895B50G00N000	•O RING	2	Rp12.500
31	95731-67L10-000 SUB: 95731B67L10N000	HOSE, LIQUID	1	Rp775.000
32	95546-58J10-000 SUB: 95546B58J10N000	•SENSOR, PRESSURE	1	Rp301.500
33	95761-55K00-000 SUB: 95761B55K00N000	•CLAMP	1	Rp10.500
34	95891-50G00-000 SUB: 95891B50G00N000	•O RING	2	Rp12.500
35	95732-67L10-000 SUB: 95732B67L10N000	•VALVE CAP (H)	1	Rp14.500
36	95762-68K10-000 SUB: 95762B68K10N000	CLAMP	2	Rp6.500
37	DISCONTINUE SUB: 01550B0612AN000	BOLT	1	-
38	01550-0620B-000 SUB: 01550B0620AN000	BOLT	2	Rp3.500
39	01550-0620B-000 SUB: 01550B0620AN000	BOLT	1	Rp3.500
40	01550-0620B-000 SUB: 01550B0620AN000	BOLT	1	Rp3.500
41	01550-0620B-000 SUB: 01550B0620AN000	BOLT	1	Rp3.500
