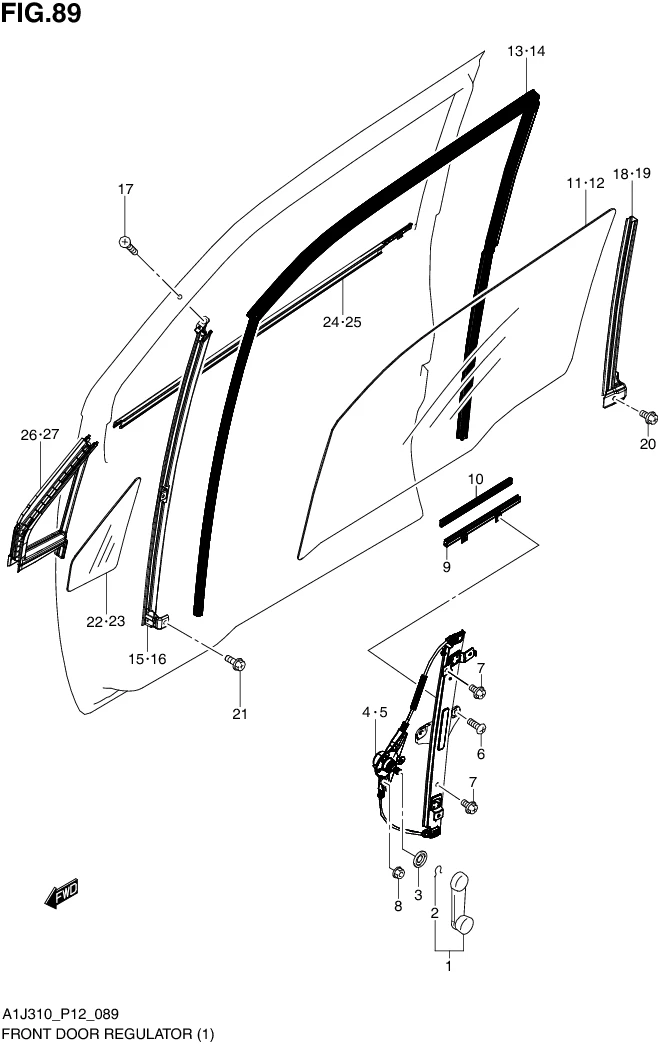

FIG. 89 FRONT DOOR REGULATOR (GA)

No	No. Part	Description	Qty	Price Per Pcs
1	82960-60G00-5PK	HANDLE, DOOR WINDOW (BLACK)	2	Rp30.000
2	78463-78000-000	•SNAP, DOOR WINDOW REGULATOR	2	Rp15.000
3	82972-70B00-5PK SUB: 82972B70B00N5PK	ESCUTCHEON (BLACK)	2	Rp9.500
4	83410M67L00-000	REGULATOR ASSY, FRONT RH	1	Rp385.000
5	83440M67L00-000	REGULATOR ASSY, FRONT LH	1	Rp385.000
6	02112M7612A-000	SCREW	4	Rp5.500
7	02162-0612A-000	SCREW	6	Rp11.000
8	08316-1006A-000 SUB: 08316B1006AN000	NUT	6	Rp2.000
9	83630-77A00-000	CHANNEL, GLASS BOTTOM	2	Rp143.000
10	83691-60A00-000	RUBBER, GLASS BOTTOM CHANNEL	2	Rp37.000
11	84531-67LA0-000 SUB: 84531B67LA0N000	GLASS, FRONT DOOR WINDOW RH	1	Rp220.000
12	84536-67LA0-000 SUB: 84536B67LA0N000	GLASS, FRONT DOOR WINDOW LH	1	Rp220.000
13	83661M67L00-000	RUN, FRONT DOOR GLASS RH	1	Rp274.000
14	83665M67L00-000	RUN, FRONT DOOR GLASS LH	1	Rp274.000
15	81710-67LA0-000 SUB: 81710B67LA0N000	SASH, FRONT DOOR FR RH	1	Rp93.500
16	81720-67LA0-000 SUB: 81720B67LA0N000	SASH, FRONT DOOR FR LH	1	Rp93.500
17	02122M0512A-000	SCREW	2	Rp3.500
18	81730-67LA0-000 SUB: 81730B67LA0N000	SASH, FRONT DOOR RR RH	1	Rp25.500
19	81740-67LA0-000 SUB: 81740B67LA0N000	SASH, FRONT DOOR RR LH	1	Rp25.500
20	09122-76001-000	SCREW (6X16)	2	Rp16.500
21	02162-0612A-000	SCREW	4	Rp11.000
22	84521-67LA0-000 SUB: 84521B67LA0N000	GLASS, DOOR WINDOW FRONT RH	1	Rp47.500
23	84526-67LA0-000 SUB: 84526B67LA0N000	GLASS, DOOR WINDOW FRONT LH	1	Rp47.500
24	83811-67LA0-000 SUB: 83811B67LA0N000	WEATHERSTRIP, DOOR OUT RH	1	Rp70.500
25	83821-67LA0-000 SUB: 83821B67LA0N000	WEATHERSTRIP, DOOR OUT LH	1	Rp70.500
26	84614-67LA0-000 SUB: 84614B67LA0N000	WEATHERSTRIP, DR WINDOW FR RH	1	Rp76.500
27	84615-67LA0-000 SUB: 84615B67LA0N000	WEATHERSTRIP, DR WINDOW FR LH	1	Rp76.500
