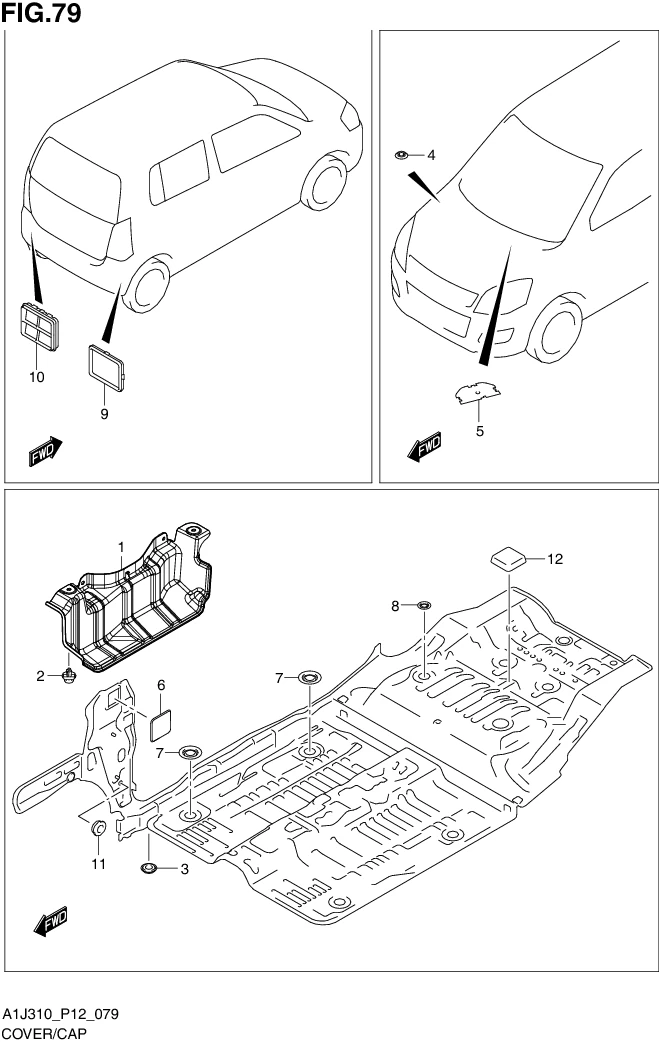

FIG. 79 COVER/CAP

FIG. 79 COVER/CAP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	72393-67L00-000 SUB: 72393B67L00N000	COVER, SPLASH RH	1	Rp32.000
2	09409M07L01-000 SUB: 09409M07332-000	CLIP	4	Rp5.000
3	72397-58J00-000	CAP, DASH LOWER	2	Rp39.000
4	09250-10016-000 SUB: 09250B10016N000	CAP	2	Rp14.000
5	75421-67L00-000 SUB: 75421B67L00N000	CAP, DASH LOWER	2	Rp17.000
6	75422-58J00-000	CAP, DASH SIDE UPPER	2	Rp57.000
7	75431-75J00-000 SUB: 75431B75J00N000	CAP, MAIN FLOOR DRAIN	4	Rp8.000
8	75431-75J00-000 SUB: 75431B75J00N000	CAP, REAR FLOOR DRAIN	4	Rp8.000
9	75432-58J01-000	CAP, TAIL END	1	Rp50.500
10	77330-65D00-000	OUTLET, VENTILATOR	1	Rp195.500
11	09250-15012-000 SUB: 09250B15012N000	CAP	2	Rp5.000
12	75561-67L00-000 SUB: 75561B67L00N000	PAD, SPARE TIRE	1	Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
