KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 64 FRONT HOOD PANEL FIG. 65 FRONT FENDER FIG. 66 FRONT BODY PANEL FIG. 67 FLOOR PANEL FIG. 68 SIDE BODY PANEL FIG. 69 ROOF PANEL FIG. 70 FRONT BUMPER FIG. 71 REAR BUMPER FIG. 72 INSTRUMENT PANEL FIG. 73 VENTILATOR FIG. 74 COOLING UNIT FIG. 75 HEATER CONTROL FIG. 76 CONSOLE BOX FIG. 77 FLOOR CARPET FIG. 78 INTERIOR TRIM FIG. 79 COVER/CAP FIG. 80 FUEL LID OPENER (GA)FIG. 81 FUEL LID OPENER (GL,GX)FIG. 82 ROOF LINING FIG. 83 ROOF MOLDING (GA)FIG. 84 ROOF MOLDING (GL,GX)FIG. 85 EMBLEM FIG. 86 WINDSHIELD FIG. 87 FRONT DOOR PANEL (GA)FIG. 88 FRONT DOOR PANEL (GL,GX)FIG. 89 FRONT DOOR REGULATOR (GA)FIG. 90 FRONT DOOR REGULATOR (GL,GX)FIG. 91 FRONT DOOR LOCK (GA,GL,GX)FIG. 92 REAR DOOR PANEL (GA,GL)FIG. 93 REAR DOOR PANEL (GX)FIG. 94 REAR DOOR REGULATOR FIG. 95 REAR DOOR LOCK (GA,GL,GX)FIG. 96 BACK DOOR PANEL FIG. 97 BACK DOOR LOCK (GA,GL,GX)FIG. 98 MIRROR/SUNVISOR (GA)FIG. 99 MIRROR/SUNVISOR (GL,GX)FIG. 100 SEAT BELT FIG. 101 FRONT RH SEAT FIG. 102 FRONT LH SEAT (GA,GL)FIG. 103 FRONT LH SEAT (GX)FIG. 104 REAR SEAT FIG. 105 FUEL TANK FIG. 106 TOOL FIG. 107 AIR CONDITIONER FIG. 108 COMPRESSOR

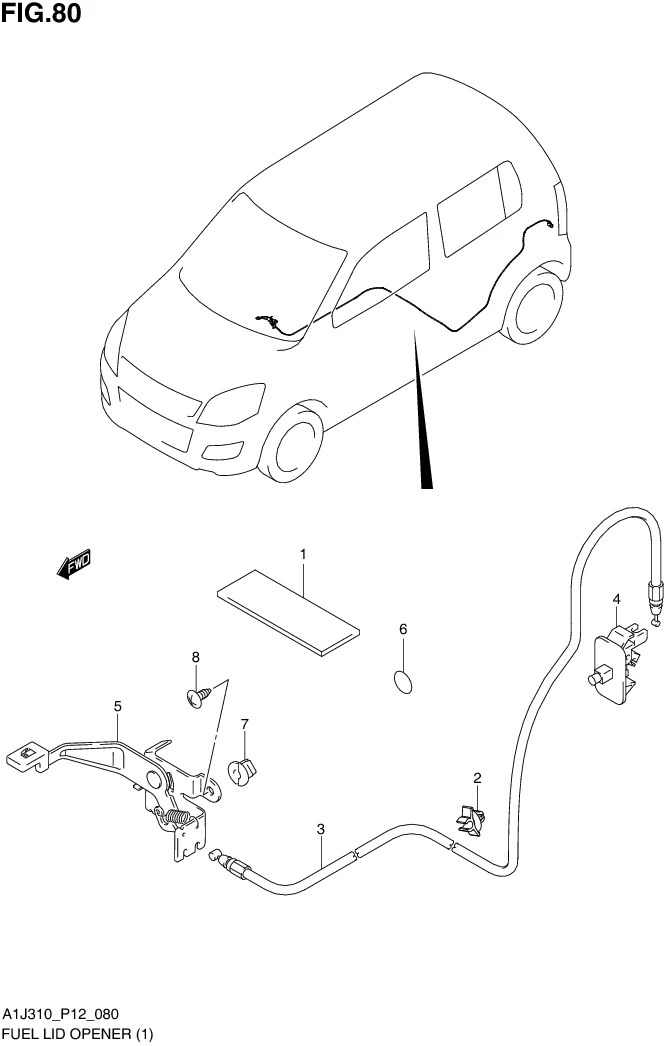

FIG. 80 FUEL LID OPENER (GA)

FIG. 80 FUEL LID OPENER (GA)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36930M82000-000 SUB: 36930M82010-000	TAPE, BACK DOOR OPENER	1	Rp6.500
2	75411-76G30-000	CLAMP, FUEL LID OPENER	3	Rp32.000
3	76430-67LG0-000 SUB: 76430B67LG0N000	CABLE, FUEL LID OPENER	1	Rp53.000
4	76520-77M00-000 SUB: 76520B77M00N000	OPENER, FUEL LID	1	Rp95.500
5	83310-67LH0-000 SUB: 83310B67LH0N000	LEVER, FUEL LID OPENER	1	Rp30.000
6	DISCONTINUE SUB: 83599-82200-000	FILM, DOOR WINDOW REGULATOR	1	-
7	71851M70F00-000 SUB: 09148M06007-000	NUT	1	Rp4.000
8	03241M0612A-000	SCREW	1	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
