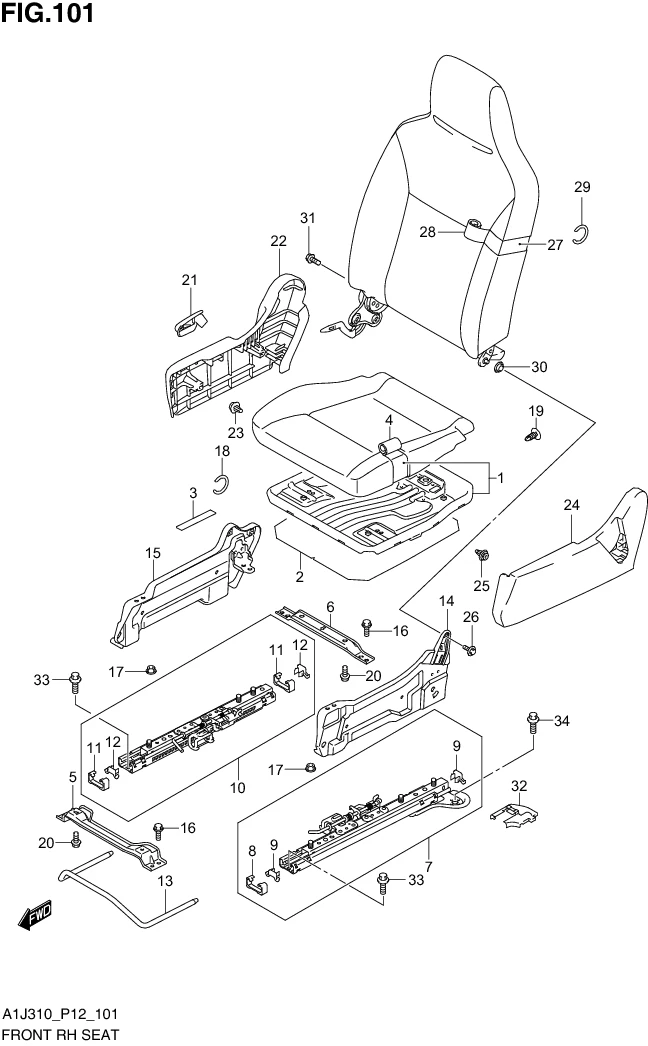

FIG. 101 FRONT RH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85105-67LA0-000 SUB: 85105B67LA0N000	CUSHION SUB ASSY, FRONT RH	1	Rp539.500
2	85163-67LA0-000 SUB: 85163B67LA0N000	SILENCER, FRONT CUSHION	1	Rp11.000
3	85169-67LA0-000 SUB: 85169B67LA0N000	TAPE, FRONT CUSHION	1	Rp9.500
4-1	85180-67LA0-AP8 SUB: 85180B67LA0NAP8	TRIM, FRONT CUSHION (BEIGE/GRAY)	1	Rp247.500	GA
4-2	85180-67LA0-AP6 SUB: 85180B67LA0NAP6	TRIM, FRONT CUSHION (BEIGE/GRAY)	1	Rp271.500	GL,GX
5	85261-67LB0-000 SUB: 85261B67L00N000	MEMBER, CUSHION FRONT	1	Rp56.500
6	85271-67L00-000 SUB: 85271B67L00N000	MEMBER, CUSHION REAR	1	Rp47.500
7	86610-67LA0-000 SUB: 86610B67LA0N000	ADJUSTER ASSY, FR INSIDE RH	1	Rp496.500
8	86652-67LA0-000 SUB: 86652B67LA0N000	•CAP, FRONT ADJUSTER LOWER	1	Rp106.000
9	86654-67LA0-000 SUB: 86654B67LA0N000	•CAP, FRONT ADJUSTER UPPER	2	Rp106.000
10	86630-67LA0-000 SUB: 86630B67LA0N000	ADJUSTER ASSY, FR OUTSIDE RH	1	Rp416.000
11	86652-67LA0-000 SUB: 86652B67LA0N000	•CAP, FRONT ADJUSTER LOWER	2	Rp106.000
12	86654-67LA0-000 SUB: 86654B67LA0N000	•CAP, FRONT ADJUSTER UPPER	2	Rp106.000
13	86691-67LA0-000 SUB: 86691B67LA0N000	HANDLE, FRONT SEAT ADJUSTER	1	Rp263.500
14	86710-67LA0-000 SUB: 86710B67LA0N000	RISER, FRONT INSIDE RH	1	Rp164.500
15	86730-67LA0-000 SUB: 86730B67LA0N000	RISER, FRONT OUTSIDE RH	1	Rp156.000
16	01550-0812A-000 SUB: 01550B0812AN000	BOLT	8	Rp3.500
17	08316-1010A-000 SUB: 08316B1010AN000	NUT	6	Rp3.500
18	09387-19001-000 SUB: 09387B19001N000	RING	8	Rp9.000
19	09409-10302-5PK	CLIP (BLACK)	2	Rp18.500
20	01550-0812A-000 SUB: 01550B0812AN000	BOLT	4	Rp3.500
21	85211-67LA0-R8H SUB: 85211B67LA0NR8H	KNOB, RECLINING RH (BEIGE)	1	Rp11.000
22	85221-67LA0-R8H SUB: 85221B67LA0NR8H	COVER, RECLINING OUTSIDE RH (BEIGE)	1	Rp63.000
23	09409-10313-000	CLIP	2	Rp14.000
24	85241-67LA0-R8H SUB: 85241B67LA0NR8H	COVER, FR HINGE OUTSIDE RH (BEIGE)	1	Rp183.000
25	09409-10313-000	CLIP	2	Rp14.000
26	85295-58J01-000 SUB: 85295B58J01N000	BOLT, FRONT BACK FIX	1	Rp34.000
27	85305-67LA0-000 SUB: 85305B67LA0N000	BACK S/ASSY, FRONT RH	1	Rp932.000
28-1	85380-67LA0-AP8 SUB: 85380B67LA0NAP8	TRIM, FRONT BACK RH (BEIGE/GRAY)	1	Rp388.500	GA
28-2	85380-67LA0-AP6 SUB: 85380B67LA0NAP6	TRIM, FRONT BACK RH (BEIGE/GRAY)	1	Rp443.000	GL,GX
29	09387-19001-000 SUB: 09387B19001N000	RING	5	Rp9.000
30	87286-58J10-000 SUB: 87286B58J10N000	BUSH, FRONT BACK FIX	1	Rp4.500
31	01550-1016A-000 SUB: 01550B1016AN000	BOLT	2	Rp5.500
32	85495-85K00-5PK SUB: 85495B85K00N5PK	COVER, REAR INSIDE RH (BLACK)	1	Rp30.500
33	09119-08097-000 SUB: 09119-08094-000	BOLT (8X25)	3	Rp27.500
34	09119-10085-000	BOLT	1	Rp27.000
