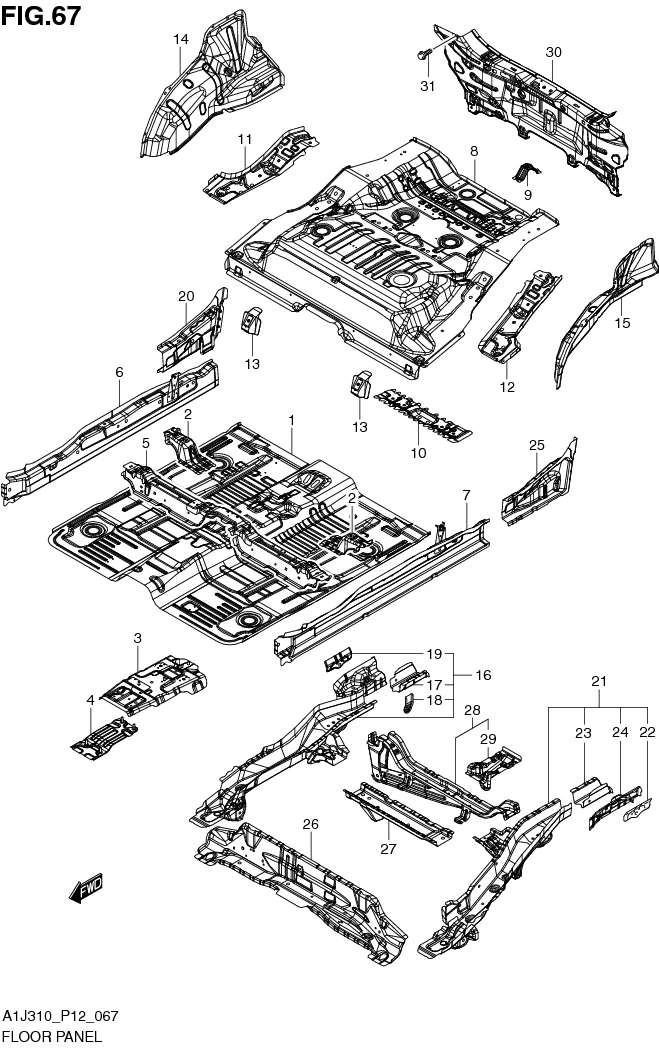

FIG. 67 FLOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	61111-67L00-000 SUB: 61111B67L00N000	PAN, MAIN FLOOR	1	Rp3.602.500
2	61141-67L00-000 SUB: 61141B67L00N000	BRACKET, FR SEAT RR OUT	2	Rp87.500
3	61150-67LG0-000 SUB: 61150B67LG0N000	REINF, MAIN FLOOR	1	Rp168.000
4	61161-70K00-000 SUB: 61161B70K00N000	BRACKET, SHIFT LEVER	1	Rp50.000
5	61210-67LG0-000 SUB: 61210B67L00N000	CROSSMEMBER, FLR PAN UPPER	1	Rp403.500
6	61310-67L10-000 SUB: 61310B67L10N000	PANEL, SIDE SILL INR RH	1	Rp307.000
7	61320-67L10-000 SUB: 61320B67L10N000	PANEL, SIDE SILL INR LH	1	Rp307.000
8	61511-67LG0-000 SUB: 61511B67L00N000	PAN, REAR FLOOR	1	Rp3.396.000
9	61512-67L00-000 SUB: 61512B67L00N000	BRACKET, SPARE TIRE	1	Rp12.500
10	61521-67LG0-000 SUB: 61521B67LG0N000	REINF, RR SEAT BELT CTR	1	Rp120.500
11	61531-67L10-000 SUB: 61531B67L10N000	REINF, RR SEAT BELT SIDE RH	1	Rp143.500
12	61536-67L10-000 SUB: 61536B67L10N000	REINF, RR SEAT BELT SIDE LH	1	Rp143.500
13	61540-67LG0-000 SUB: 61540B67LG0N000	BRACKET, RR SEAT LEG FR	2	Rp21.000
14	61611-67LG0-000 SUB: 61611B67LG0N000	PANEL, RR WHEEL HOUSE INR RH	1	Rp145.500
15	61661-67L00-000 SUB: 61661B67L00N000	PANEL, RR WHEEL HOUSE INR LH	1	Rp145.500
16	62100-67L10-000 SUB: 62100B67L10N000	MEMBER, RR FLOOR SIDE RH	1	Rp811.500
17	62113-67L10-000 SUB: 62113B67L10N000	•MEMBER, RR FLOOR SIDE RR RH	1	Rp47.500
18	62124-67L00-000 SUB: 62124B67L00N000	•HANGER, MUFFLER REAR	1	Rp19.500
19	62142-82K00-000 SUB: 62142B82K00N000	•BRACKET, RR SHOCK ABS OUTSIDE	1	Rp52.000
20	62210-67L10-000 SUB: 62210B67L10N000	LOCKER, RR FLOOR FR	1	Rp138.500
21	62300-67L10-000 SUB: 62300B67L10N000	MEMBER, RR FLOOR SIDE LH	1	Rp811.500
22	62142-82K00-000 SUB: 62142B82K00N000	•BRACKET, RR SHOCK ABS OUTSIDE	1	Rp52.000
23	62313-67L10-000 SUB: 62313B67L10N000	•MEMBER, RR FLOOR SIDE RR LH	1	Rp47.500
24	62341-82K00-000 SUB: 62341B82K00N000	•BRACKET, RR SHOCK ABS INSIDE LH	1	Rp102.000
25	62410-67L10-000 SUB: 62410B67L10N000	LOCKER, RR FLOOR FR	1	Rp138.500
26	62610-67LG1-000 SUB: 62610B67LG0N000	CROSSMEMBER, RR FLR FRONT	1	Rp947.000
27	62620-67L00-000 SUB: 62620B67L00N000	CROSSMEMBER, RR FLOOR2ND	1	Rp123.500
28	62630-67LG0-000 SUB: 62630B67LG0N000	CROSSMEMBER, RR FLOOR 3RD	1	Rp363.000
29	62640-67L00-000 SUB: 62640B67L00N000	•HOOK, TOWING REAR	1	Rp99.000
30	65400-67LG1-000 SUB: 65400B67LG0N000	PANEL, REAR SKIRT	1	Rp286.500
31	DISCONTINUE SUB: 01550B0612AN000	BOLT	2	-
