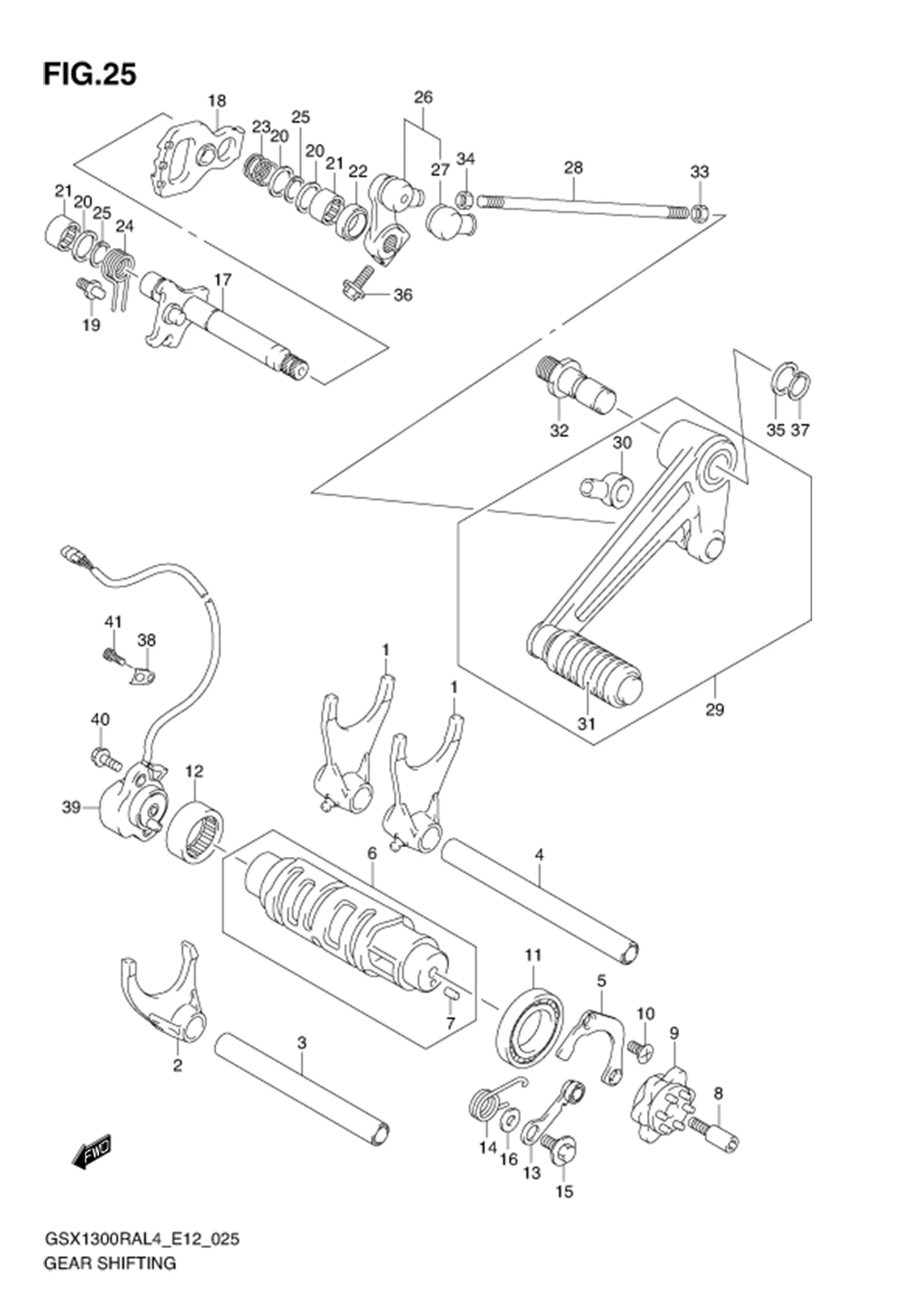

FIG.25 GEAR SHIFTING

FIG.25 GEAR SHIFTING
No No. Part Description Qty Price Per Pcs Remarks
1 25211-24F20-000 FORK, GEAR SHIFT NO.1 2 Rp880.000
2 25231-24F20-000 FORK, GEAR SHIFT NO.3 1 Rp889.000
3 25411-24F00-000 SHAFT, GEAR SHIFT NO.2 1 Rp155.500 L:132
4 25411-38B01-000 SHAFT, GEAR SHIFT NO.1 1 Rp160.000 L:152
5 24741-24F10-000 RETAINER, SHIFT CAM BEARING 1 Rp54.500
6 25310-24F00-000 CAM, GEAR SHIFT 1 Rp1.517.500
7 04221-04089-000 ?PIN 1 Rp3.500
8 DISCONTINUE
SUB: 25312-42F01-000		 STOPPER, SHIFT CAM DRIVE PLATE 1 -
9 25381-13E00-000 PLATE, GEAR SHIFT CAM 1 Rp297.500
10 09126-06011-000 SCREW (6X12) 2 Rp16.000
11 DISCONTINUE
SUB: 09262-25006-000		 BEARING (25X47X8) 1 -
12 DISCONTINUE
SUB: 09263-25018-000		 BEARING (25X32X12) 1 - RH
13 25350-24F00-000 STOPPER, SHIFT CAM 1 Rp191.500
14 25355-24F00-000 SPRING, SHIFT CAM STOPPER 1 Rp105.000
15 09111-06041-000 BOLT (6X14.3) 1 Rp4.000
16 08211-06141-000 WASHER 1 Rp9.500
17 25510-15H00-000 SHAFT, GEAR 1 Rp511.000
18 25512-06G10-000 PLATE, GEAR SHIFT CAM DRIVE 1 Rp196.000
19 25671-01030-000
SUB: 25671-01011-000		 STOPPER, GEAR SHIFT ARM 1 Rp4.500
20 09181-14167-000 SHIM (14X22X1) 3 Rp13.000 RH
21 09263-14027-000 BEARING (14X20X12) 2 Rp43.500
22 09283M14005-000
SUB: 09283-14005-000		 OIL SEAL (14X22X7.3) 1 Rp9.000
23 09440-17009-000 SPRING 1 Rp13.000
24 09444-20007-000
SUB: 09444-20001-000		 SPRING 1 Rp4.500
25 08331-3114A-000 CIRCLIP 2 Rp12.500
26 25520-40F00-000 ARM, GEAR SHIFT LINK 1 Rp311.500
27 25526-47000-000 ?COVER, DUST 1 Rp12.500
28 25525-19F00-000 ROD, GEAR SHIFT LINK (L:150) 1 Rp74.500
29 25600-17G01-000 LEVER ASSY, GEAR SHIFT 1 Rp713.500
30 25526-47000-000 ?COVER, DUST 1 Rp12.500
31 25652-16H11-000
SUB: 25652-20C00-000		 ?RUBBER, GEAR SHIFT PEDAL 1 Rp3.500
32 25617-03F10-000 SHAFT, GEAR SHIFT LEVER 1 Rp85.000
33 09140-06020-000 NUT 1 Rp13.500
34 09140-06025-000 NUT 1 Rp7.000 LH
35 09160-12011-000 WASHER (12.5X20X1) 1 Rp10.500
36 01500-0625A-000 BOLT 1 Rp2.000
37 08331-3112A-000 CIRCLIP 1 Rp13.000
38 DISCONTINUE
SUB: 31497-45000-000		 CLAMP, POSITION SENSOR LEAD 3 -
39 37730-15H01-000 SENSOR ASSY, GEAR POSITION 1 Rp692.000
40 07120-0516A-000 BOLT 2 Rp18.500
41 07130-0510A-000 BOLT 3 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
