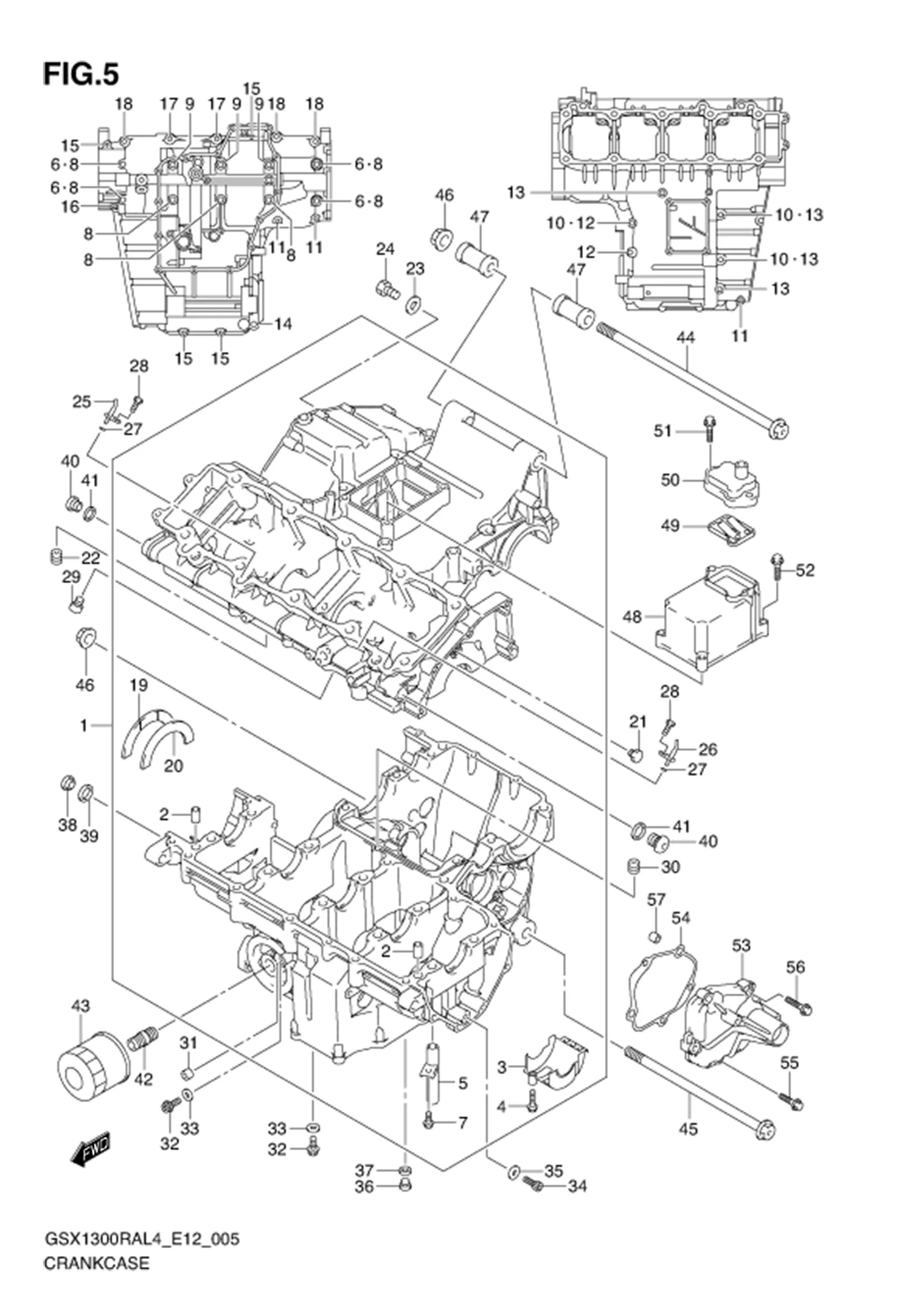

FIG.5 CRANKCASE

FIG.5 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11302-24820-000 CRANKCASE SET 1 Rp24.613.500
2 DISCONTINUE
SUB: 11319-33E50-000		 ?PIN 4 -
3 11323-24F10-000 ?SEPARATOR, OIL 1 Rp272.000
4 01547-0625A-000 ?BOLT 1 Rp6.500
5 11328-24F00-000 ?UNION, BREATHER OIL 1 Rp103.500
6 DISCONTINUE
SUB: 09168-10031-000		 ?GASKET (10.2X20X2.3) 4 -
7 01547-0610A-000
SUB: 01547-0612A-000		 ?BOLT 1 Rp3.000
8 09103-09008-000 ?BOLT (9X95) 7 Rp50.000
9 09103-09010-000 ?BOLT (9X115) 3 Rp56.000
10 09168-08016-000 ?GASKET (8.2X14X1) 3 Rp25.000
11 01547-0650A-000 ?BOLT 3 Rp7.000
12 01550-0865B-000
SUB: 01550-0865A-000		 ?BOLT 2 Rp8.500
13 01550-0880A-000 ?BOLT 4 Rp5.500
14 01550-1060A-000 ?BOLT 1 Rp5.500
15 01547-0640B-000
SUB: 01547-0640A-000		 ?BOLT 4 Rp7.000
16 01547-0660A-000 ?BOLT 1 Rp7.500
17 DISCONTINUE
SUB: 09103-08155-000		 ?BOLT (8X60) 2 -
18 09103-08355-000 ?BOLT (8X50) 3 Rp24.500
19 12228-24F00-0D0 ?BEARING, CRANK THRUST (GREEN) 1 Rp68.500 RH
20-1 12228-24F00-0A0 ?BEARING, CRANK THRUST (RED) 1 Rp68.500 LH
20-2 12228-24F00-0B0 ?BEARING, CRANK THRUST (BLACK) 1 Rp68.500
20-3 12228-24F00-0C0 ?BEARING, CRANK THRUST (BLUE) 1 Rp68.500
20-4 12228-24F00-0D0 ?BEARING, CRANK THRUST (GREEN) 1 Rp68.500
20-5 12228-24F00-0E0 ?BEARING, CRANK THRUST (YELLOW) 1 Rp68.500
20-6 12228-24F00-0F0 ?BEARING, CRANK THRUST (WHITE) 1 Rp68.500
21 11393-33E01-000 JET, MAGNETO COOLING 1 Rp122.000
22 09493-20012-000 JET, AIR (100) 1 Rp106.500
23 09168-06023-000 GASKET (5.8X13X1.2) 1 Rp13.500
24 07120-0612B-000 PLUG 1 Rp21.500
25 11390-34E00-000 JET, PISTON COOLING RH 2 Rp117.500
26 11390-34E10-000 JET, PISTON COOLING LH 2 Rp117.500
27 09280-04004-000 O RING (D:1.2,ID:4) 4 Rp3.500
28 09106-06075-000 BOLT (6X12) 4 Rp15.000
29 09106-06076-000 BOLT (6X10) 4 Rp23.500
30 09493-36006-000 JET, AIR (180) 1 Rp100.000
31 11532-46E00-000 JET, OIL GALLERY 1 Rp63.000
32 07120-0612B-000 PLUG 2 Rp21.500
33 09168-06023-000 GASKET (5.8X13X1.2) 2 Rp13.500
34 07130-0816A-000
SUB: 07130-0816B-000		 PLUG 1 Rp7.000
35 09168-08016-000 GASKET (8.2X14X1) 1 Rp25.000
36 09248-10010-000 PLUG (10X10) 1 Rp29.500
37 09168-10L02-000
SUB: 09168-10002-000		 GASKET (10X14X3.6) 1 Rp2.500
38 09248-16012-000 PLUG (16X8) 1 Rp31.500
39 09168-16002-000 GASKET (16X22X2) 1 Rp13.000
40 09248-14012-000 PLUG (14X12) 2 Rp36.500
41 09168-14002-000 GASKET (13.8X18.8X4.8) 2 Rp14.000
42 16591-06B01-000 UNION, OIL FILTER STAND 1 Rp50.000
43 16510-07J00-000 FILTER ASSY, ENGINE OIL 1 Rp129.500
44 09103-12120-000 BOLT (12X320) 1 Rp175.500
45 09103-12119-000 BOLT (12X243) 1 Rp166.500
46 09159-12054-000 NUT 2 Rp67.000
47 11611-24F00-000 SPACER, ENGINE MOUNT 2 Rp154.000
48 11331-15H00-000 COVER, BREATHER 1 Rp834.000
49 13150-01H01-000 VALVE ASSY, BREATHER REED 1 Rp376.000
50 11372-21H00-000 COVER, REED VALVE 1 Rp110.500
51 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 2 Rp6.500
52 01547-0630A-000 BOLT 4 Rp6.500
53 11383-15H00-000 COVER, GEAR SHIFT 1 Rp720.000
54 11485-24F00-000 GASKET 1 Rp44.000
55 01547-0625A-000 BOLT 3 Rp6.500
56 01547-0635A-000 BOLT 2 Rp6.500
57 04211-09149-000 PIN 2 Rp3.000
