Hayabusa

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 GASKET SETFIG.2 CYLINDER HEAD COVERFIG.3 CYLINDER HEADFIG.4 CYLINDERFIG.5 CRANKCASEFIG.6 CRANKCASE COVERFIG.7 OIL PAN/OIL PUMPFIG.8 CRANKSHAFTFIG.9 STARTER CLUTCHFIG.10 CRANK BALANCERFIG.11 CAMSHAFT/VALVEFIG.12 CAM CHAINFIG.13 THROTTLE BODYFIG.14 THROTTLE BODY HOSE/JOINTFIG.15 AIR CLEANERFIG.16 MUFFLERFIG.17 OIL COOLERFIG.18 FUEL PUMPFIG.19 WATER PUMPFIG.20 RADIATORFIG.21 RADIATOR HOSEFIG.22 2ND AIRFIG.23 CLUTCHFIG.24 TRANSMISSIONFIG.25 GEAR SHIFTING

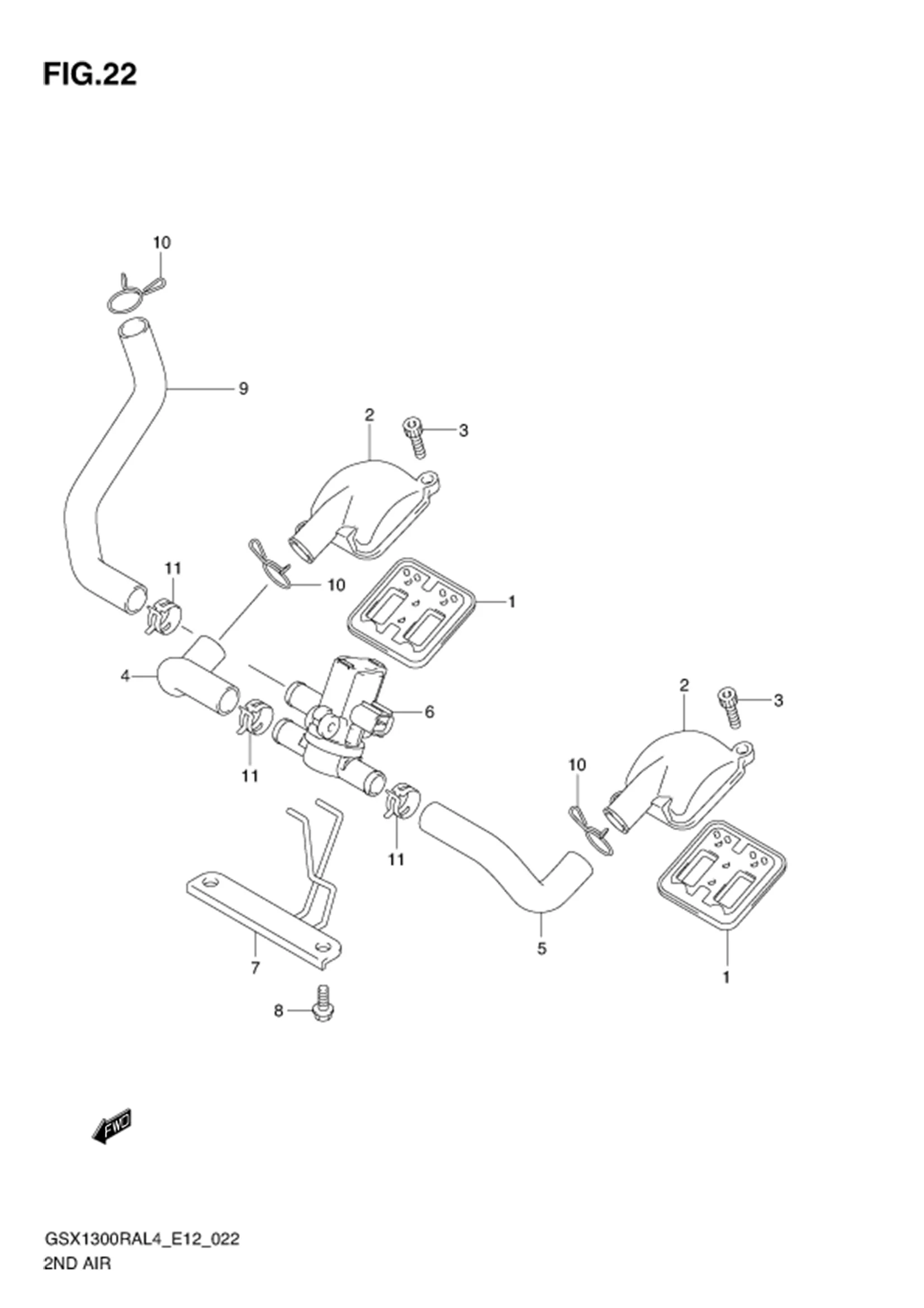

FIG.22 2ND AIR

FIG.22 2ND AIR
No No. Part Description Qty Price Per Pcs Remarks
1 18450-35F30-000 VALVE ASSY, 2ND AIR REED 2 Rp561.500
2 18531-15H00-000 COVER 2 Rp184.000
3 09106-06073-000 BOLT (6X16) 4 Rp19.000
4 18461-15H00-000 HOSE, 2ND AIR VALVE RH 1 Rp121.500
5 18471-15H00-000 HOSE, 2ND AIR VALVE LH 1 Rp128.500
6 18510-29G31-000 VALVE ASSY, AIR CUT 1 Rp673.500
7 18610-15H00-000 BRACKET 1 Rp166.000
8 09103-06283-000 BOLT (6X16) 2 Rp20.500
9 18711-15H00-000 HOSE, 2ND AIR CLEANER 1 Rp216.000
10 09401-17201-000 CLIP 3 Rp19.000
11 09401-17L01-000
SUB: 09401-17401-000		 CLIP 3 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
