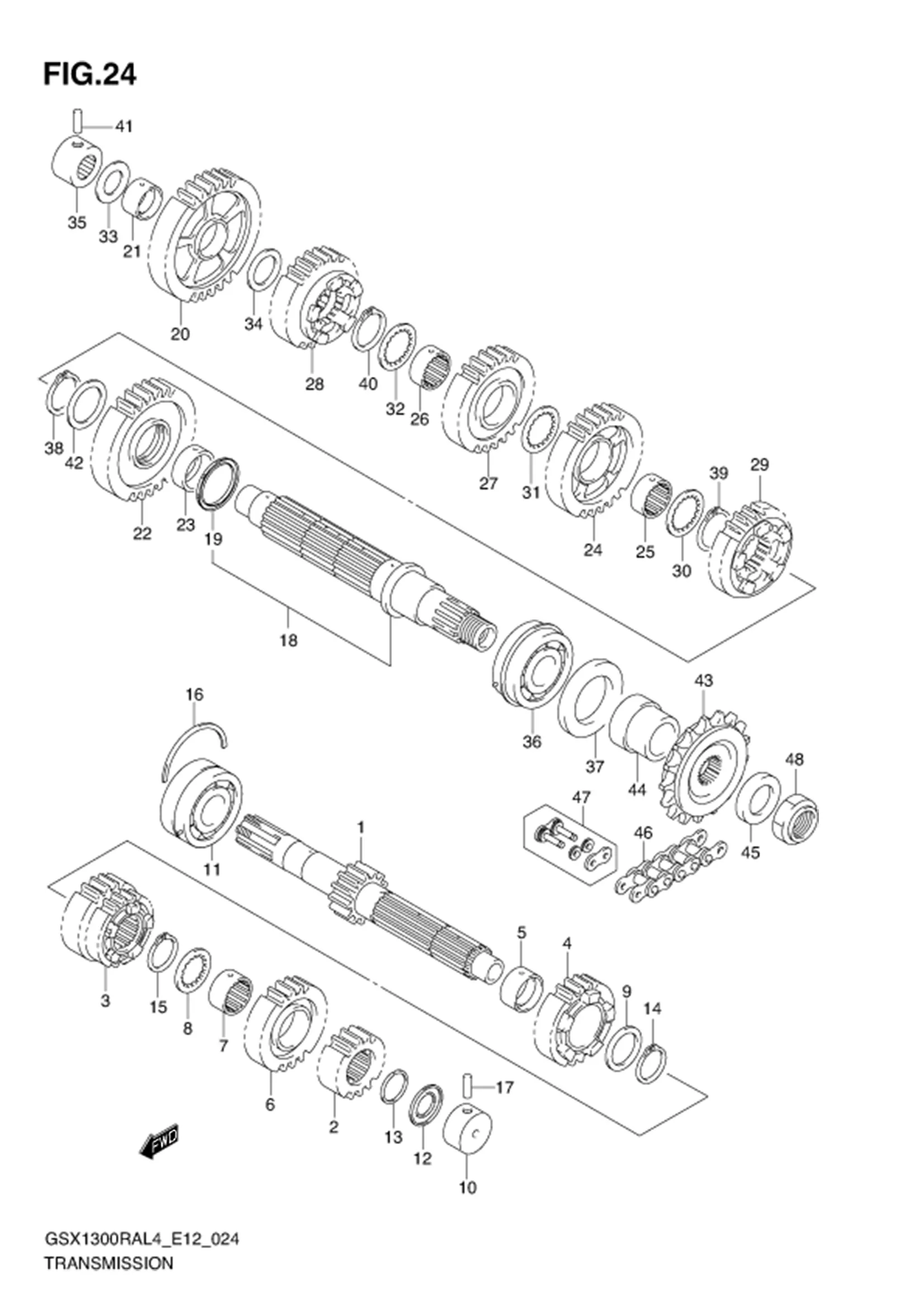

FIG.24 TRANSMISSION

FIG.24 TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1 24120-24F00-000 SHAFT, COUNTER (NT:13) 1 Rp2.327.500
2 24221-15H00-000 GEAR, 2ND DRIVE (NT:16) 1 Rp722.500
3 24231-15H00-000 GEAR, 3RD & 4TH DRIVE (NT:19/21) 1 Rp1.281.000
4 24251-15H01-000 GEAR, 5TH DRIVE (NT:22) 1 Rp1.021.000
5 24252-24F10-000 BUSH, 5TH DRIVE GEAR 1 Rp199.000
6 24261-15H00-000 GEAR, 6TH DRIVE (NT:23) 1 Rp1.133.000
7 24262-24F10-000 BUSH, 6TH DRIVE GEAR 1 Rp199.000
8 09167-27003-000 LOCK WASHER 1 Rp40.000
9 09181-27014-000 SHIM (27X36X2.5) 1 Rp36.000
10 09263-20085-000 BEARING (20X34X17.5) 1 Rp534.500 LH
11 09267-25012-000 BEARING (25X62X25.4) 1 Rp980.000 RH
12 DISCONTINUE
SUB: 09285-20006-000		 OIL SEAL (20X31.2X2.7) 1 -
13 09380-27004-000 CIRCLIP 1 Rp24.500
14 09380-27006-000 CIRCLIP 1 Rp20.000
15 09380-27006-000 CIRCLIP 1 Rp20.000
16 DISCONTINUE
SUB: 09390-62012-000		 C RING 1 - RH
17 DISCONTINUE
SUB: 04221-07209-000		 PIN 1 - LH
18 24130-15H00-000 SHAFT, DRIVE 1 Rp2.147.000
19 24136-48G01-000 ?RING, DRIVE SHAFT FRICTION 1 Rp210.500
20 24311-15H00-000 GEAR, 1ST DRIVEN (NT:34) 1 Rp1.157.000
21 24312-24F10-000 BUSH, 1ST DRIVEN GEAR 1 Rp199.000
22 24321-15H00-000 GEAR, 2ND DRIVEN (NT:31) 1 Rp1.052.000
23 24322-48G00-000 BUSH, 2ND DRIVEN GEAR 1 Rp187.500
24 24331-15H00-000 GEAR, 3RD DRIVEN (NT:29) 1 Rp1.052.000
25 24332-24F10-000 BUSH, 3RD DRIVEN GEAR 1 Rp199.000
26 24332-24F10-000 BUSH, 4TH DRIVEN GEAR 1 Rp199.000
27 24341-15H00-000 GEAR, 4TH DRIVEN (NT:27) 1 Rp1.052.000
28 24351-15H01-000 GEAR, 5TH DRIVEN (NT:25) 1 Rp1.182.000
29 24361-15H00-000 GEAR, 6TH DRIVEN (NT:24) 1 Rp1.076.500
30 09167-30008-000 LOCK WASHER 1 Rp36.000
31 09167-30008-000 LOCK WASHER 1 Rp36.000
32 09167-30008-000 LOCK WASHER 1 Rp36.000
33 09181-20251-000 SHIM (20X34X1) 1 Rp20.000
34 09181-24005-000 SHIM (24X34X1) 1 Rp25.500
35 DISCONTINUE
SUB: 09263-20040-000		 BEARING (20X34X20) 1 - RH
36 09267-30011-000 BEARING (30X62X23.8) 1 Rp1.056.500 LH
37 09283-42018-000 OIL SEAL (42X62X7) 1 Rp240.000
38 09380-30009-000 CIRCLIP 1 Rp24.500
39 09380-30009-000 CIRCLIP 1 Rp24.500
40 09380-30009-000 CIRCLIP 1 Rp24.500
41 DISCONTINUE
SUB: 04221-07209-000		 PIN 1 -
42 08211-30405-000 WASHER 1 Rp24.500
43 DISCONTINUE
SUB: 27510-15H00-000		 SPROCKET, ENGINE (NT:18) 1 -
44 27531-15H00-000 SPACER, ENGINE SPROCKET NO.1 1 Rp215.000
45 27532-15H00-000 SPACER, ENGINE SPROCKET NO.2 1 Rp91.000
46 27600-24F60-118 CHAIN ASSY, DRIVE (RK GB50GSVZ4) 1 Rp3.825.500 L:118->114
47 27620-24F60-000 JOINT SET, DRIVEN 1 Rp132.000 OPT
48 09159-22008-000 NUT 1 Rp203.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
