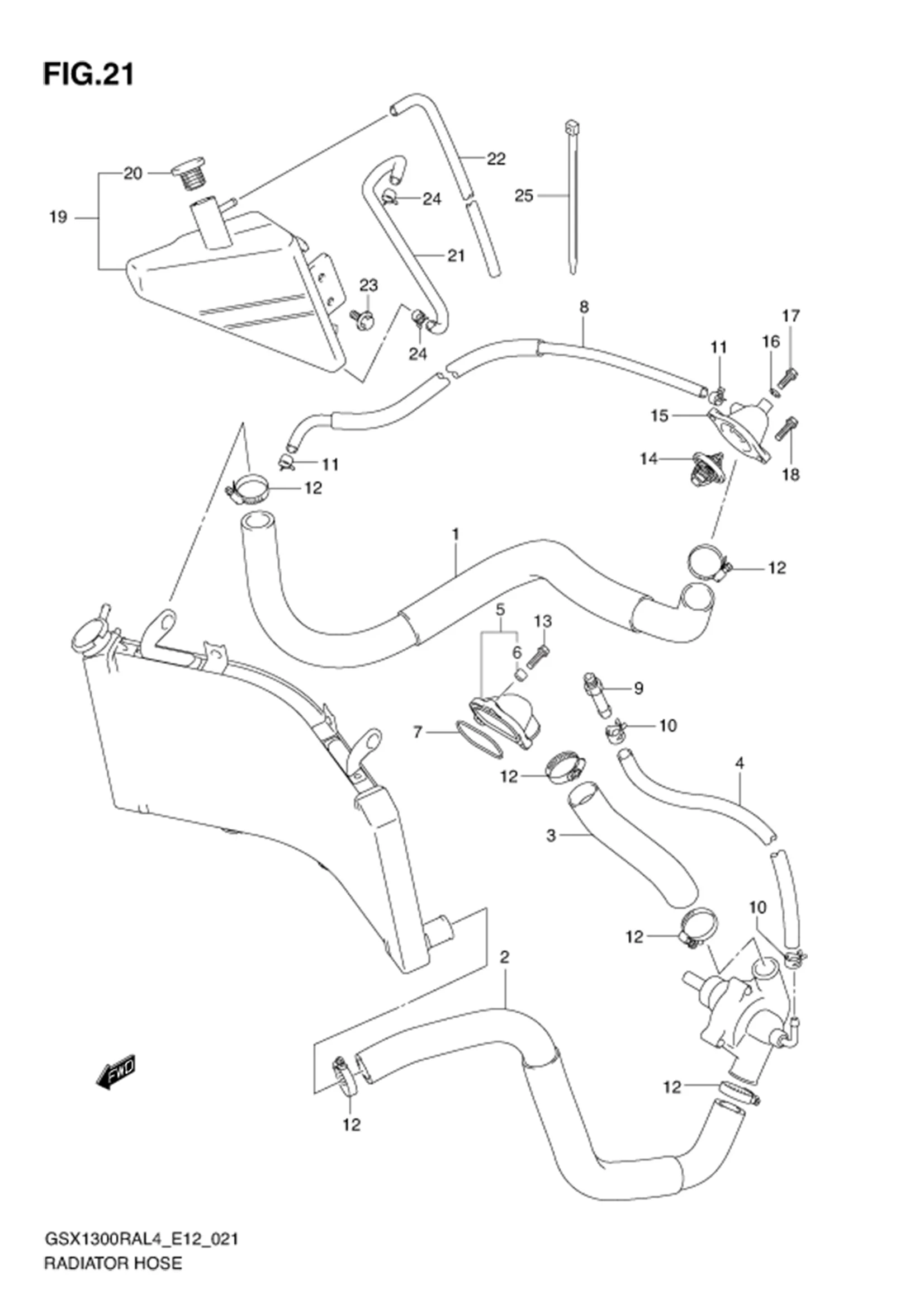

FIG.21 RADIATOR HOSE

FIG.21 RADIATOR HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 17851-15H00-000 HOSE, RADIATOR INLET 1 Rp404.500
2 17852-15H00-000 HOSE, RADIATOR OUTLET 1 Rp304.000
3 17853-24F00-000 HOSE, CYLINDER INLET 1 Rp146.000
4 17854-24F00-000 HOSE, WATER BYPASS 1 Rp142.000
5 17861-33E20-000 CONNECTOR 1 Rp148.000
6 09180-06261-000 ?SPACER (6.5X9X8) 3 Rp14.500
7 17863-33E00-000 O-RING 1 Rp28.500
8 17855-15H00-000 HOSE, WATER AIR BLEED 1 Rp199.500
9 09362-09011-000 UNION 1 Rp54.500
10 DISCONTINUE
SUB: 09401-12409-000		 CLAMP 2 -
11 09401-10409-000 CLIP 2 Rp7.500
12 09402-35501-000 CLAMP 6 Rp45.000
13 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 3 Rp6.500
14 17670-15H00-000 THERMOSTAT, WATER 1 Rp224.000
15 17661-35F00-000 COVER, THERMOSTAT 1 Rp256.000
16 09168-06026-000 GASKET (6.4X11.5X0.8) 1 Rp20.000
17 17568-50F00-000 UNION, AIR VENT 1 Rp35.500
18 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 2 Rp6.500
19 17910-15H00-000 TANK ASSY, RESERVOIR 1 Rp463.000
20 17931-02FA0-000 ?CAP 1 Rp40.000
21 17981-15H00-000 HOSE, RESERVER TANK INLET 1 Rp94.000
22 17982-22H00-000 HOSE, RESERVER TANK OVERFLOW 1 Rp74.500
23 DISCONTINUE
SUB: 09111-06085-000		 BOLT (6X12) 1 -
24 09401-08411-000 CLIP 2 Rp12.500
25 09407-14407-000 CLAMP (L:145) 1 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
