Hayabusa

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 GASKET SETFIG.2 CYLINDER HEAD COVERFIG.3 CYLINDER HEADFIG.4 CYLINDERFIG.5 CRANKCASEFIG.6 CRANKCASE COVERFIG.7 OIL PAN/OIL PUMPFIG.8 CRANKSHAFTFIG.9 STARTER CLUTCHFIG.10 CRANK BALANCERFIG.11 CAMSHAFT/VALVEFIG.12 CAM CHAINFIG.13 THROTTLE BODYFIG.14 THROTTLE BODY HOSE/JOINTFIG.15 AIR CLEANERFIG.16 MUFFLERFIG.17 OIL COOLERFIG.18 FUEL PUMPFIG.19 WATER PUMPFIG.20 RADIATORFIG.21 RADIATOR HOSEFIG.22 2ND AIRFIG.23 CLUTCHFIG.24 TRANSMISSIONFIG.25 GEAR SHIFTING

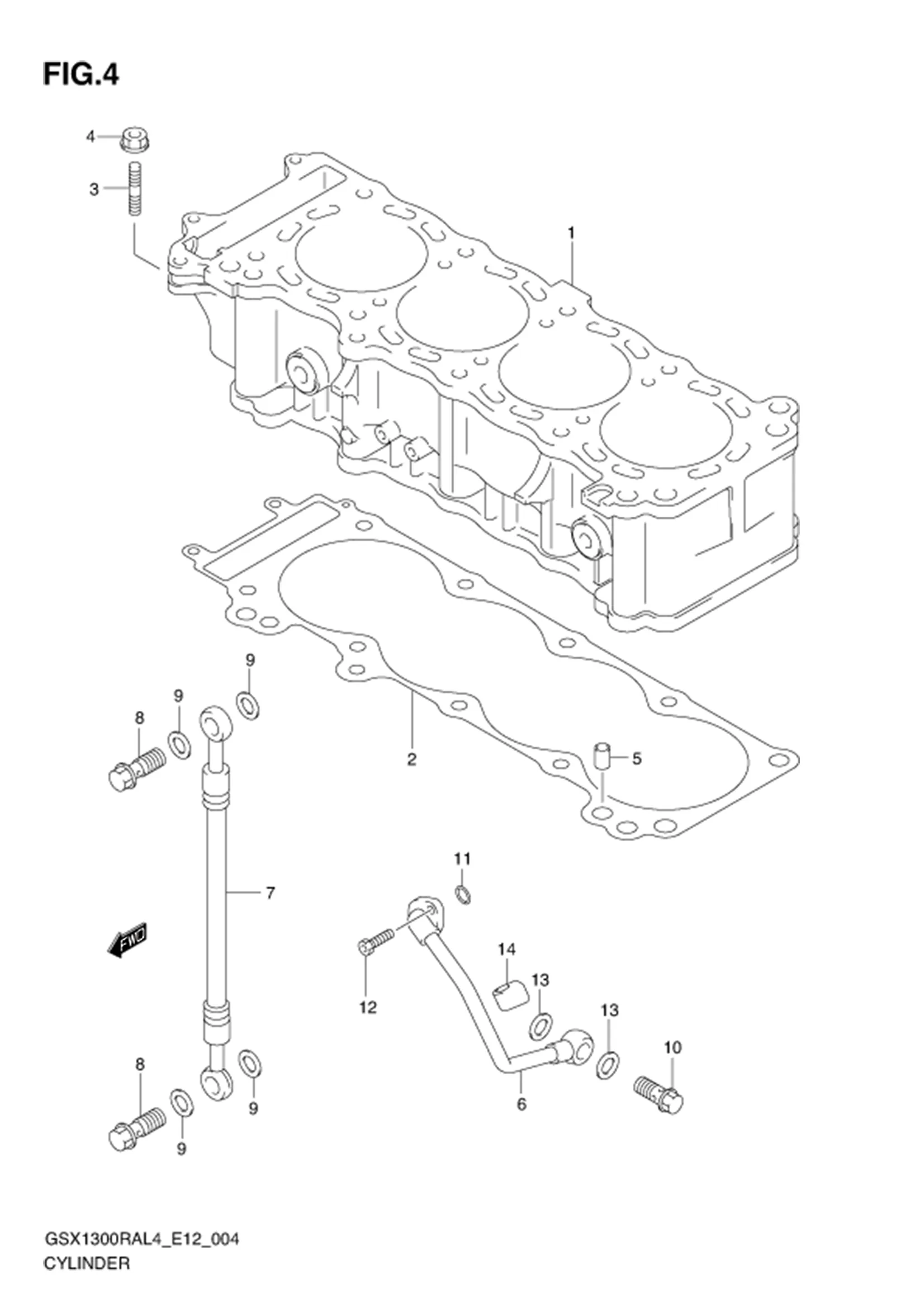

FIG.4 CYLINDER

FIG.4 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11210-15H00-0F0 CYLINDER 1 Rp13.294.000
2 11241-15H00-000 GASKET 1 Rp337.000
3 01421-0625B-000 STUD BOLT 2 Rp7.000
4 08316-1006A-000
SUB: 08316-1006B-000		 NUT 2 Rp2.000
5 04211-11169-000 PIN 2 Rp2.000
6 11280-24F00-000 PIPE, CRANKCASE OIL 1 Rp388.000
7 11282-24F00-000 HOSE, OIL 1 Rp578.500
8 09360-10062-000 UNION 2 Rp13.000
9 DISCONTINUE
SUB: 09168-10007-000		 GASKET (10.1X16X1) 4 -
10 DISCONTINUE
SUB: 09360-14012-000		 UNION 1 -
11 09280-12012-000 O RING (D:2.4,ID:11.8) 1 Rp27.000
12 09106-06073-000 BOLT (6X16) 2 Rp19.000
13 09168-14015-000 GASKET (14X20X1.5) 2 Rp7.500
14 11283-24F00-000 CUSHION, CRANKCASE OIL PIPE 1 Rp42.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
