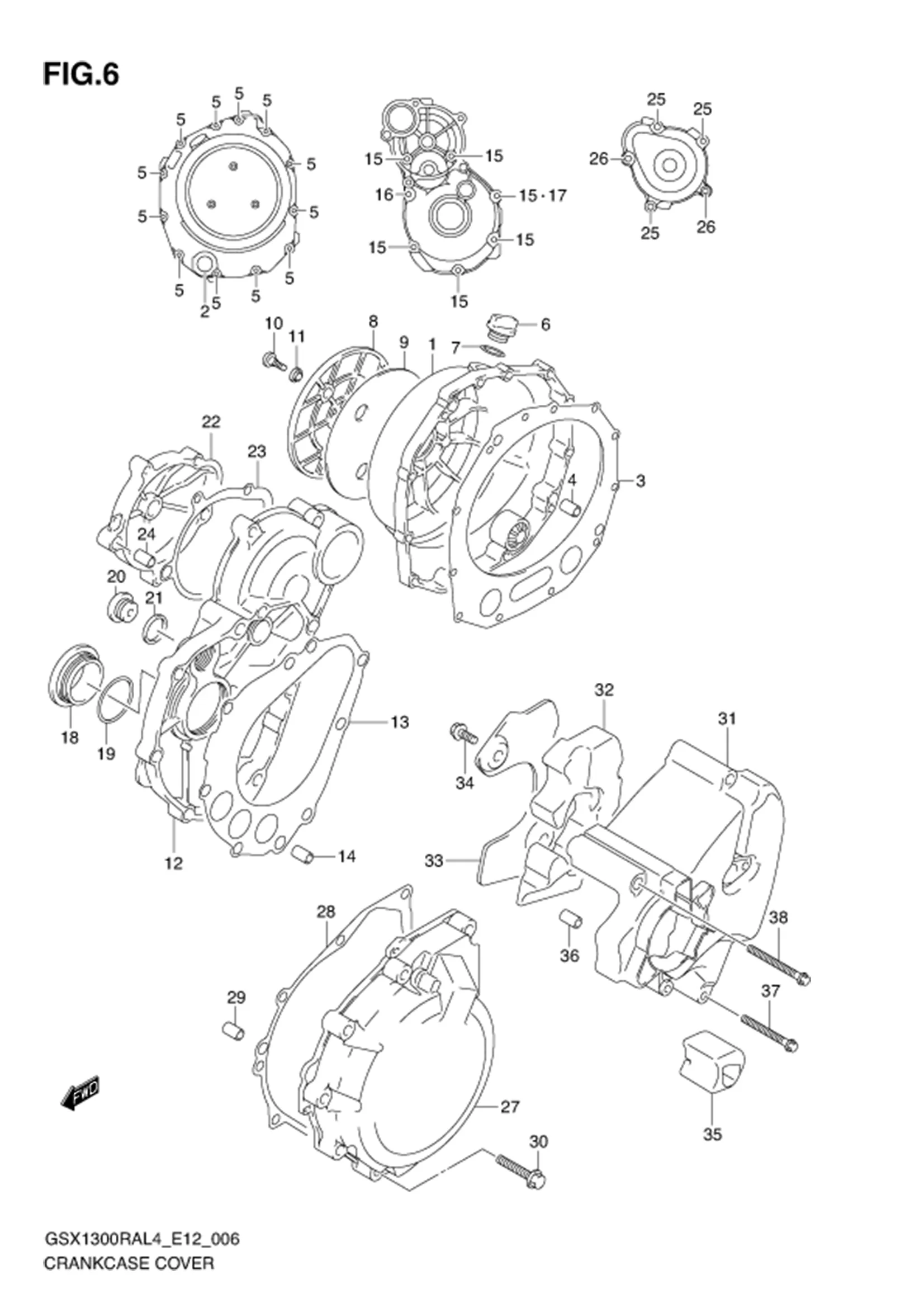

FIG.6 CRANKCASE COVER

FIG.6 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11340-24F01-000 COVER, CLUTCH 1 Rp2.267.000
2 11971-33210-000 ?LENS, OIL LEVEL 1 Rp120.000
3 11482-24F00-000 GASKET, CLUTCH COVER 1 Rp124.000
4 04211-09189-000 PIN 2 Rp10.500
5 09103-06213-000 BOLT (6X30) 12 Rp19.000
6 11971-25D00-000 PLUG, ENGINE OIL FILLER 1 Rp36.500
7 09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000
8 11371-24F00-000 COVER, CLUTCH OUTER 1 Rp476.000
9 11372-24F00-000 CUSHION, CLUTCH OUTER COVER 1 Rp83.000
10 09139-06107-000 SCREW (6X16) 3 Rp28.500
11 11373-24F00-000 WASHER, CL OUTER COVER SCREW 3 Rp28.500
12 11380-24F20-000 COVER, STARTER CLUTCH 1 Rp1.431.000
13 11491-24F01-000 GASKET, STARTER CLUTCH COVER 1 Rp66.000
14 04211-09149-000 PIN 2 Rp3.000
15 09103-06212-000 BOLT (6X25) 6 Rp19.000
16 09103-06214-000 BOLT (6X35) 1 Rp19.000
17 09168-06023-000 GASKET (5.8X13X1.2) 1 Rp13.500
18 09259-36021-000 PLUG (36X10) 1 Rp94.500
19 09280-33004-000 O RING (D:3.1,ID:32.7) 1 Rp12.500
20 09248-16012-000 PLUG (16X8) 1 Rp31.500
21 09168-16002-000 GASKET (16X22X2) 1 Rp13.000
22 11382-24F20-000 CAP, STARTER IDLE GEAR 1 Rp514.000
23 11492-24F00-000 GASKET, STARTER IDLE GEAR CAP 1 Rp48.000
24 04211-09149-000 PIN 2 Rp3.000
25 09103-06212-000 BOLT (6X25) 3 Rp19.000
26 09103-06214-000 BOLT (6X35) 2 Rp19.000
27 DISCONTINUE
SUB: 11351-24F00-000		 COVER, MAGNETO 1 -
28 DISCONTINUE
SUB: 11483-24F00-000		 GASKET, MAGNETO COVER 1 -
29 04211-09149-000 PIN 2 Rp3.000
30 09103-06213-000 BOLT (6X30) 9 Rp19.000
31 11361-15H00-000 COVER, ENGINE SPROCKET 1 Rp1.026.500
32 11362-15H00-000 DAMPER, ENGINE SPROCKET COVER 1 Rp113.500
33 11363-15H00-000 PLATE, ENGINE SPROCKET COVER 1 Rp87.000
34 09103-06172-000 BOLT (6X12) 2 Rp14.500
35 11364-15H00-000 PROTECTOR, ENGINE SPRKT COVER 1 Rp44.500
36 04211-09149-000 PIN 2 Rp3.000
37 09103-06216-000 BOLT (6X55) 2 Rp21.000
38 09103-06239-000 BOLT (6X65) 2 Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
