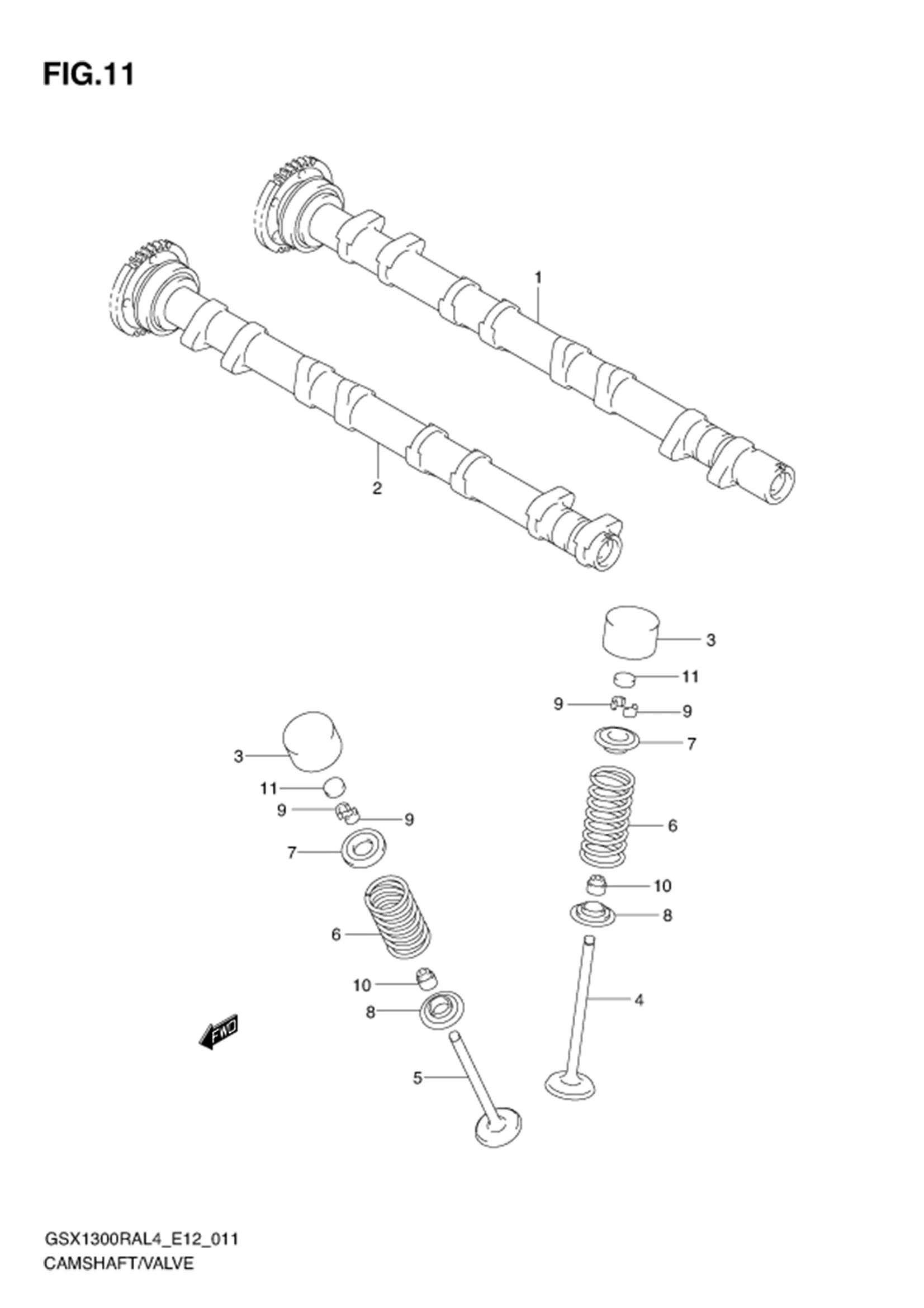

FIG.11 CAMSHAFT/VALVE

FIG.11 CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-15H00-000 CAMSHAFT, INTAKE 1 Rp3.348.000
2 12720-15H00-000 CAMSHAFT, EXHAUST 1 Rp3.348.000
3 12891-02F10-000
SUB: 12891-02F00-000		 TAPPET 16 Rp437.500
4 12911-15H01-000
SUB: 12911-15H00-000		 VALVE, INTAKE 8 Rp679.000
5 12912-15H00-000 VALVE, EXHAUST 8 Rp881.500
6 12921-15H00-000 SPRING, VALVE 16 Rp103.500
7 12931-02F10-000 RETAINER, VALVE SPRING 16 Rp93.500
8 12933-38400-000 SEAT, VALVE SPRING 16 Rp40.000
9 12932-24F00-000 COTTER, VALVE 32 Rp15.000
10 09289-05011-000 OIL SEAL (5X10X9.7) 16 Rp40.500
11-14 12892-41C00-295 SHIM, TAPPET (T:2.95) 16 Rp66.000
11-9 12892-41C00-270 SHIM, TAPPET (T:2.70) 16 Rp66.000
11-15 12892-41C00-300 SHIM, TAPPET (T:3.00) 16 Rp65.000
11-16 12892-41C00-305 SHIM, TAPPET (T:3.05) 16 Rp66.000
11-17 12892-41C00-310 SHIM, TAPPET (T:3.10) 16 Rp66.000
11-18 12892-41C00-315 SHIM, TAPPET (T:3.15) 16 Rp66.000
11-19 12892-41C00-320 SHIM, TAPPET (T:3.20) 16 Rp66.000
11-20 12892-41C00-325 SHIM, TAPPET (T:3.25) 16 Rp66.000
11-21 12892-41C00-330 SHIM, TAPPET (T:3.30) 16 Rp66.000
11-22 12892-41C00-335 SHIM, TAPPET (T:3.35) 16 Rp66.000
11-23 12892-41C00-340 SHIM, TAPPET (T:3.40) 16 Rp66.000
11-24 12892-41C00-345 SHIM, TAPPET (T:3.45) 16 Rp66.000
11-25 12892-41C00-350 SHIM, TAPPET (T:3.50) 16 Rp66.000
11-13 12892-41C00-290 SHIM, TAPPET (T:2.90) 16 Rp66.000
11-12 12892-41C00-285 SHIM, TAPPET (T:2.85) 16 Rp66.000
11-11 12892-41C00-280 SHIM, TAPPET (T:2.80) 16 Rp66.000
11-10 12892-41C00-275 SHIM, TAPPET (T:2.75) 16 Rp66.000
11-8 12892-41C00-265 SHIM, TAPPET (T:2.65) 16 Rp66.000
11-7 12892-41C00-260 SHIM, TAPPET (T:2.60) 16 Rp66.000
11-6 12892-41C00-255 SHIM, TAPPET (T:2.55) 16 Rp66.000
11-5 12892-41C00-250 SHIM, TAPPET (T:2.50) 16 Rp66.000
11-4 12892-41C00-245 SHIM, TAPPET (T:2.45) 16 Rp66.000
11-3 12892-41C00-240 SHIM, TAPPET (T:2.40) 16 Rp65.000
11-2 12892-41C00-235 SHIM, TAPPET (T:2.35) 16 Rp65.000
11-1 12892-41C00-230 SHIM, TAPPET (T:2.30) 16 Rp65.000
12 12800-41810-000 SHIM SET, TAPPET T:250, 255...3.45, 3.50 (5PCS.EACH) & CASE 1 Rp7.924.000 OPT,NOT ILLUSTRATED
13 99000-69471-000 ?CASE, TAPPET SHIM 1 Rp1.448.500 OPT,NOT ILLUSTRATED

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
