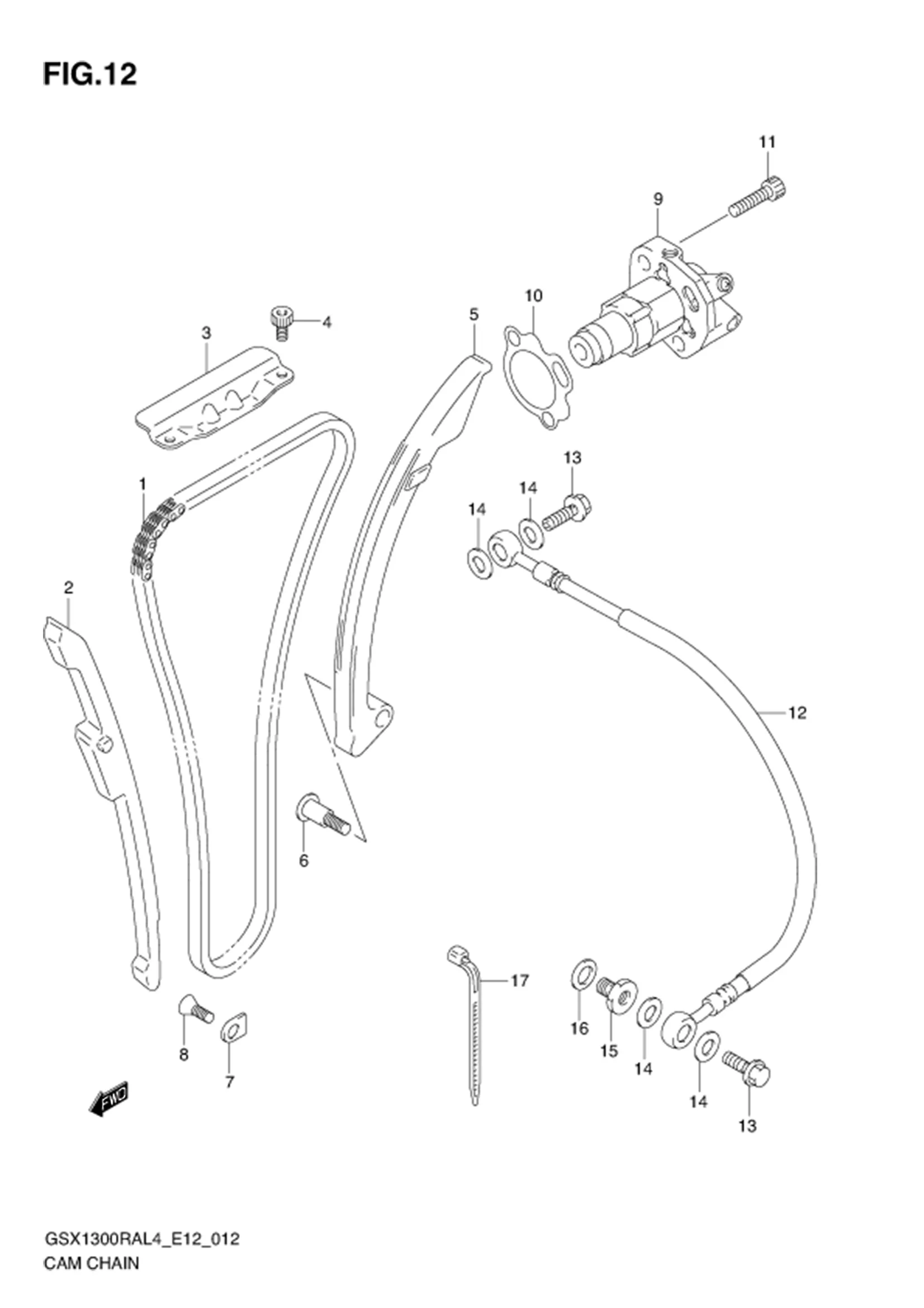

FIG.12 CAM CHAIN

FIG.12 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12760-24F01-000 CHAIN, CAM SHAFT DRIVE (128LE) 1 Rp1.035.000
2 12771-15H00-000 GUIDE, CAM CHAIN NO.1 1 Rp337.500
3 12782-24F01-000 GUIDE, CAM CHAIN NO.2 1 Rp287.000
4 07130-0612A-000 BOLT 2 Rp3.500
5 12811-15H00-000 TENSIONER, CAM CHAIN 1 Rp441.000
6 12812-31G00-000 BOLT 1 Rp31.500
7 12773-24F00-000 RETAINER, CAM CHAIN GUIDE NO.1 1 Rp24.500
8 02122-0612A-000 SCREW 1 Rp3.500
9 12830-15H00-000 ADJUSTER ASSY, TENSIONER 1 Rp1.583.500
10 12837-02H00-000 GASKET, TENSIONER ADJUSTER 1 Rp43.000
11 07130-0625A-000 BOLT 2 Rp3.500
12 12835-15H00-000 HOSE, CAM CHAIN TENSIONER 1 Rp660.500
13 12838-15H00-000 BOLT 2 Rp44.000
14 09168-08034-000 GASKET (7.8X13.5X1.2) 4 Rp16.000
15 12839-15H00-000 PLUG 1 Rp90.000
16 09168-14002-000 GASKET (13.8X18.8X4.8) 1 Rp14.000
17 09407-18402-000 CLAMP (L:165) 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
