Hayabusa

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 GASKET SETFIG.2 CYLINDER HEAD COVERFIG.3 CYLINDER HEADFIG.4 CYLINDERFIG.5 CRANKCASEFIG.6 CRANKCASE COVERFIG.7 OIL PAN/OIL PUMPFIG.8 CRANKSHAFTFIG.9 STARTER CLUTCHFIG.10 CRANK BALANCERFIG.11 CAMSHAFT/VALVEFIG.12 CAM CHAINFIG.13 THROTTLE BODYFIG.14 THROTTLE BODY HOSE/JOINTFIG.15 AIR CLEANERFIG.16 MUFFLERFIG.17 OIL COOLERFIG.18 FUEL PUMPFIG.19 WATER PUMPFIG.20 RADIATORFIG.21 RADIATOR HOSEFIG.22 2ND AIRFIG.23 CLUTCHFIG.24 TRANSMISSIONFIG.25 GEAR SHIFTING

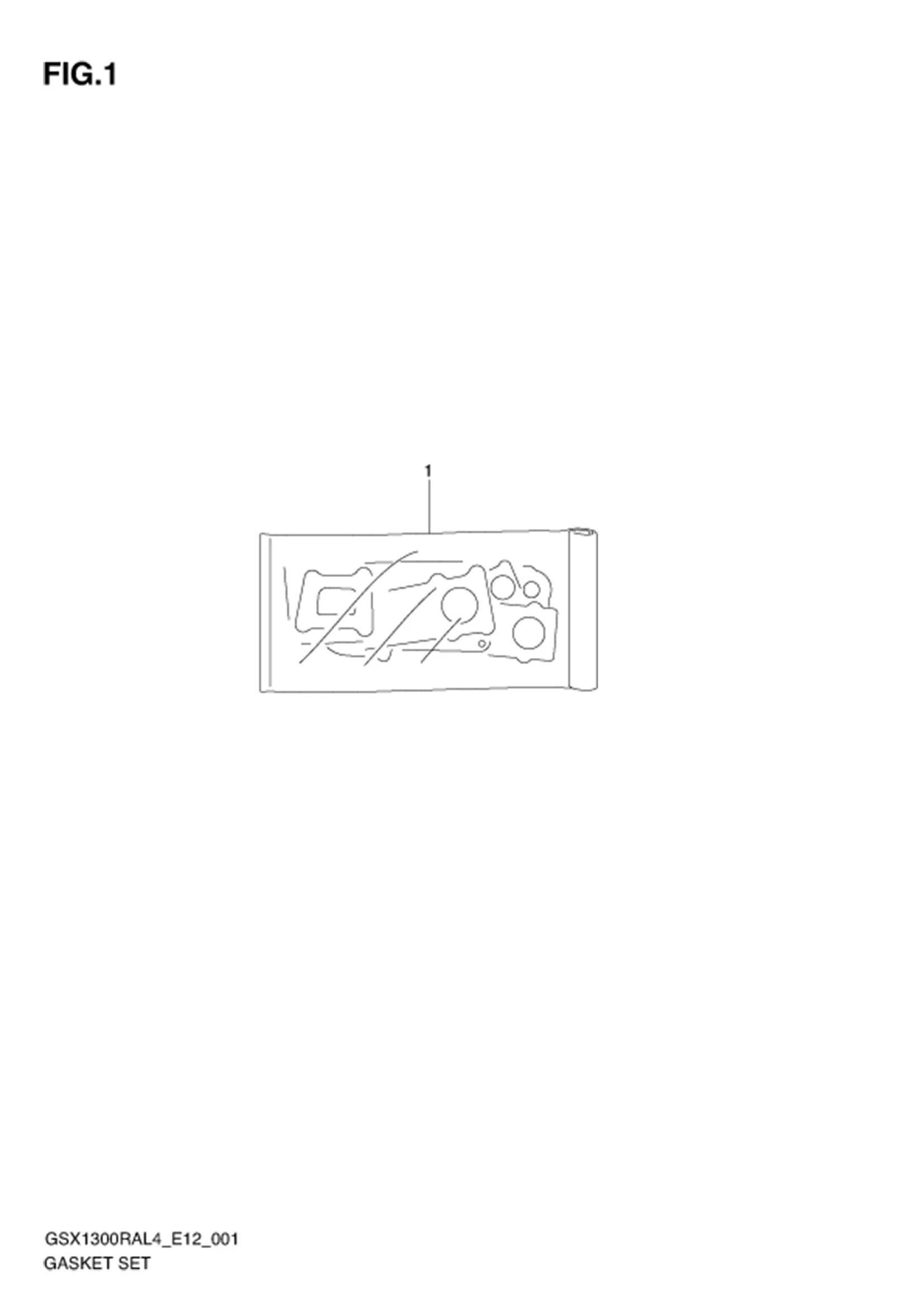

FIG.1 GASKET SET

FIG.1 GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
1 11400-15881-000 GASKET SET 1 Rp2.339.000 OPT
2 11141-15H00-000 ?GASKET, CYLINDER HEAD 1 Rp645.000 NOT ILLUSTRATED
3 11173-24F00-000 ?GASKET, CYLINDER HEAD COVER NO.1 1 Rp337.000 NOT ILLUSTRATED
4 11178-15H00-000 ?GASKET, CYLINDER HEAD COVER NO.2 1 Rp97.500 NOT ILLUSTRATED
5 11241-15H00-000 ?GASKET, CYLINDER 1 Rp337.000 NOT ILLUSTRATED
6 11482-24F00-000 ?GASKET, CLUTCH COVER (NA) 1 Rp124.000 NOT ILLUSTRATED
7 DISCONTINUE
SUB: 11483-24F00-000		 ?GASKET, MAGNETO COVER 1 - NOT ILLUSTRATED
8 11485-24F00-000 ?GASKET, GEAR SHIFT COVER (NA) 1 Rp44.000 NOT ILLUSTRATED
9 11489-24F10-000 ?GASKET, OIL PAN 1 Rp117.500 NOT ILLUSTRATED
10 11491-24F01-000 ?GASKET, STARTER CLUTCH COVER 1 Rp66.000 NOT ILLUSTRATED
11 11492-24F00-000 ?GASKET, START IDLE GEAR CAP 1 Rp48.000 NOT ILLUSTRATED
12 12837-02H00-000 ?GASKET, TENSIONER ADJUSTER 1 Rp43.000 NOT ILLUSTRATED
13 DISCONTINUE
SUB: 14181-22D01-000		 ?GASKET, EXHAUST PIPE 4 - NOT ILLUSTRATED
14 11191-27E00-000 ?WASHER 6 Rp30.500 NOT ILLUSTRATED

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
