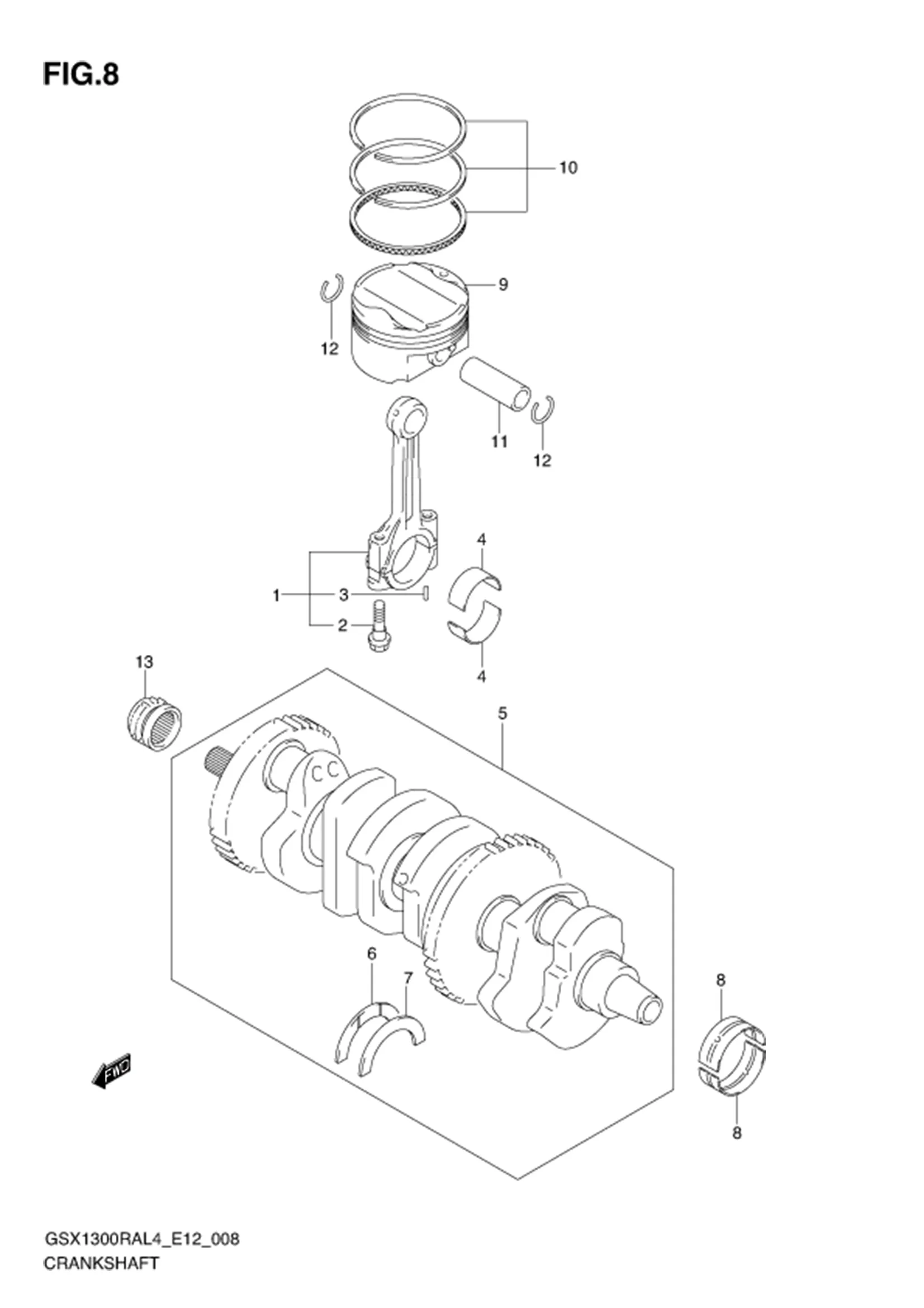

FIG.8 CRANKSHAFT

FIG.8 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12160-15H00-000 ROD ASSY, CONNECTING 4 Rp1.408.500
2 12163-24F10-000 ?BOLT 8 Rp117.500
3 04221-04089-000 ?PIN 8 Rp3.500
4-1 12164-46E01-0A0 BEARING, CRANK PIN (GREEN) 8 Rp128.500
4-2 12164-46E01-0B0 BEARING, CRANK PIN (BLACK) 8 Rp128.500
4-3 12164-46E01-0C0 BEARING, CRANK PIN (BROWN) 8 Rp128.500
4-4 12164-46E01-0D0 BEARING, CRANK PIN (YELLOW) 8 Rp128.500
5 12000-15810-000 CRANKSHAFT SET 1 Rp17.859.000
6 12228-24F00-0D0 ?BEARING, THRUST RH (GREEN) 1 Rp68.500
7-4 12228-24F00-0D0 ?BEARING, THRUST LH (GREEN) 1 Rp68.500
7-6 12228-24F00-0F0 ?BEARING, THRUST LH (WHITE) 1 Rp68.500
7-5 12228-24F00-0E0 ?BEARING, THRUST LH (YELLOW) 1 Rp68.500
7-3 12228-24F00-0C0 ?BEARING, THRUST LH (BLUE) 1 Rp68.500
7-2 12228-24F00-0B0 ?BEARING, THRUST LH (BLACK) 1 Rp68.500
7-1 12228-24F00-0A0 ?BEARING, THRUST LH (RED) 1 Rp68.500
8-1 12229-15H00-0A0 BEARING, CRANKSHAFT (GREEN) 10 Rp100.500
8-2 12229-15H00-0B0 BEARING, CRANKSHAFT (BLACK) 10 Rp100.500
8-3 12229-15H00-0C0 BEARING, CRANKSHAFT (BROWN) 10 Rp100.500
8-4 12229-15H00-0D0 BEARING, CRANKSHAFT (YELLOW) 10 Rp100.500
8-5 12229-15H00-0E0 BEARING, CRANKSHAFT (BLUE) 10 Rp100.500
9 12111-15H00-0F0 PISTON 4 Rp1.246.000
10 12140-15H10-000 RING SET, PISTON 4 Rp579.000
11 DISCONTINUE
SUB: 12151-07D00-000		 PIN, PISTON 4 -
12 DISCONTINUE
SUB: 09381-18003-000		 CIRCLIP 8 -
13 12731-24F10-000 SPROCKET, CAM CHAIN 1 Rp338.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
