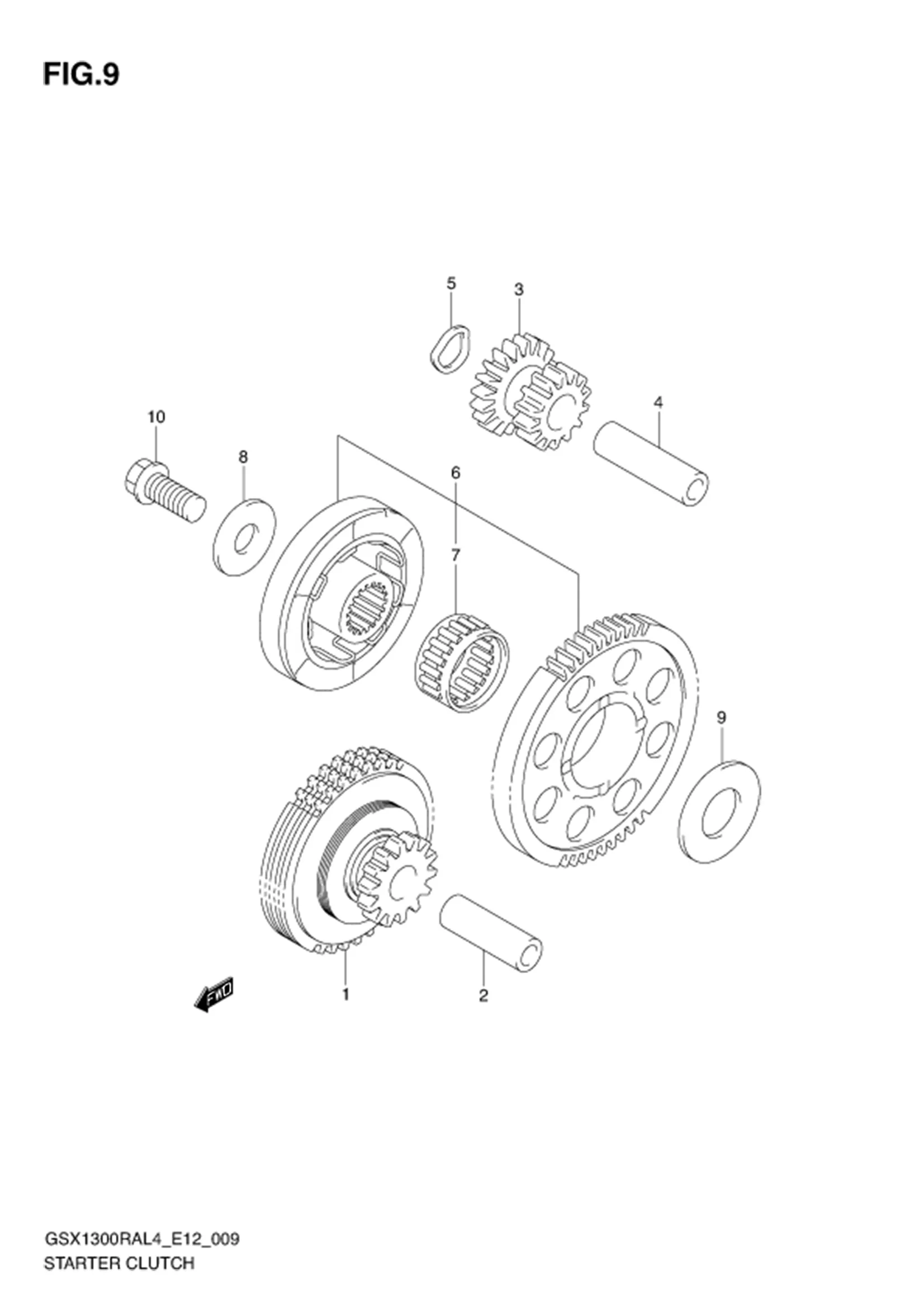

FIG.9 STARTER CLUTCH

FIG.9 STARTER CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 12600-24F00-000 LIMITER ASSY, STARTER IDLE GEAR NO.1 1 Rp1.540.000
2 12615-24F00-000 PIN, STARTER IDLE GEAR NO.1 1 Rp72.000
3 12612-24F00-000 GEAR, STARTER IDLE NO.2 (NT:14/17) 1 Rp405.000
4 12151-05200-000 PIN 1 Rp70.000
5 09164-14008-000 WASHER 1 Rp19.500
6 12600-24861-000 CLUTCH, STARTER ONE WAY (NT:44) 1 Rp2.723.500
7 09263-28031-000 ?BEARING (28X34X16.8) 1 Rp282.500
8 08211-10285-000 WASHER 1 Rp11.500
9 08211-20403-000 WASHER 1 Rp31.000
10 09103-10189-000 BOLT (10X23) 1 Rp29.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
