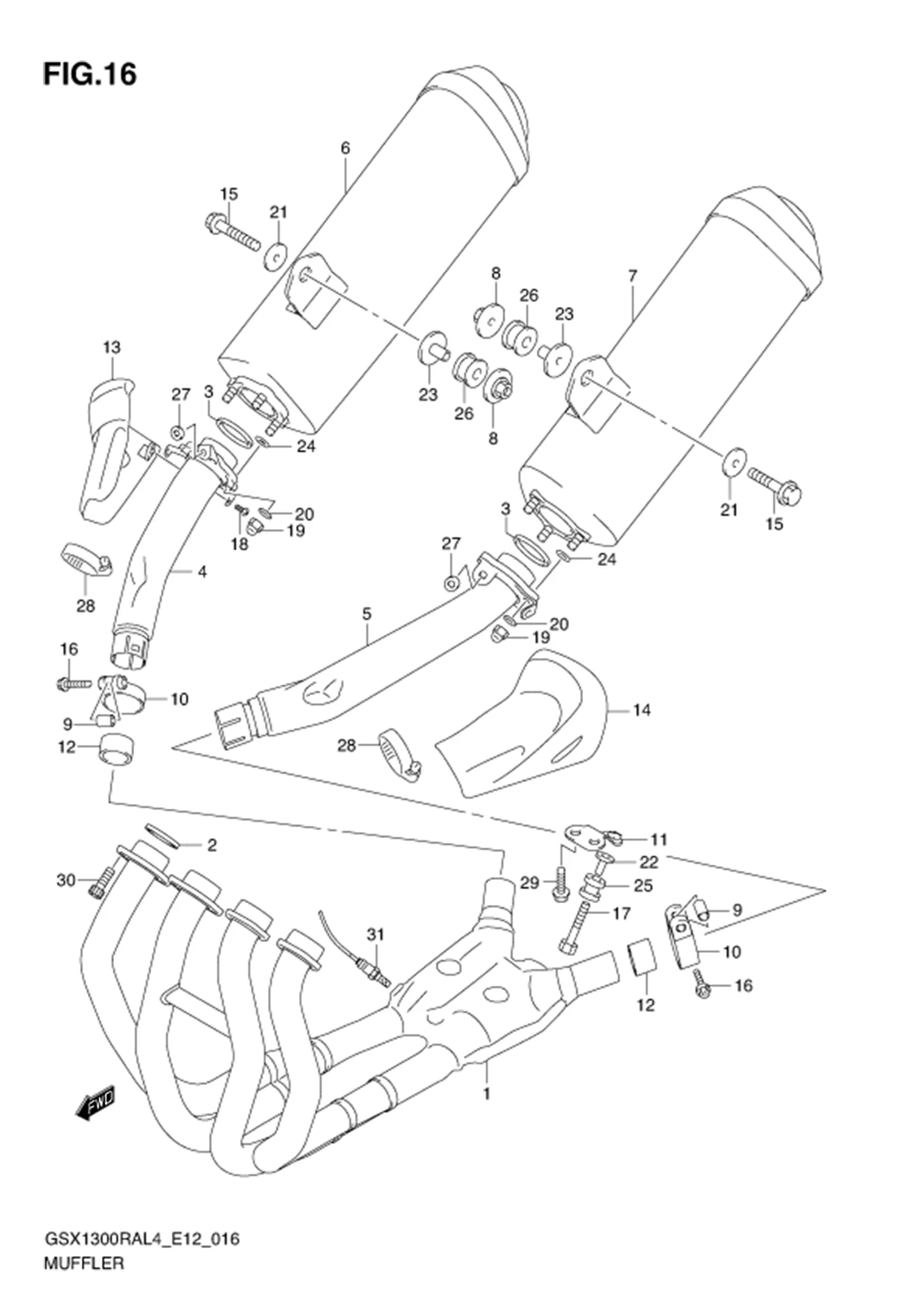

FIG.16 MUFFLER

FIG.16 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14100-15H02-000 PIPE, EXHAUST 1 Rp20.066.000
2 DISCONTINUE
SUB: 14181-22D01-000		 GASKET 4 -
3 DISCONTINUE
SUB: 14181-33E00-000		 GASKET, JOINT 2 -
4 14230-15H00-000 PIPE, JOINT RH 1 Rp3.358.500
5 14240-15H00-000 PIPE, JOINT LH 1 Rp3.358.500
6 14310-15H03-H01 BODY, MUFFLER RH 1 Rp17.125.000
7 14340-15H03-H01 BODY, MUFFLER LH 1 Rp17.125.000
8 14414-15H00-000 NUT 2 Rp43.500
9 14458-45G10-000 SPACER 2 Rp51.500
10 14459-15H00-000 CLAMP 2 Rp198.000
11 14770-15H00-000 BRACKET 1 Rp764.500
12 DISCONTINUE
SUB: 14771-15H00-000		 CONNECTOR 2 -
13 14780-15H00-000 COVER, FRONT RH 1 Rp1.934.500
14 14790-15H00-000 COVER, FRONT LH 1 Rp1.761.500
15 09103-08358-000 BOLT (8X45) 2 Rp24.500
16 09103-08392-000 BOLT (8X40) 2 Rp26.500
17 09118-08152-A05 BOLT (8X45) 1 Rp36.500
18 09139-06027-000 SCREW (6X12) 2 Rp17.500
19 09159-08116-000 NUT 6 Rp56.500
20 09160-08059-000 WASHER (8.5X18X1.6) 6 Rp10.500
21 09160-08142-000 WASHER (8.5X28X1.5) 2 Rp21.000
22 09180-08152-000 SPACER (8.6X12X24.2) 1 Rp40.000
23 09180-08216-000 SPACER (8.6X12X25) 2 Rp53.500
24 09280-08012-000 O RING (D:1.9,ID:7.8) 6 Rp23.500
25 09320-12078-000
SUB: 09320-12048-000		 CUSHION 1 Rp18.000
26 09320-12049-000 CUSHION 2 Rp70.000
27 09321-10018-000 CUSHION 4 Rp31.500
28 09402-70503-000 CLAMP 2 Rp91.500
29 01550-0816A-000 BOLT 2 Rp6.000
30 07130-0825A-000 BOLT 8 Rp4.000
31 18213-15H10-000 SENSOR, OXYGEN 1 Rp2.466.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
