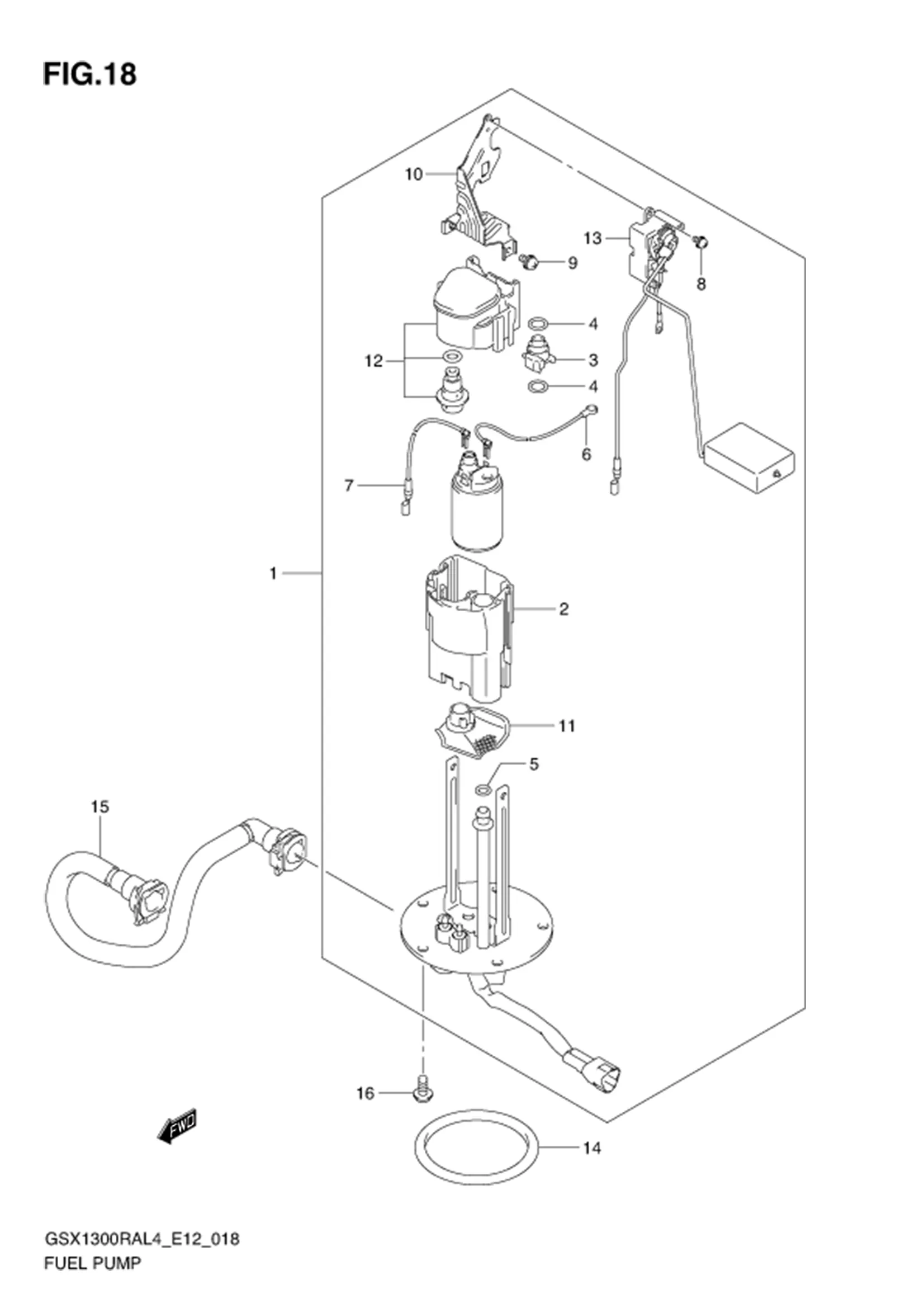

FIG.18 FUEL PUMP

FIG.18 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-15H11-000
SUB: 15100-15H10-000		 PUMP ASSY, FUEL 1 Rp6.438.000
2 15111-27G00-000 ?CUP, RESERVOIR 1 Rp227.500
3 15112-05H00-000 ?JOINT 1 Rp179.500
4 15113-05H00-000 ?O RING 2 Rp147.000
5 15113-35F00-000 ?O RING 1 Rp62.000
6 15114-14J00-000 ?WIRE, EARTH 1 Rp132.500
7 15115-08J00-000 ?WIRE, LEAD 1 Rp139.000
8 15116-10F00-000 ?SCREW 1 Rp35.500
9 15116-10F00-000 ?SCREW 3 Rp35.500
10 15181-15H10-000 ?BRACKET, GAUGE 1 Rp274.000
11 15420-05H00-000 ?STRAINER 1 Rp296.500
12 15610-14J00-000 ?REGULATOR 1 Rp1.105.000
13 34810-15H10-000 ?GAUGE ASSY, FUEL LEVEL 1 Rp1.266.000
14 15201-35F00-000 O RING 1 Rp181.500
15 15810-15H10-000 HOSE, FUEL 1 Rp437.000
16 07120-0612A-000 BOLT 5 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
