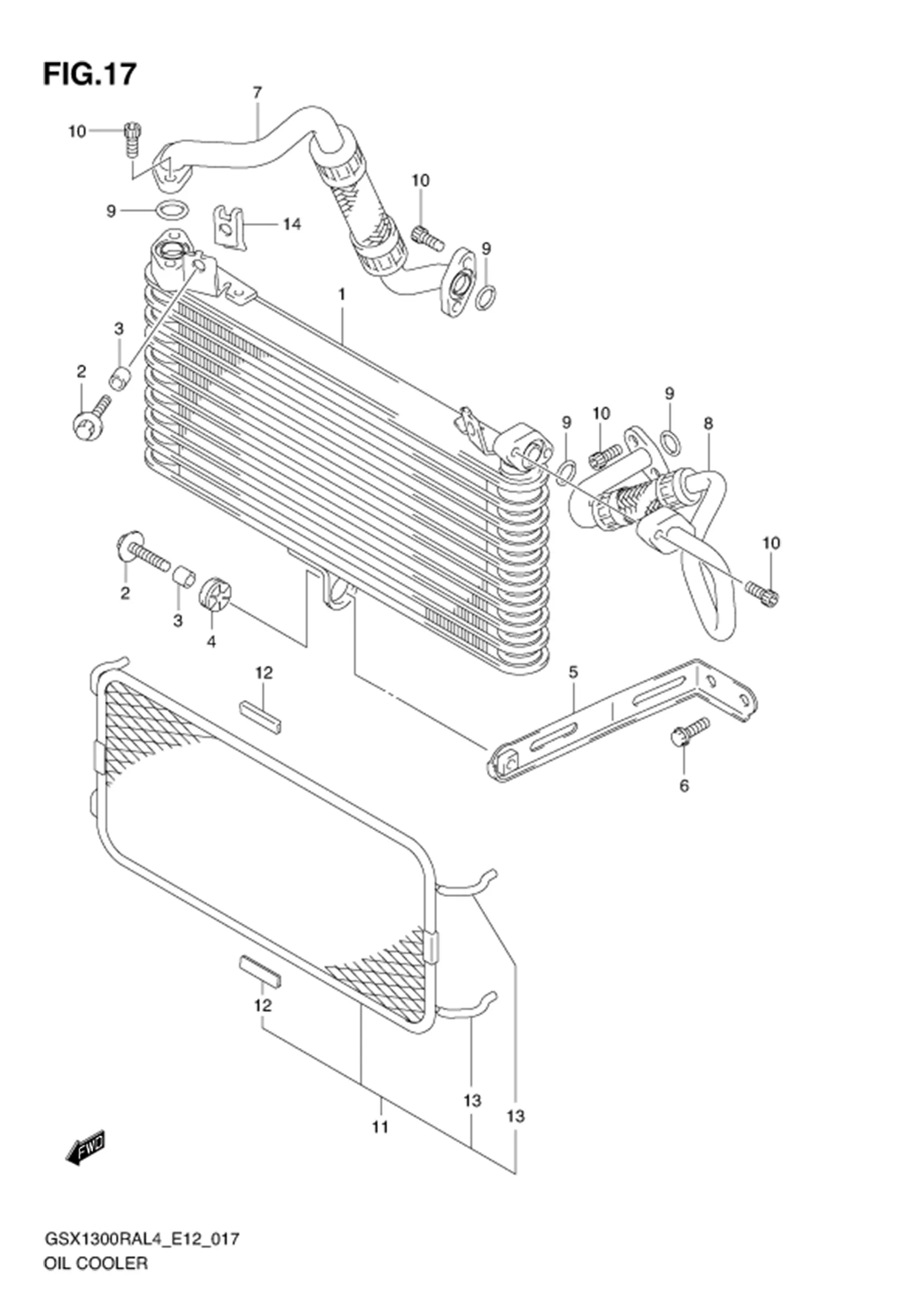

FIG.17 OIL COOLER

FIG.17 OIL COOLER
No No. Part Description Qty Price Per Pcs Remarks
1 16600-15H20-000 COOLER ASSY, OIL 1 Rp7.174.500
2 09118-06097-000 BOLT (6X25) 3 Rp21.000
3 DISCONTINUE
SUB: 09180-06290-000		 SPACER (6.5X10X12) 3 -
4 09320-10051-000 CUSHION 1 Rp23.500
5 16640-24F00-000 BRACKET, OIL COOLER 1 Rp67.000
6 01550-0612A-000 BOLT 2 Rp3.500
7 16460-15H00-000 HOSE, OIL COOLER RH 1 Rp1.066.500
8 16470-15H00-000 HOSE, OIL COOLER LH 1 Rp1.066.500
9 09280-15015-000 O RING (D:2.4,ID:16) 4 Rp30.500
10 09106-06073-000 BOLT (6X16) 8 Rp19.000
11 16650-15H00-000 GUARD, OIL COOLER 1 Rp421.000
12 17765-09F00-000 ?PROTECTOR, CTR 2 Rp24.000
13 DISCONTINUE
SUB: 09352-30503-600		 ?HOSE (3X5X600) 4 - L:600->40
14 17802-14F00-000 NUT 2 Rp25.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
