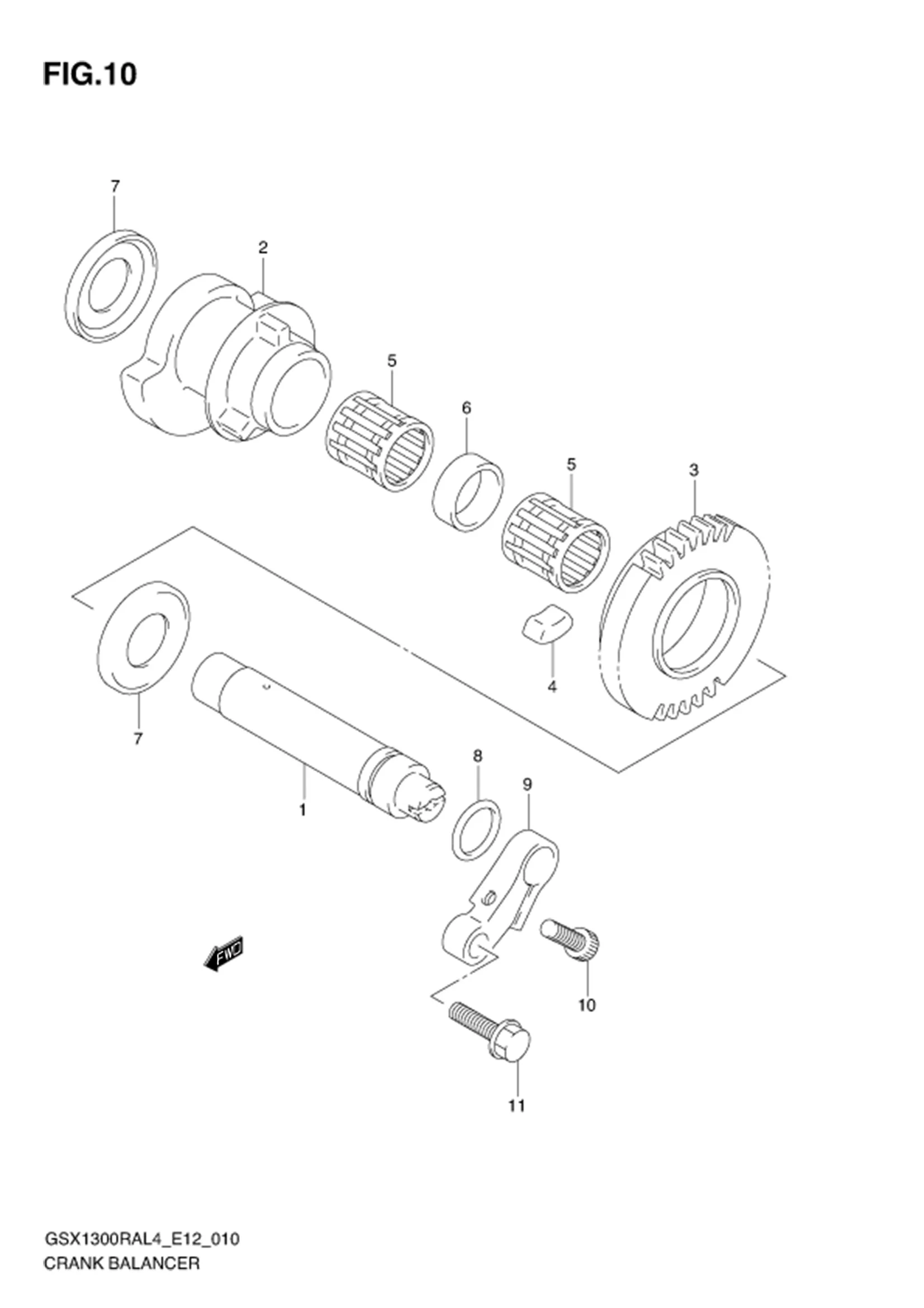

FIG.10 CRANK BALANCER

FIG.10 CRANK BALANCER
No No. Part Description Qty Price Per Pcs Remarks
1 12650-24F01-0F0 SHAFT, CRANK BALANCER 1 Rp1.137.000
2 12654-24F00-0F0 BALANCER, CRANK 1 Rp1.365.000
3 12666-24F00-000 GEAR, CRANK BALANCER (NT:32) 1 Rp1.365.500
4 12686-24F00-000 DAMPER, BALANCER GEAR 6 Rp56.000
5 09263-19015-000 BEARING (19X26X25.2) 2 Rp385.000
6 09180-19014-000 SPACER (19X26X8.6) 1 Rp90.500
7 09169-21001-000 WASHER 2 Rp74.000
8 09280-17007-000 O RING (D:1.9,ID:16.8) 1 Rp31.500 LH
9 12681-26D01-000 ARM, BALANCER SHAFT 1 Rp343.500
10 07130-0620A-000 BOLT 1 Rp16.500
11 DISCONTINUE
SUB: 09103-06286-000		 BOLT (6X20) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
