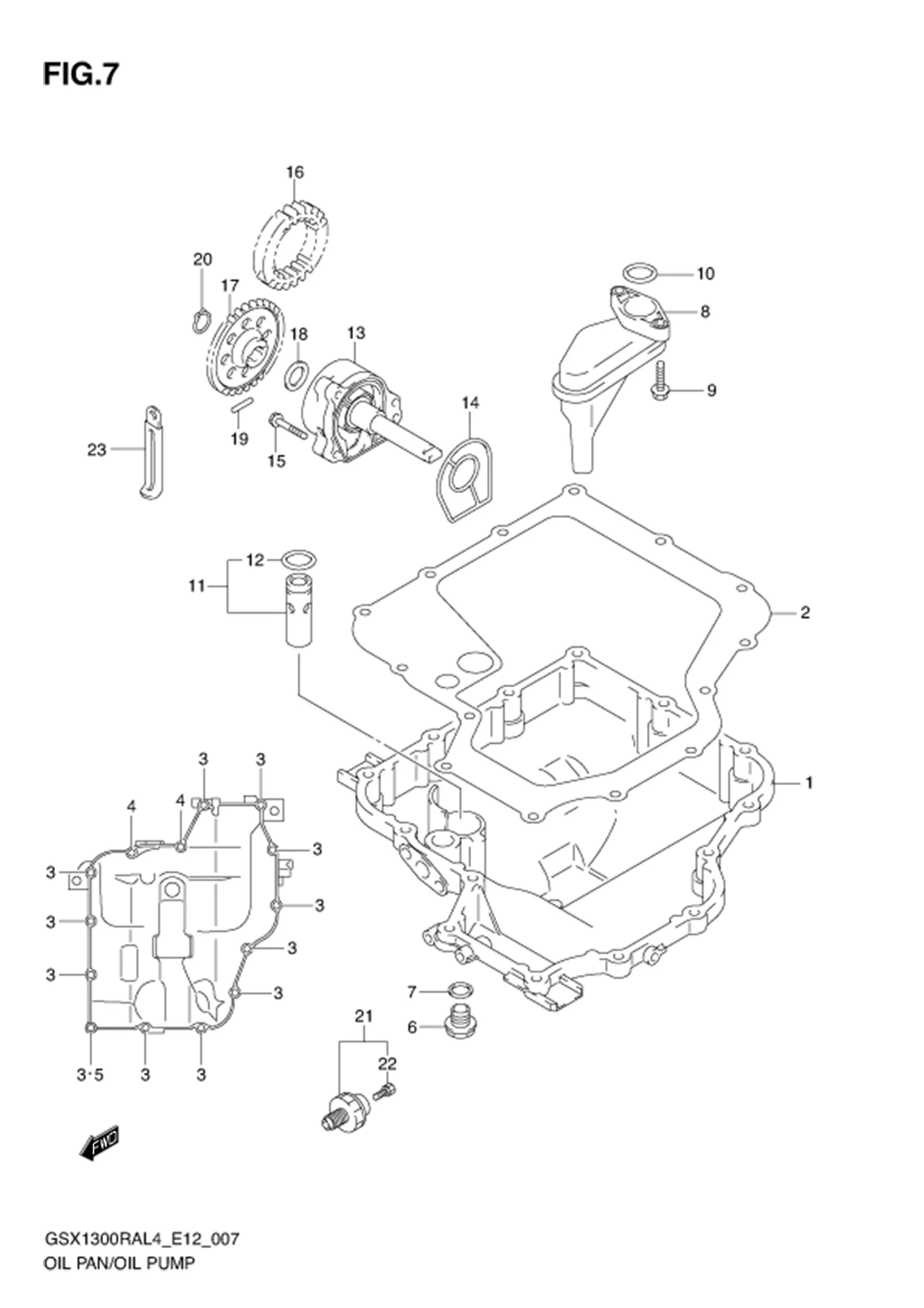

FIG.7 OIL PAN/OIL PUMP

FIG.7 OIL PAN/OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 11511-24F10-000 PAN, OIL 1 Rp1.513.000
2 11489-24F10-000 GASKET, OIL PAN 1 Rp117.500
3 01547-0630A-000 BOLT 12 Rp6.500
4 01547-0640B-000
SUB: 01547-0640A-000		 BOLT 2 Rp7.000
5 09168-06023-000 GASKET (5.8X13X1.2) 1 Rp13.500
6 09247-14036-000 PLUG (14X20) 1 Rp40.500 OIL DRAIN
7 09168-14002-000 GASKET (13.8X18.8X4.8) 1 Rp14.000
8 16520-24F00-000 STRAINER, ENGINE OIL 1 Rp181.500
9 01550-0620A-000 BOLT 2 Rp3.500
10 09280-19008-000 O RING (D:2.62,ID:20.3) 1 Rp36.000
11 DISCONTINUE
SUB: 16440-24F00-000		 VALVE ASSY, OIL RELIEF 1 -
12 09280-13004-000 ?O RING (D:1.9,ID:13) 1 Rp14.000
13 16400-24F01-000 PUMP ASSY, ENGINE OIL 1 Rp1.233.000
14 16491-24F00-000 O RING 1 Rp47.000
15 01547-0630A-000 BOLT 3 Rp6.500
16 16321-33E10-000 GEAR, OIL PUMP DRIVE (NT:34) 1 Rp355.500
17 16331-33E00-000 GEAR, OIL PUMP DRIVEN (NT:37) 1 Rp396.000
18 09181-12158-000 SHIM (12X20X0.5) 1 Rp13.500
19 09261-05006-000 PIN (5X18) 1 Rp13.500
20 08331-3112A-000 CIRCLIP 1 Rp13.000
21 37820-33D10-000 SWITCH ASSY, OIL PRESSURE 1 Rp216.000
22 37822-33D00-000 ?BOLT 1 Rp26.500
23 09404-06429-000 CLAMP (L:45) 2 Rp15.000
