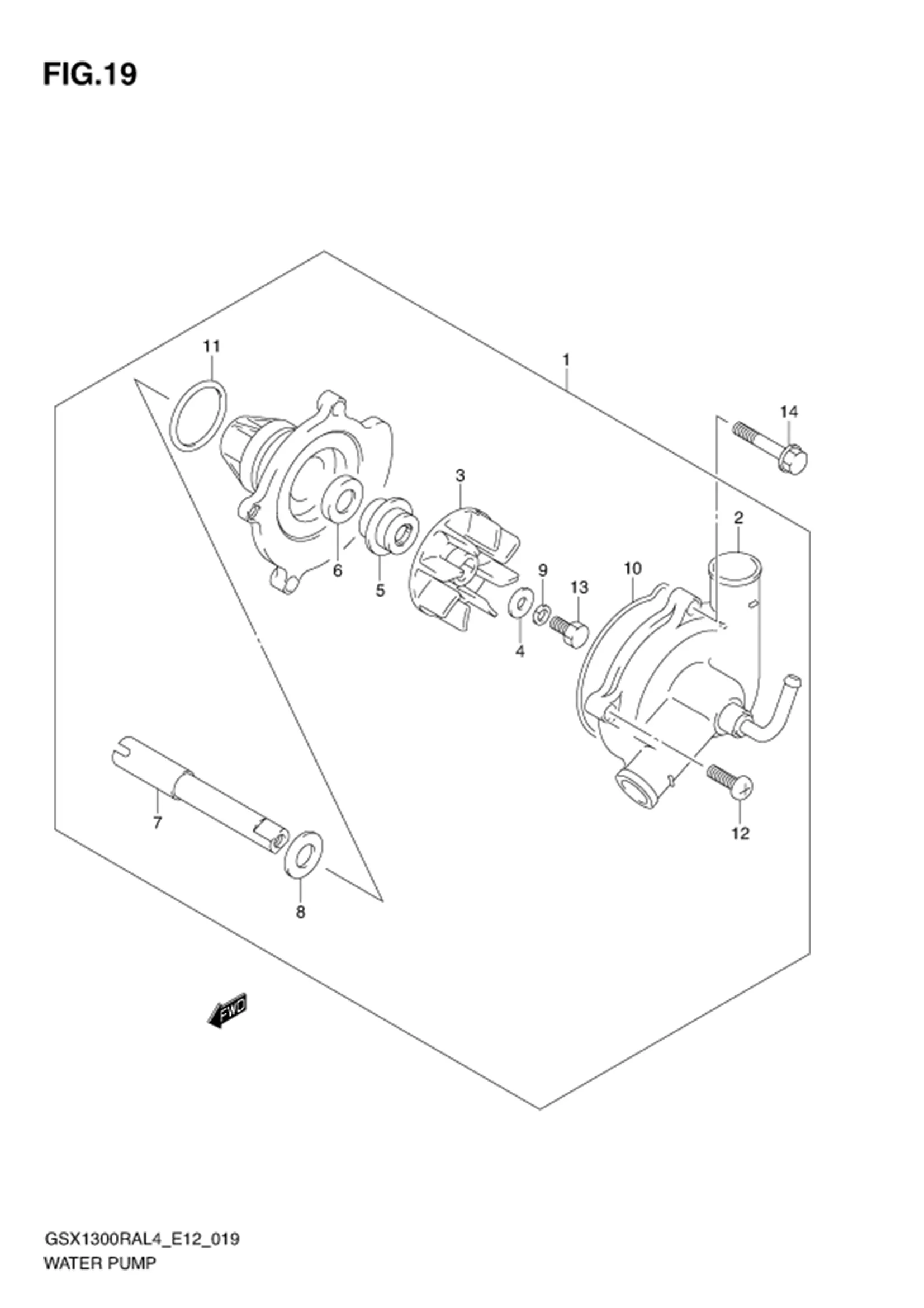

FIG.19 WATER PUMP

FIG.19 WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400-24F10-000 PUMP ASSY, WATER 1 Rp2.272.500
2 17411-24F00-000 ?CASE 1 Rp849.500
3 17491-17E01-000 ?IMPELLER 1 Rp169.000
4 09168-06025-000 ?GASKET (6X15X2.2) 1 Rp21.000
5 17470-02F11-000
SUB: 17470-02F10-000		 ?SEAL, MECHANICAL 1 Rp198.500
6 17461-48G00-000 ?OIL SEAL 1 Rp87.000
7 17511-24F10-000 ?SHAFT 1 Rp623.500
8 17432-07G00-000 ?WASHER 1 Rp20.000
9 DISCONTINUE
SUB: 09164-06006-000		 ?WASHER 1 -
10 17418-33401-000
SUB: 17418-33400-000		 ?O RING 1 Rp28.500
11 17435-33400-000 ?O RING 1 Rp97.000
12 02112-0616A-000 ?SCREW 2 Rp3.500
13 09100-06099-000 ?BOLT (6X13) 1 Rp14.500
14 01547-0635A-000 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
