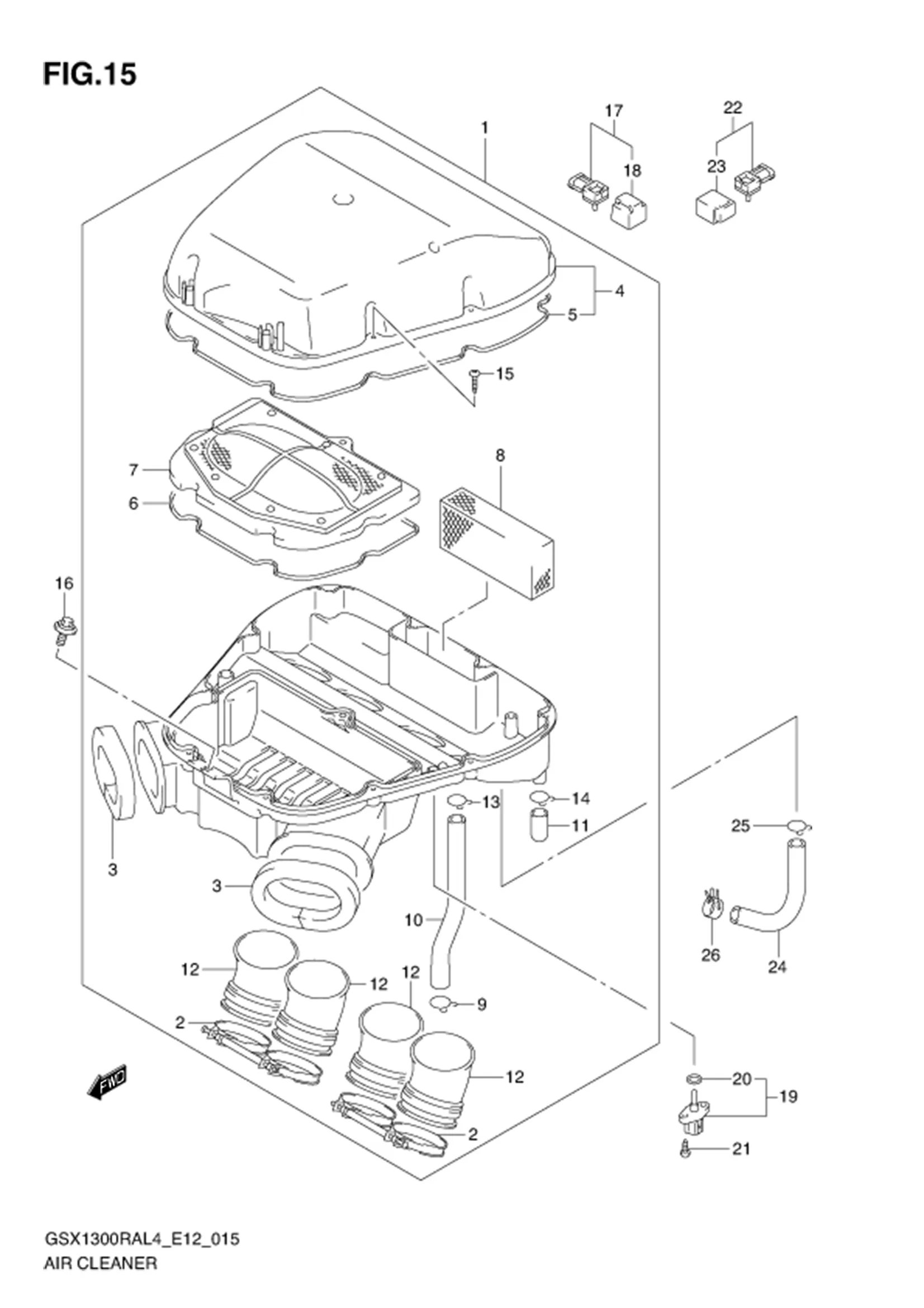

FIG.15 AIR CLEANER

FIG.15 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-15H02-000 CLEANER ASSY, AIR 1 Rp2.622.000
2 13170-15H10-000 ?CLAMP 2 Rp196.000
3 13736-15H01-000 ?CUSHION, DUCT 2 Rp73.000
4 13740-15H00-000 ?CAP, AIR CLEANER 1 Rp572.000
5 13746-15H00-000 ??GASKET, CAP 1 Rp67.500
6 13756-15H00-000 ?GASKET, CASE 1 Rp49.500
7 DISCONTINUE
SUB: 13780-15H00-000		 ?FILTER ASSY 1 -
8 13788-15H00-000 ?FILTER, BREATHER 1 Rp37.000
9 09401-16401-000 ?CLIP 1 Rp21.500
10 13853-15H00-000 ?TUBE, BREATHER 1 Rp76.500
11 13859-41B10-000 ?PLUG 1 Rp44.500
12 13882-41G00-000 ?TUBE, OUTLET 4 Rp172.000
13 09401-14101-000 ?CLIP 1 Rp19.000
14 09401-14101-000 ?CLIP 1 Rp19.000
15 03541-0525A-000 ?SCREW 11 Rp3.500
16 09116-06130-000 BOLT (6X16) 1 Rp16.000
17 15630-29G40-000 SENSOR, BOOST 1 Rp1.485.000
18 15625-29G40-000 ?COVER 1 Rp67.000
19 13650-14G10-000 SENSOR, AIR TEMPERATURE 1 Rp338.000
20 13655-14G10-000 ?O RING 1 Rp53.000
21 03511-0516A-000 SCREW 2 Rp5.500
22 15630-29G30-000 SENSOR, AIR PRESSURE 1 Rp1.635.000
23 15625-29G30-000 ?COVER 1 Rp74.000
24 13697-15H00-000 HOSE, ISC VALVE 1 Rp79.000
25 09401-15101-000 CLIP 1 Rp3.000
26 09401-16403-000 CLIP 1 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
