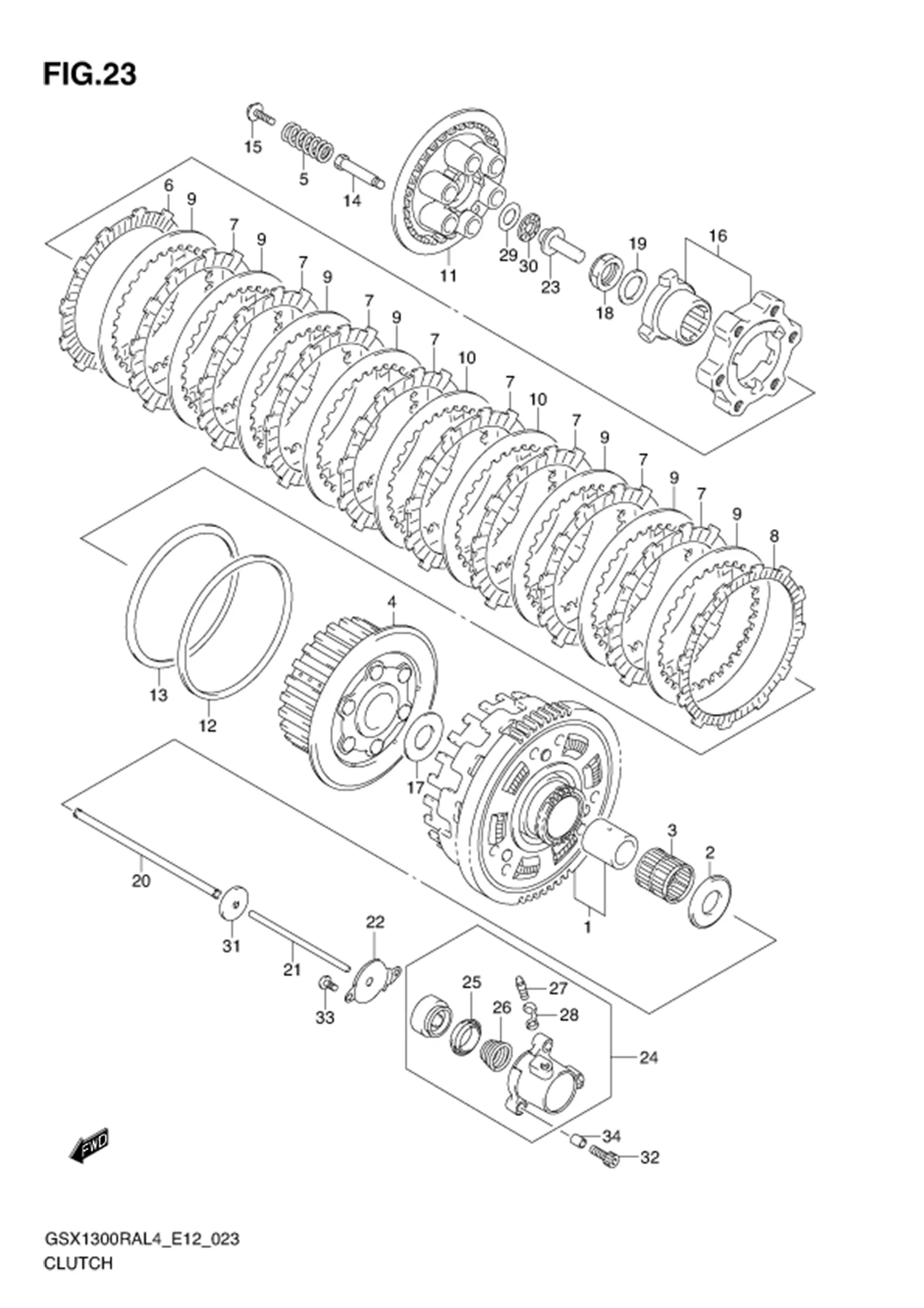

FIG.23 CLUTCH

FIG.23 CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 21200-24810-000 GEAR ASSY, PRIMARY DRIVEN (NT:83) 1 Rp3.541.000
2 DISCONTINUE
SUB: 09160-25073-000		 WASHER (25X54X2.4) 1 -
3 09263-35013-000 BEARING (35X40X39.8) 1 Rp273.500
4 21410-24F00-000 HUB, CLUTCH SLEEVE 1 Rp987.500
5 21413-24F30-000 SPRING, CLUTCH 6 Rp51.500
6 21441-24F10-000 PLATE, CLUTCH DRIVE NO.2 (T:3.8) 1 Rp207.000
7 21441-24F30-000 PLATE, CLUTCH DRIVE NO.1 (T:3.0) 8 Rp207.000
8 21442-24F00-000 PLATE, CLUTCH DRIVE NO.3 (T:3.8) 1 Rp207.000
9 21451-24F00-000 PLATE, CLUTCH DRIVEN NO.1 (T:2.0) 7 Rp90.500
10 21451-24F10-000 PLATE, CLUTCH DRIVEN NO.2 (T:2.3) 2 Rp90.500
11 21462-24F00-000 DISC, CLUTCH PRESSURE 1 Rp453.000
12 21471-24F00-000 SEAT, WAVE WASHER 1 Rp93.000
13 21472-06G00-000 WASHER, CLUTCH PLATE WAVE 1 Rp109.500
14 21481-24F32-000 BOLT, CLUTCH SPRING SUPPORT 6 Rp76.000
15 21482-24F30-000 BOLT, CLUTCH SPRING 6 Rp28.500
16 21610-02F12-000 CAM SET, CLUTCH 1 Rp1.503.000
17 09160-25056-000 WASHER (25X50X2.5) 1 Rp79.500
18 09159-24010-000 NUT 1 Rp90.000
19 09164-24006-000 WASHER 1 Rp30.000
20 23110-24F00-000 ROD, CLUTCH (L:195.5) 1 Rp142.500
21 23111-26D00-000 ROD, CLUTCH PUSH (L:132.5) 1 Rp102.500
22 DISCONTINUE
SUB: 23117-46E00-000		 COVER, CLUTCH RELEASE 1 -
23 23121-31E00-000 PIECE, CLUTCH PUSH 1 Rp151.500
24 23160-15H11-000
SUB: 23160-15H10-000		 CYLINDER, CLUTCH RELEASE 1 Rp938.000
25 23163-10F00-000 ?CUP 1 Rp50.000
26 23164-10F00-000 ?SPRING 1 Rp31.500
27 59121-01A00-000 ?BLEEDER 1 Rp14.500
28 59122-01A00-000 ?CAP, BLEEDER 1 Rp3.000
29 09160-15045-000 WASHER (15.5X28X1) 1 Rp23.500
30 09263-15003-000 BEARING (15X28X2) 1 Rp59.500
31 09285-06015-000 OIL SEAL (6X34X5.5) 1 Rp51.000
32 07130-0625A-000 BOLT 2 Rp3.500
33 01547-0610A-000
SUB: 02112-0610A-000		 SCREW 2 Rp3.000
34 04211-09129-000 PIN 2 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
