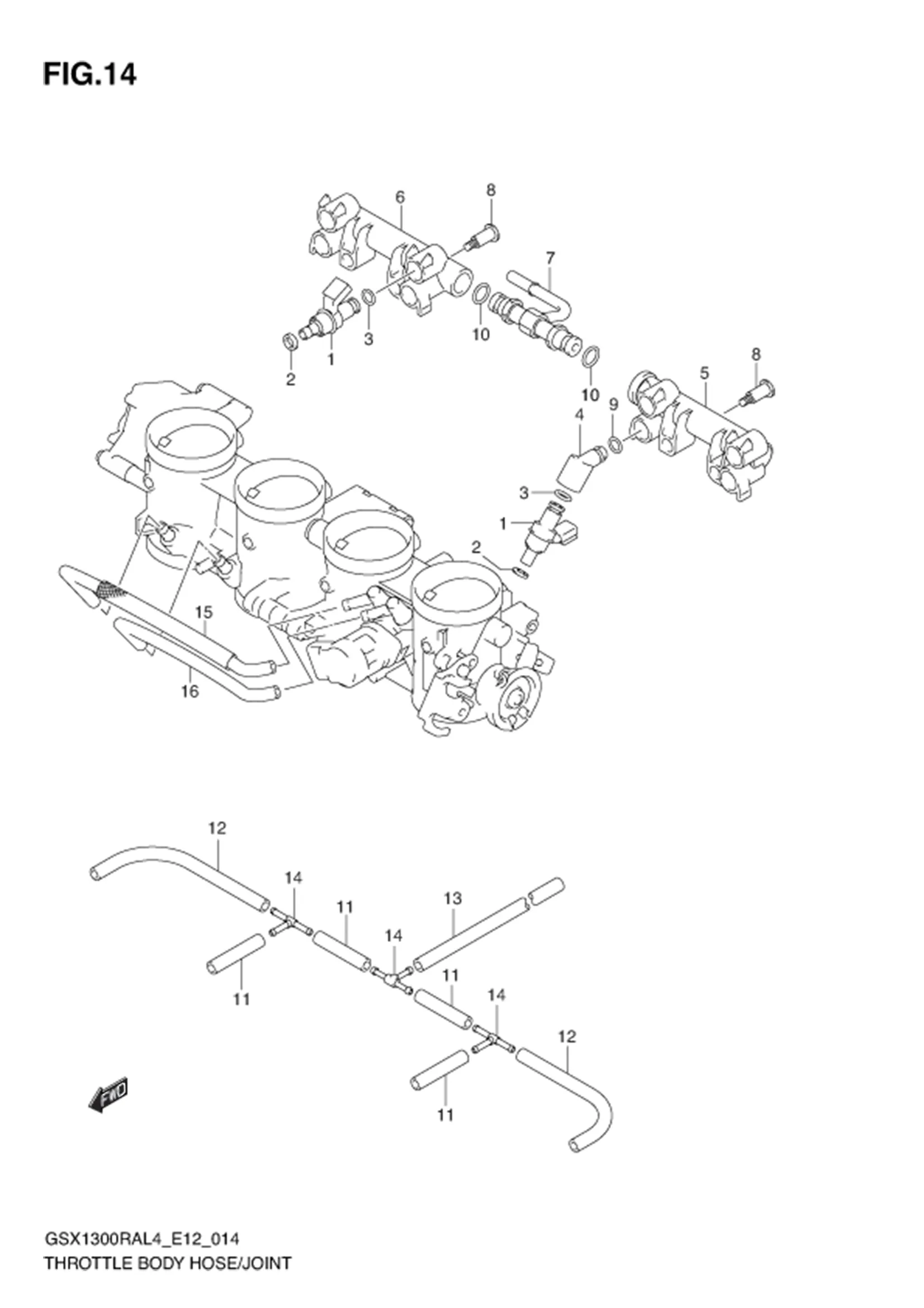

FIG.14 THROTTLE BODY HOSE/JOINT

FIG.14 THROTTLE BODY HOSE/JOINT
No No. Part Description Qty Price Per Pcs Remarks
1 15710-21H10-000 INJECTOR ASSY 8 Rp1.657.000
2 15722-21H00-000 O RING 8 Rp9.000
3 15721-21H00-000 O RING 8 Rp60.500
4 13473-21H00-000 PIPE, FUEL 4 Rp108.500
5 13474-21H00-000 PIPE, FUEL 1 Rp609.000
6 13474-21H10-000 PIPE, FUEL 1 Rp609.000
7 13473-15H10-000 JOINT 1 Rp1.062.500
8 13601-35F00-000 SCREW 4 Rp59.500
9 15721-24F00-000 O RING 4 Rp60.500
10 15721-10G00-000 O RING 2 Rp60.500
11 13697-24F00-000 HOSE, RUBBER (L:35) 4 Rp21.000
12 13697-24F20-000 HOSE, RUBBER (L:100) 2 Rp30.000
13 13697-35F00-000 HOSE, RUBBER (L:170) 1 Rp47.000
14 13471-24F30-000 T JOINT 3 Rp99.000
15 13680-21H10-000 TUBE 1 Rp129.000
16 13698-21H00-000 TUBE 1 Rp64.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
