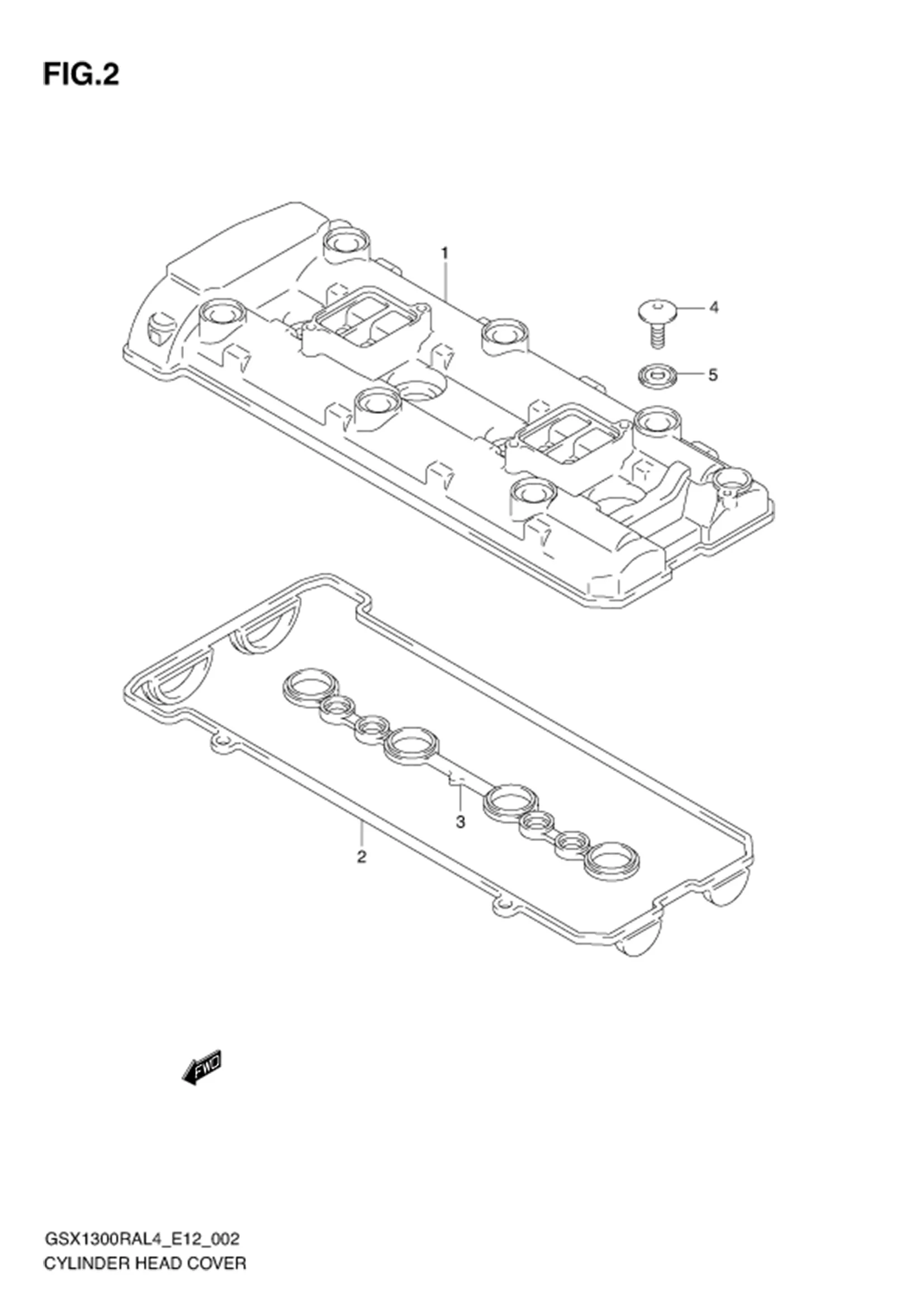

FIG.2 CYLINDER HEAD COVER

FIG.2 CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11170-15H00-000 COVER, CYLINDER HEAD 1 Rp3.479.500
2 11173-24F00-000 GASKET, HEAD COVER NO.1 1 Rp337.000
3 11178-15H00-000 GASKET, HEAD COVER NO.2 1 Rp97.500
4 09106-07009-000 BOLT (7X17.5) 6 Rp24.500
5 11191-27E00-000 WASHER 6 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
