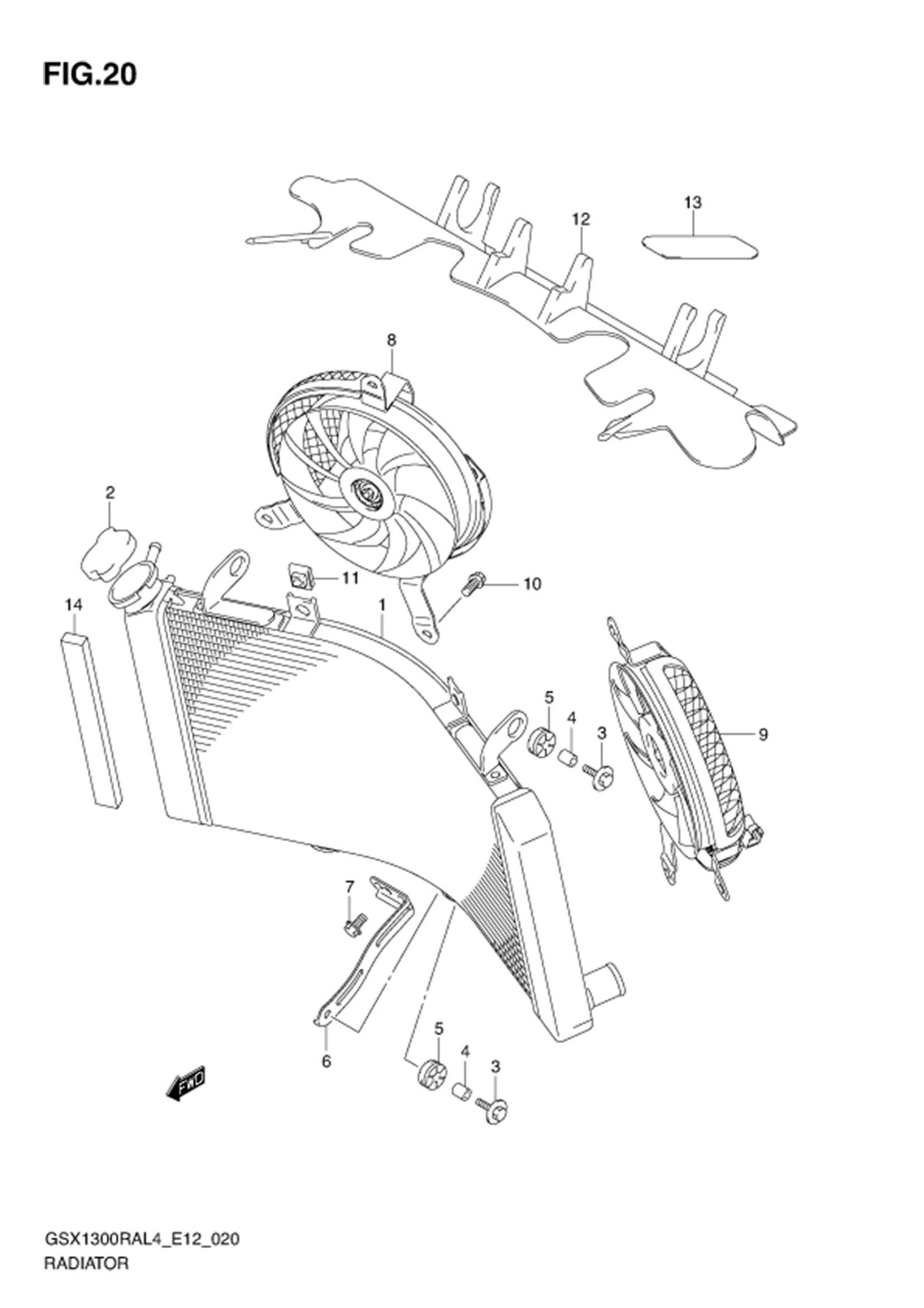

FIG.20 RADIATOR

FIG.20 RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17710-15H10-000
SUB: 17710-15H00-000		 RADIATOR ASSY, WATER 1 Rp9.602.000
2 17730-08J00-000 CAP 1 Rp332.000
3 09118-06097-000 BOLT (6X25) 3 Rp21.000
4 DISCONTINUE
SUB: 09180-06290-000		 SPACER (6.5X10X12) 3 -
5 09320-10051-000 CUSHION 5 Rp23.500
6 17750-24F00-000 BRACKET, RADIATOR LOWER 1 Rp67.000
7 01550-0612A-000 BOLT 2 Rp3.500
8 17810-15H00-000 FAN ASSY, RADIATOR RH 1 Rp3.842.500
9 17820-15H00-000 FAN ASSY, RADIATOR LH 1 Rp3.842.500
10 17711-08J00-000 BOLT 6 Rp31.500
11 17712-40F00-000 NUT 4 Rp32.500
12 17771-15H00-000 SHIELD, HEAT 1 Rp220.000
13 63131-10F00-000 TAPE, REAR FENDER 2 Rp76.500
14 94476-17H00-000 CUSHION, RESERVOIR TANK 1 Rp37.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
