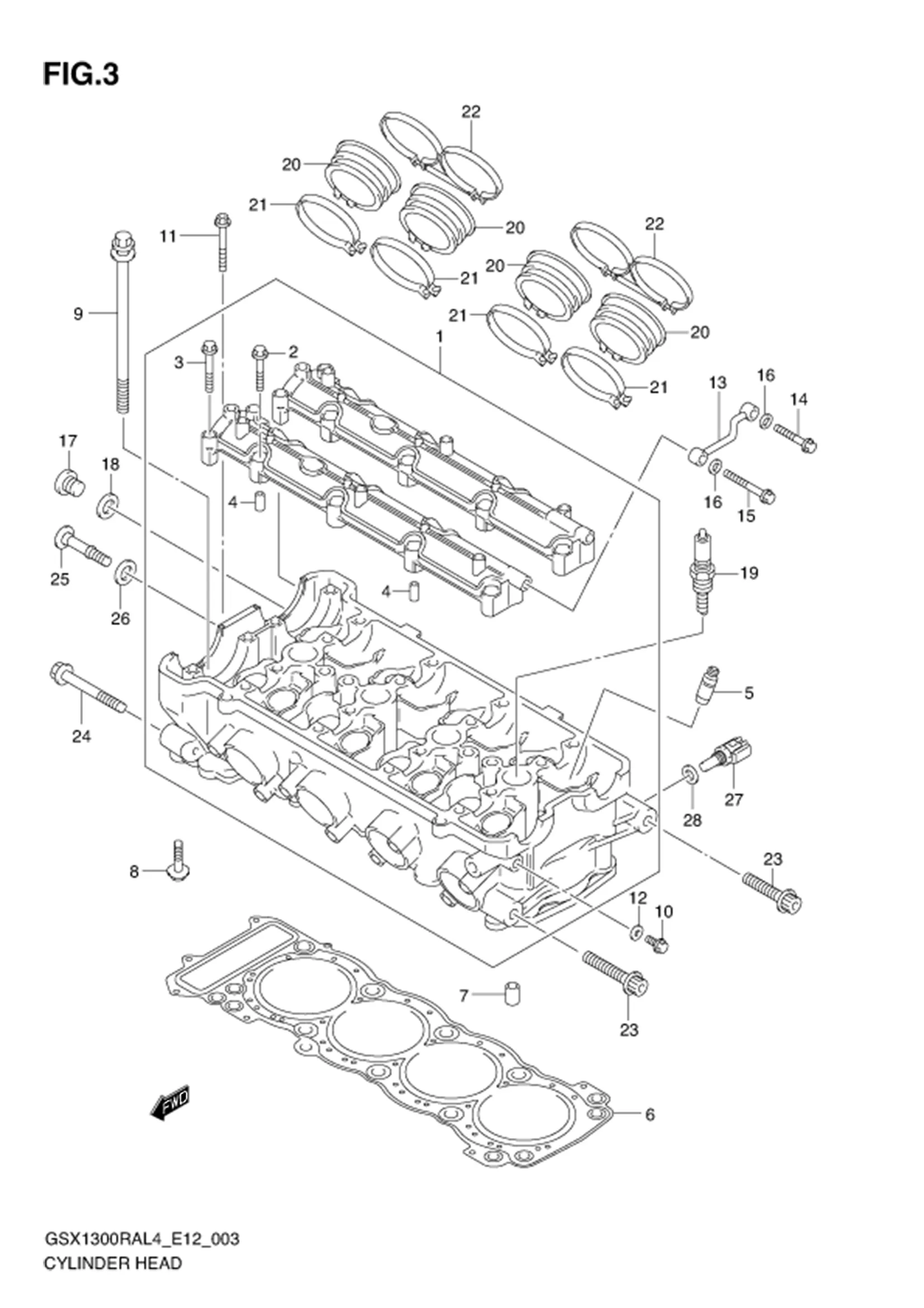

FIG.3 CYLINDER HEAD

FIG.3 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-15H01-000
SUB: 11100-15H00-000		 HEAD ASSY, CYLINDER 1 Rp16.370.000
2 09103-06266-000 ?BOLT (6X40) 16 Rp14.000
3 09103-06293-000 ?BOLT (6X45) 4 Rp19.000
4 09206-08007-000 ?PIN (6.2X8X16) 4 Rp19.000
5 11115-15H70-000 GUIDE, VALVE (OS:0.3) 16 Rp224.000 OPT
6 11141-15H00-000 GASKET, CYLINDER HEAD 1 Rp645.000
7 04211-11169-000 PIN 2 Rp2.000
8 01550-0630B-000 BOLT 1 Rp21.000
9 11117-15H00-000 BOLT 10 Rp117.500
10 09103-06222-000 BOLT (6X12) 1 Rp17.500
11 07120-0655B-000 BOLT 2 Rp24.500
12 09168-06023-000 GASKET (5.8X13X1.2) 1 Rp13.500
13 11131-33E01-000 PIPE, OIL 1 Rp320.500
14 01550-0635A-000 BOLT 1 Rp3.000
15 01550-0645A-000 BOLT 1 Rp13.000
16 08322-0106A-000 WASHER 2 Rp2.500
17 09248-16012-000 PLUG (16X8) 1 Rp31.500
18 09168-16009-000 GASKET (16X22X0.8) 1 Rp15.500
19-1 09482-00558-000 SPARK PLUG (CR9EIA-9) 4 Rp183.500 NGK
19-2 09482-00557-000 SPARK PLUG (IU27D) 4 Rp207.500 DENSO
19-3 DISCONTINUE
SUB: 09482-00556-000		 SPARK PLUG (CR8EIA-9) 4 - OPT NGK
19-4 DISCONTINUE
SUB: 09482-00560-000		 SPARK PLUG (CR10EIA-9) 4 - OPT NGK
19-5 DISCONTINUE
SUB: 09482-00555-000		 SPARK PLUG (IU24D) 4 - OPT DENSO
19-6 DISCONTINUE
SUB: 09482-00559-000		 SPARK PLUG (IU31D) 4 - OPT DENSO
20 13111-15H00-000 PIPE, INTAKE 4 Rp113.000
21 DISCONTINUE
SUB: 09402-60208-000		 CLAMP 4 -
22 13170-15H10-000 CLAMP 2 Rp196.000
23 09106-10069-000 BOLT (10X45) 2 Rp31.000
24 09106-10084-000 BOLT (10X60) 2 Rp39.000
25 11161-33E00-000 BOLT, CYL HEAD SIDE FACE 1 Rp70.000
26 11191-13E00-000 WASHER 1 Rp34.000
27 13650-49X00-000 SENSOR, WATER TEMPERATURE 1 Rp133.500
28 09168-12017-000 GASKET (12X17X1) 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
