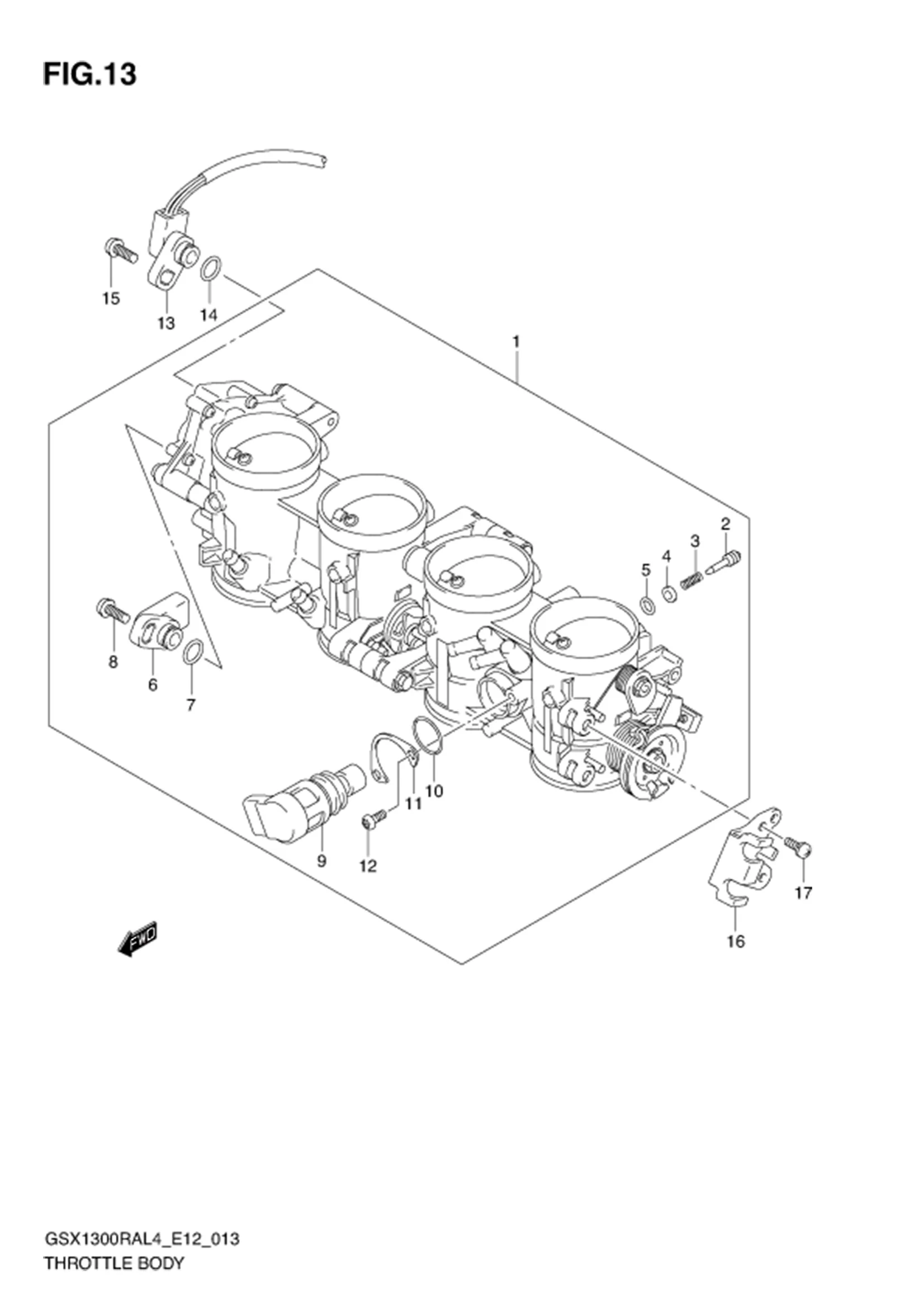

FIG.13 THROTTLE BODY

FIG.13 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13406-15H20-000 THROTTLE BODY 1 Rp15.040.000
2 13269-18G00-000 ?SCREW, AIR ADJUST 4 Rp66.000
3 13271-43E00-000 ?SPRING, AIR SCREW 4 Rp29.500
4 13291-26E00-000 ?WASHER 4 Rp21.500
5 13295-26E00-000 ?O RING 4 Rp30.500
6 DISCONTINUE
SUB: 13580-18G00-000		 ?SENSOR ASSY, THROTTLE MAIN 1 -
7 13575-40F00-000 ?O RING 1 Rp25.500
8 13605-40F00-000 ?SCREW 1 Rp26.500
9 18117-15H11-000 ?VALVE ASSY, ISC 1 Rp2.235.000
10 18119-05H00-000 ?O RING 1 Rp23.500
11 13428-15H00-000 ?PLATE, ISC VALVE 1 Rp171.000
12 13605-15H00-000 ?SCREW 2 Rp41.000
13 13580-40F31-000 SENSOR ASSY, THROTTLE SUB 1 Rp1.464.000
14 13575-40F00-000 O RING 1 Rp25.500
15 13605-40F00-000 SCREW 1 Rp26.500
16 13565-15H00-000 PLATE, STAY 1 Rp285.500
17 13601-21H00-000 SCREW 2 Rp24.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
