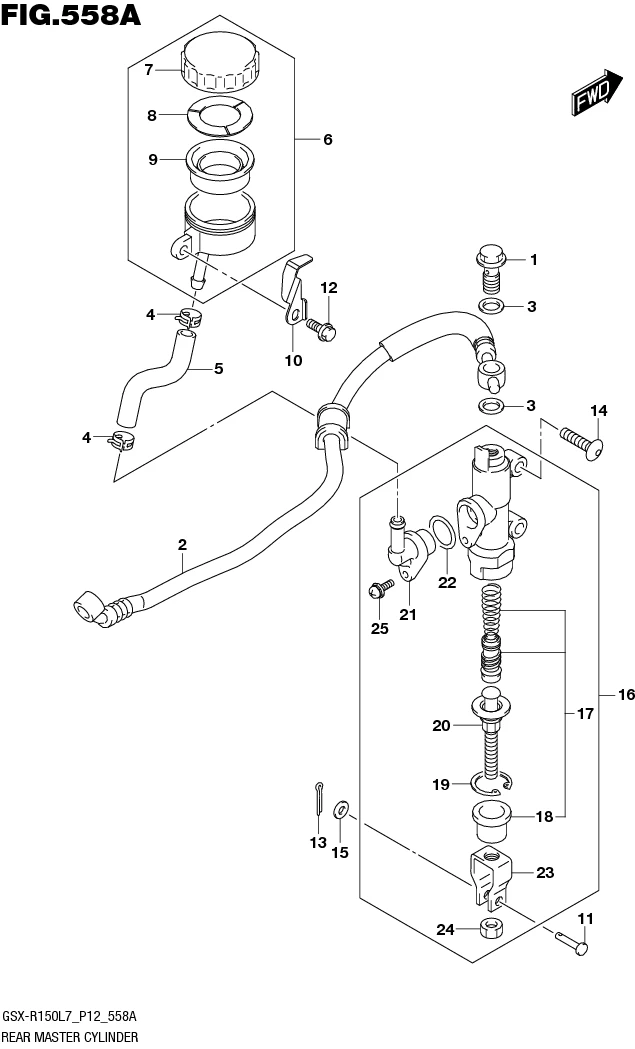

FIG.558A REAR MASTER CYLINDER

FIG.558A REAR MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59492-22J00-000
SUB: 59492B22J00N000		 BOLT, BRAKE FLUID 2 Rp19.500
2 69480-23K00-000 HOSE, REAR BRAKE 1 Rp116.500
3 09168-10033-000
SUB: 09168B10033N000		 WASHER (102X15X14) 4 Rp8.500
4 69735-38D00-000
SUB: 69735B38D00N000		 CLIP, REAR RESERVOIR HOSE 2 Rp9.000
5 69731-23K00-000 HOSE, REAR RESERVOIR TANK 1 Rp24.000
6 69740-20G10-000 TANK ASSY, REAR RESERVOIR 1 Rp22.500
7 69669-20G10-000 _CAP 1 Rp7.500
8 59668-18441-000
SUB: 59668B18441N000		 _PLATE 1 Rp3.000
9 59667-18441-000
SUB: 59667B18441N000		 _DIAPHRAGM 1 Rp13.500
10 69743-23K00-000 GUARD, RSVR TANK CAP 1 Rp5.500
11 09200-06037-000
SUB: 09200B06037N000		 PIN 1 Rp3.500
12 01547-0616A-000 BOLT 1 Rp6.500
13 04111-2015A-000 PIN 1 Rp4.500
14 09139-06057-000 SCREW (6X25) 2 Rp4.500
15 08322-0106A-000
SUB: 08322B0106AN000		 WASHER 1 Rp2.500
16 69600-23K00-000 CYLINDER ASSY, REAR MASTER 1 Rp246.000
17 69600-34840-000 _PISTON / CUP SET 1 Rp120.000
18 69691-04A00-000 __BOOT 1 Rp21.500
19 69665-47H00-000 _CIRCLIP 1 Rp32.000
20 69670-34J00-000 _ROD, PUSH 1 Rp33.500
21 69672-34J00-000 _CONNECTOR 1 Rp14.500
22 69686-34200-000
SUB: 69686-34200L000		 _O RING 1 Rp8.000
23 69692-44H00-000
SUB: 69692B44H00N000		 _YOKE 1 Rp41.000
24 69693-05A00-000
SUB: 69693-05A00L000		 _NUT 2 Rp5.500
25 02112-74125-000 _SCREW 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
