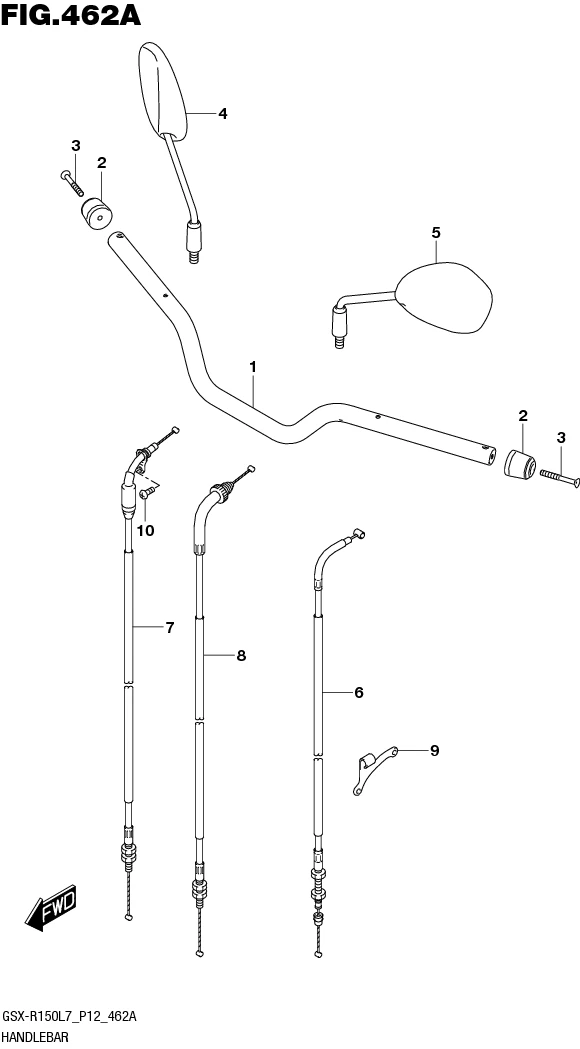

FIG.462A HANDLEBAR (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

FIG.462A HANDLEBAR (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 56111-23K00-000 HANDLEBAR 1 Rp185.000
2 56278-32J10-000 BALANCER, HANDLEBAR 2 Rp28.000
3 09127-06025-000 SCREW (6X50) 2 Rp7.500
4 56500-34J51-000
SUB: 56500-34J50-000		 MIRROR ASSY, REAR VIEW RH 1 Rp52.000
5 56600-34J51-000
SUB: 56600-34J50-000		 MIRROR ASSY, REAR VIEW LH 1 Rp52.000
6 58200-23K01-000
SUB: 58200-23K00-000		 CABLE ASSY, CLUTCH 1 Rp51.000
7 58300-23K01-000
SUB: 58300-23K00-000		 CABLE ASSY, THROTTLE NO1 1 Rp44.000
8 58300-23K11-000
SUB: 58300-23K10-000		 CABLE ASSY, THROTTLE NO2 1 Rp48.000
9 58634-12K00-000 STOPPER, CLUTCH CABLE 1 Rp8.500
10 02112-0512A-000 SCREW 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
