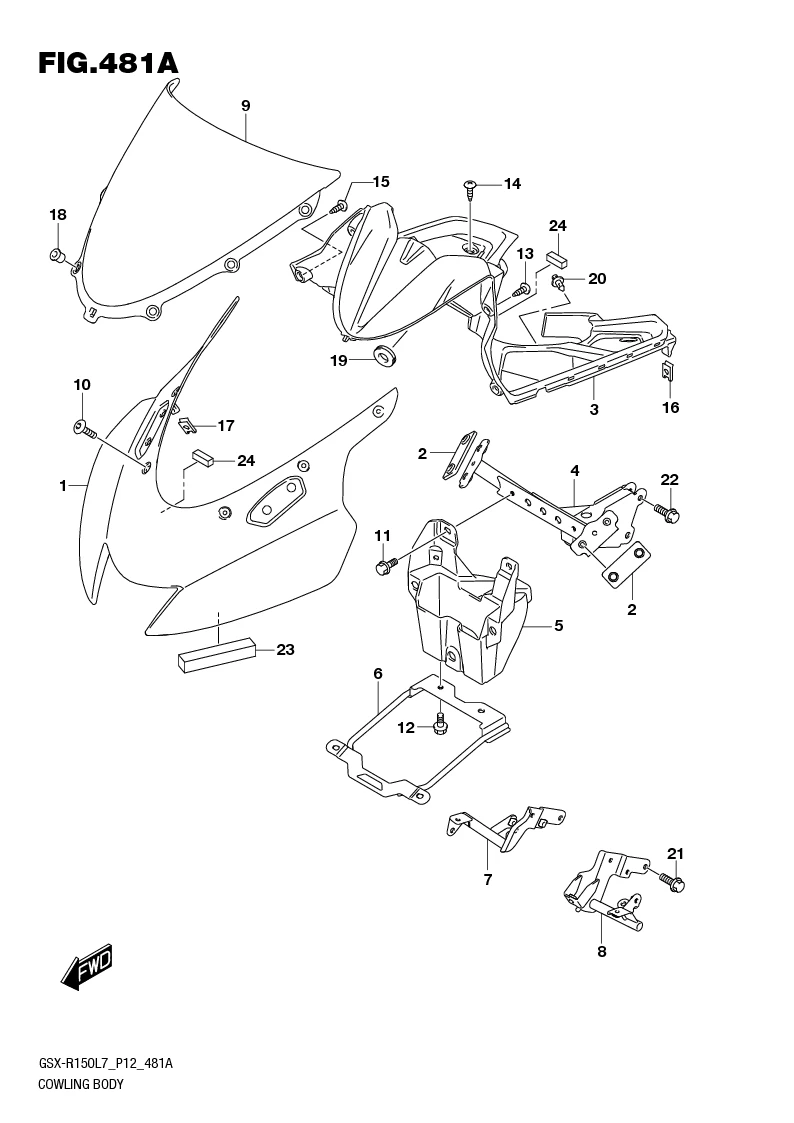

FIG.481A COWLING BODY (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

FIG.481A COWLING BODY (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1-2 94411-23K00-291 COWLING, BODY (BLACK)FOR 291,APM 1 Rp177.500 FOR 291,APM
1-5 94411-23K00-YZE COWLING,BODY (STRONGER RED) 1 Rp80.000 Minor Change 2018_YZE
1-4 94411-23K00-YVU COWLING, BODY (BLACK)FOR YVU 1 Rp153.000 FOR YVU
1-3 94411-23K00-YSF COWLING, BODY (BLUE)FOR YSF 1 Rp167.500 FOR YSF
1-1 94411-23K00-YUH COWLING, BODY (WHITE)FOR YUH 1 Rp187.500 FOR YUH
2 94412-23K00-000 CUSHION, MIRROR BRACKET 2 Rp4.500
3 94421-23K00-000 PANEL, METER 1 Rp56.000
4 94510-23K00-000 BRACE, COWLING 1 Rp93.500
5 94511-23K00-000 BRACE, COWLING LOWER 1 Rp42.000
6 94530-23K00-000 BRACKET, FRONT LICENSE 1 Rp39.000
7 94540-23K00-000 BRACKET, SIDE COWL UPR RH 1 Rp33.500
8 94550-23K00-000 BRACKET, SIDE COWL UPR LH 1 Rp33.500
9 94611-23K00-000 WINDSCREEN 1 Rp87.500
10 94621-23K00-000 SCREW, WINDSCREEN 6 Rp4.500
11 09111-06107-000
SUB: 09111B06107N000		 BOLT 3 Rp4.000
12 09111-06107-000
SUB: 09111B06107N000		 BOLT 2 Rp4.000
13 09139-05503-000 SCREW (5X13) 2 Rp18.000
14 09139-05503-000 SCREW (5X13) 2 Rp18.000
15 09139-05504-000 SCREW (5X18) 2 Rp23.000
16 09148-04019-000
SUB: 09148B04019N000		 NUT 2 Rp6.500
17 09148-05058-000
SUB: 09148B05058N000		 NUT 2 Rp15.000
18 09159-05019-000 NUT 6 Rp41.000
19 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 1 Rp15.000
20 09409-06314-5PK
SUB: 09409-06314-000		 CLIP 4 Rp3.500
21 01550-0612A-000 BOLT 4 Rp3.500
22 01550-0830B-000
SUB: 01550B0830BN000		 BOLT 2 Rp3.000
23 94413-23K00-000 CUSHION, BODY COWL 2 Rp5.500
24 94414-23K00-000 CUSHION, METER PANEL 3 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
