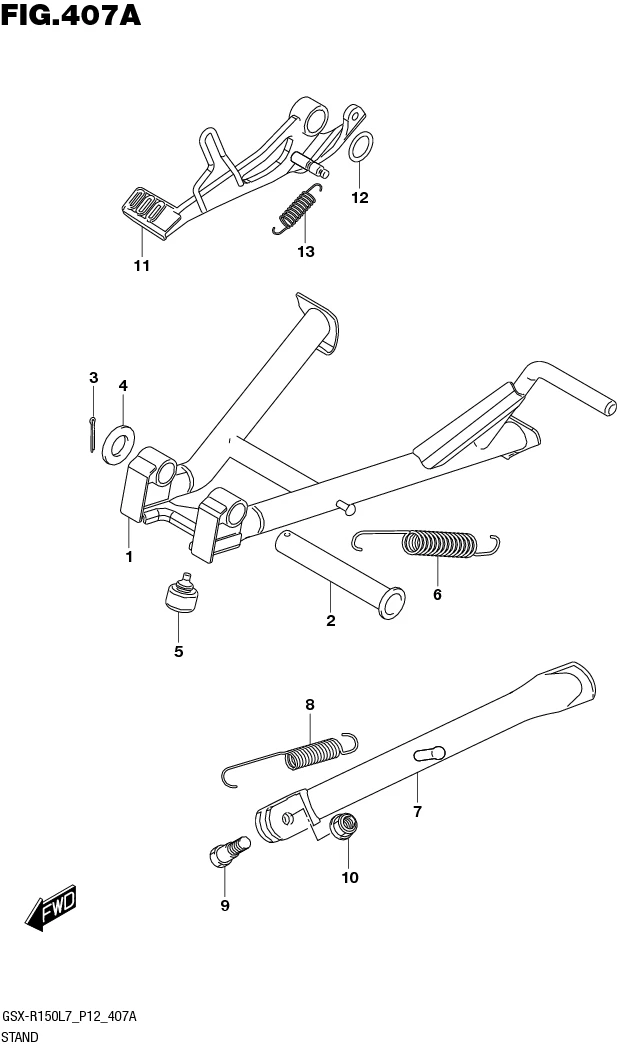

FIG.407A STAND (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

FIG.407A STAND (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 42100-23K00-000 STAND, CENTER 1 Rp377.500
2 42211-25G00-000
SUB: 42211B25G00N000		 SHAFT, CENTER STAND 1 Rp23.500
3 04111-3025A-000
SUB: 04111B3025AN000		 COTTER PIN 1 Rp3.500
4 08322-0116A-000
SUB: 08322B0116AN000		 WASHER 1 Rp6.500
5 42272-09J00-000 CUSHION, CENTER STAND 1 Rp6.000
6 42241-45H00-000
SUB: 42241B45H00N000		 SPRING, CENTER STAND 1 Rp13.000
7 42310-23K00-000 STAND, PROP 1 Rp45.000
8 09443-14077-000 SPRING 1 Rp6.000
9 42341-40J00-000 BOLT, PROP STAND 1 Rp11.500
10 08319-3110A-000 NUT 1 Rp4.500
11 43110-23K01-000
SUB: 43110-23K00-000		 PEDAL, BRAKE 1 Rp70.500
12 09160-18022-000 WASHER (18X24X1) 1 Rp19.500
13 09443-11033-000 SPRING 1 Rp28.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
