  5. FIG.420A FUEL TANK (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

GSXR-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.355B HANDLE SWITCH (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.401A FRAME (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.401B FRAME (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.407A STAND (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.407B STAND (GSX-R150RFL7 P12/GSX-R150RFL7 P12)FIG.415A FOOTREST (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.415B FOOTREST (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.420A FUEL TANK (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.420B FUEL TANK (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.423A FUEL TANK COVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.423B FUEL TANK COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.424A FUEL TANK SIDE COVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.445A FRAME COVER (GSX-S150MFL7 P12/GSX-S150MFL7 P12)FIG.445B FRAME COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.451A HEADLAMP HOUSING (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.460A FRONT FENDER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.460B FRONT FENDER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.462A HANDLEBAR (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.462B HANDLEBAR (GSX-R150RFL7 P12/GSX-R150RFL7 P12)FIG.467A HANDLE LEVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.467B HANDLE LEVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.474A REAR FENDERFIG.481A COWLING BODY (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.483A UNDER COWLING (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.485A SIDE COWLING (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.496A LABELFIG.505A SEAT (GSX-S150MFL7 P12GSX-S150MFXL7 P12)FIG.505B SEAT (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.521A FRONT FORK DAMPERFIG.524A STEERING STEM (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.524B STEERING STEM (GSX-R150RFL7 P12)FIG.530A FRONT WHEELFIG.535A FRONT CALIPERFIG.536A FRONT BRAKE HOSE (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.536B FRONT BRAKE HOSE (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.537A FRONT MASTER CYLINDERFIG.541A REAR SWINGINGARMFIG.543A REAR CUSHION LEVERFIG.550A REAR WHEELFIG.555A REAR CALIPERFIG.558A REAR MASTER CYLINDERFIG.915A STRIPPING SET(GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.915B STRIPPING SET(GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

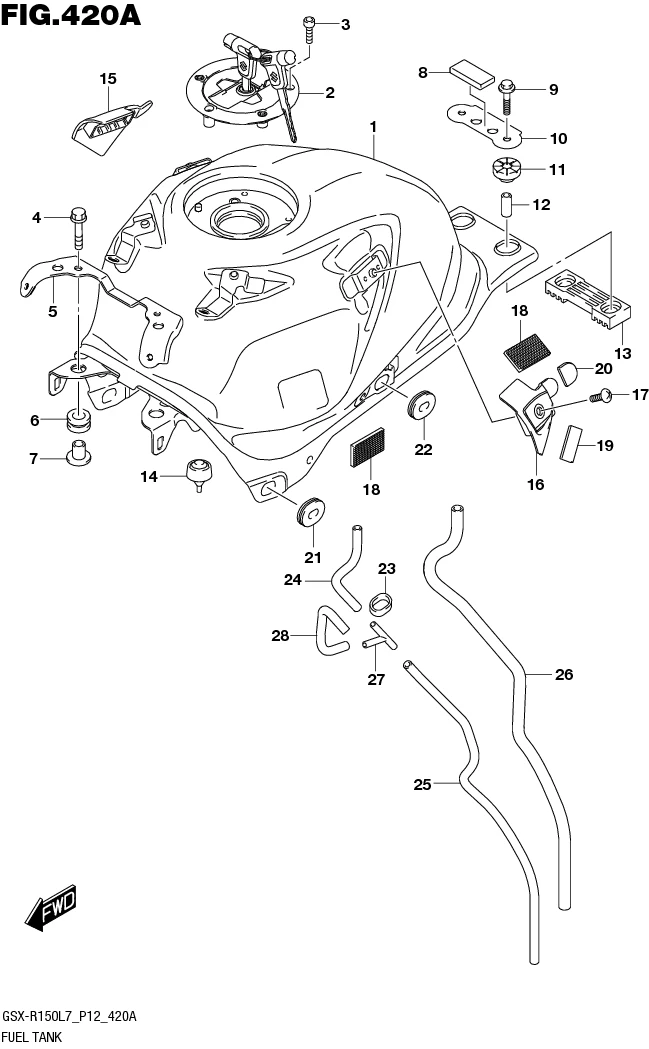

FIG.420A FUEL TANK (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

FIG.420A FUEL TANK (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1-2 44110-23K00-291 TANK ASSY, FUEL (BLACK)FOR 291 1 Rp1.912.500 FOR 291
1-3 44110-23K00-YNJ TANK ASSY, FUEL (SILVER)FOR YNJ 1 Rp1.912.500 FOR YNJ
1-4 44110-23K00-YSF TANK ASSY, FUEL (BLUE)FOR YSF 1 Rp1.912.500 FOR YSF
1-1 44110-23K00-YZE TANK ASSY, FUEL (RED)FOR GTA 1 Rp1.912.500 FOR GTA
2 44200-23870-000 CAP SET, FUEL TANK 1 Rp426.000
3 09106-05017-000 BOLT (5X20) 3 Rp18.000
4 DISCONTINUE
SUB: 01550B0625AN000		 BOLT 2 -
5 47130-23KA0-000 BRACKET, FRM FR INR COVER 1 Rp15.000
6 44511-16G01-000
SUB: 44511-16G00-000		 CUSHION, FUEL TANK FRONT 2 Rp7.500
7 44512-16G00-000 SPACER, FUEL TANK FRONT 2 Rp52.000
8 44542-48H01-000
SUB: 44542-48H00-000		 CUSHION, FUEL TANK REAR BRKT 1 Rp7.500
9 01550-0635A-000
SUB: 01550B0635AN000		 BOLT 2 Rp3.000
10 44146-23K00-000 WASHER, FUEL TANK REAR BRKT 1 Rp4.500
11 44541-23K00-000 CUSHION, FUEL TANK RR UPPER 2 Rp9.500
12 44544-05J00-000 SPACER, FUEL TANK REAR 2 Rp7.000
13 44542-23K10-000 CUSHION, FUEL TANK REAR LOWER 1 Rp9.500
14 44542-23K00-000 CUSHION, FUEL TANK SIDE 2 Rp4.500
15 44179-23KA0-000 BRACKET, FUEL TANK COVER RH 1 Rp22.500
16 44189-23KA0-000 BRACKET, FUEL TANK COVER LH 1 Rp22.500
17 02142-0610A-000 SCREW 2 Rp3.500
18 44572-13G00-000 FASTENER, FUEL TANK 4 Rp64.500
19 44183-23K00-000 CUSHION, FUEL TANK SIDE COVER 2 Rp6.500
20 44294-23K00-000 CUSHION, FUEL TANK COVER REAR 2 Rp4.500
21 94478-14J00-000 CUSHION, FUEL TANK LOWER FR 2 Rp4.000
22 94478-14J00-000 CUSHION, FUEL TANK LOWER RR 2 Rp4.000
23 09352-12163-010 HOSE, BRTHR CLAMP 1 Rp4.500
24 09352-50823-160 HOSE (5X82X160) 1 Rp4.500
25 09352-50823-480 HOSE (5X82X480) 1 Rp8.000
26 09352-70L05-650 HOSE (7X11X650) 1 Rp15.000
27 09367-06007-000 3WAY 1 Rp30.500
28 44424-23K50-000
SUB: 44424-23K10-000		 HOSE, FUEL TANK BRTHR NO3 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
