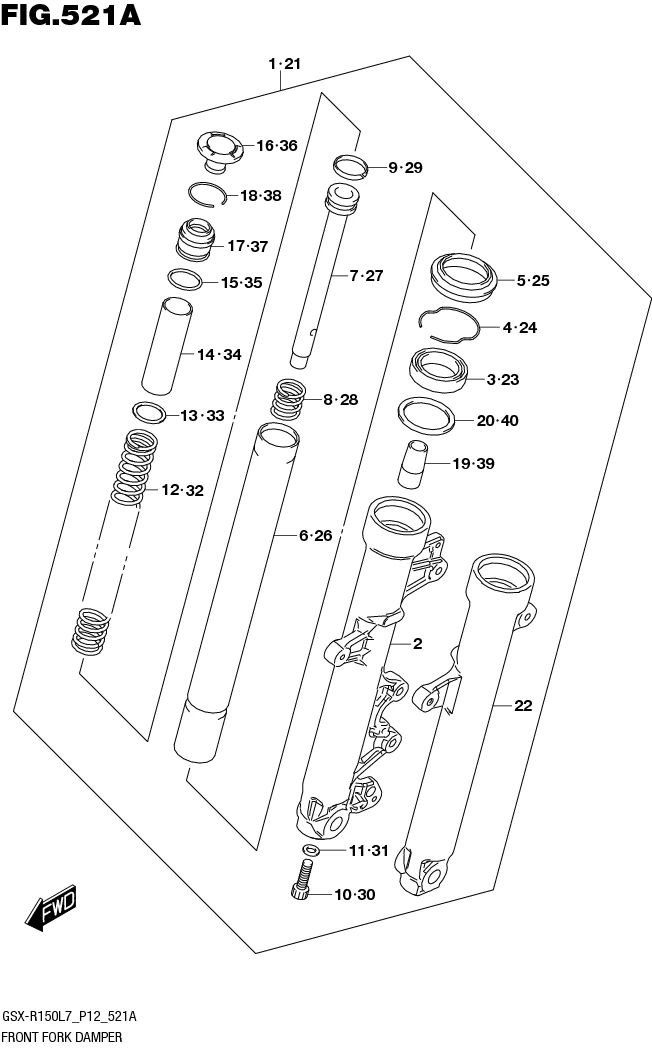

FIG.521A FRONT FORK DAMPER

FIG.521A FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-23K00-019 DAMPER ASSY, FRONT FORK RH 1 Rp744.000
2 51131-23K00-019 _TUBE, OUTER RH (BLACK) 1 Rp315.000
3 51153-23K00-000 _OIL SEAL 1 Rp39.500
4 51156-23K00-000 _RING, SNAP 1 Rp7.500
5 51571-23K00-000 _SEAL, DUST 1 Rp43.500
6 51110-23K00-000 _TUBE, INNER 1 Rp390.000
7 51194-23K00-000 _CYLINDER 1 Rp41.000
8 51177-08K00-000 _SPRING, REBOUND 1 Rp10.500
9 51196-08K00-000 _RING 1 Rp8.500
10 DISCONTINUE
SUB: 51147-31030-000		 _BOLT 1 -
11 51148-31030-000 _GASKET 1 Rp4.000
12 51171-23K00-000 _SPRING, FRONT 1 Rp42.500
13 51172-36331-000 _JOINT, SPRING 1 Rp33.500
14 51176-23K00-000 _SPACER, SPRING 1 Rp27.500
15 51117-43EC0-000 _O RING 1 Rp12.000
16 51351-23K00-000 _CAP 1 Rp25.500
17 51175-23K00-000 _SEAT, SRRING 1 Rp34.500
18 51169-48500-000 _RING, STOPPER 1 Rp16.500
19 51195-26B00-000 _OIL LOCK PIECE 1 Rp29.000
20 51168-23K00-000 _SPACER, SEAL 1 Rp18.500
21 51104-23K00-019 DAMPER ASSY, FRONT FORK LH 1 Rp744.000
22 51141-23K00-019 _TUBE, OUTER LH (BLACK) 1 Rp315.000
23 51153-23K00-000 _OIL SEAL 1 Rp39.500
24 51156-23K00-000 _RING, SNAP 1 Rp7.500
25 51571-23K00-000 _SEAL, DUST 1 Rp43.500
26 51110-23K00-000 _TUBE, INNER 1 Rp390.000
27 51194-23K00-000 _CYLINDER 1 Rp41.000
28 51177-08K00-000 _SPRING, REBOUND 1 Rp10.500
29 51196-08K00-000 _RING 1 Rp8.500
30 DISCONTINUE
SUB: 51147-31030-000		 _BOLT 1 -
31 51148-31030-000 _GASKET 1 Rp4.000
32 51171-23K00-000 _SPRING, FRONT 1 Rp42.500
33 51172-36331-000 _JOINT, SPRING 1 Rp33.500
34 51176-23K00-000 _SPACER, SPRING 1 Rp27.500
35 51117-43EC0-000 _O RING 1 Rp12.000
36 51351-23K00-000 _CAP 1 Rp25.500
37 51175-23K00-000 _SEAT, SPRING 1 Rp34.500
38 51169-48500-000 _RING, STOPPER 1 Rp16.500
39 51195-26B00-000 _OIL LOCK PIECE 1 Rp29.000
40 51168-23K00-000 _SPACER, SEAL 1 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
