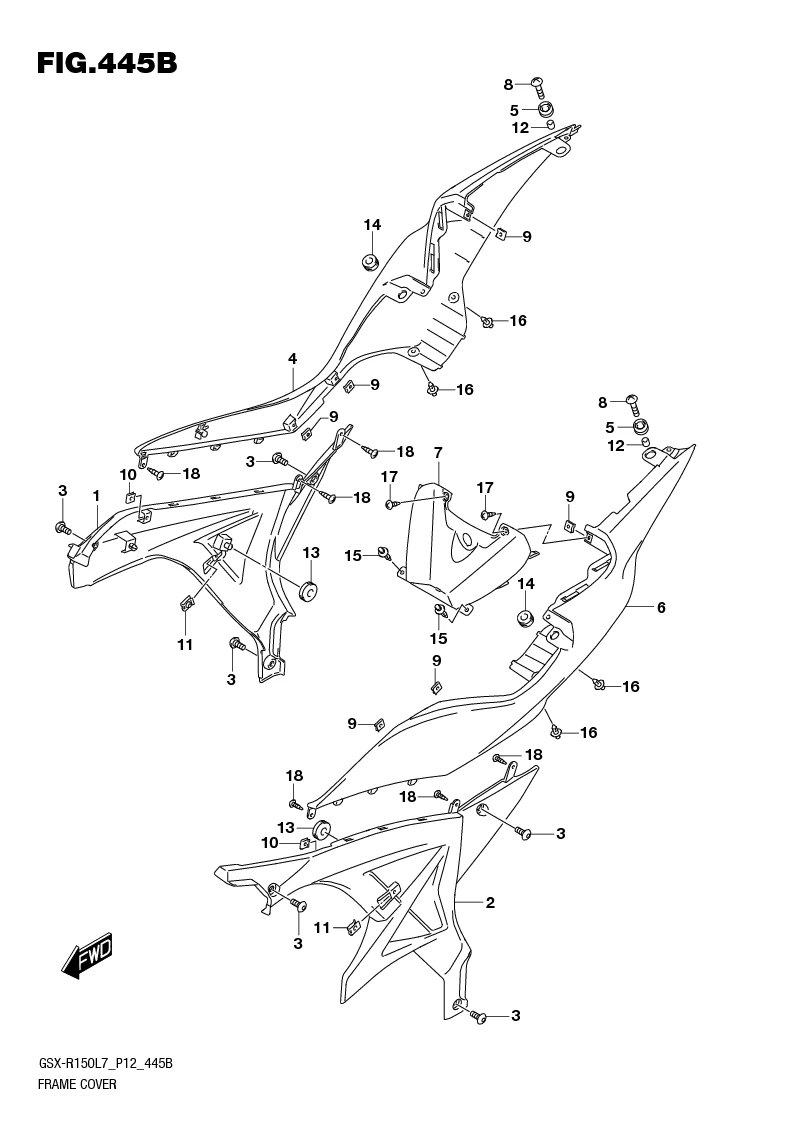

FIG.445B FRAME COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

FIG.445B FRAME COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1-2 47111-23K00-YMC COVER, FRAME RH (SILVER)FOR YVU 1 Rp193.500 FOR YVU
1-1 47111-23K00-291 COVER, FRAME RH (BLACK)FOR APM,291,YUH,YSF 1 Rp194.500 FOR APM,291,YUH,YSF
2-2 47211-23K00-291 COVER, FRAME LH (BLACK)FOR APM,291,YUH,YSF 1 Rp194.500 FOR APM,291,YUH,YSF
2-3 47211-23K00-YMC COVER, FRAME LH (SILVER)FOR YVU 1 Rp193.500 FOR YVU
3 44513-23K00-000 SCREW, FRAME COVER 6 Rp6.500
4-5 47311-23K00-YVU COVER, FRAME UPPER RH (BLACK)FOR YVU 1 Rp192.500 FOR YVU
4-4 47311-23K00-YSF COVER, FRAME UPPER RH (BLUE)FOR YSF 1 Rp192.500 FOR YSF
4-3 47311-23K00-YZE COVER, FRAME UPPER RH (RED)FOR APM 1 Rp192.500 FOR APM
4-2 47311-23K00-291 COVER, FRAME UPPER RH (BLACK)FOR 291 1 Rp192.500 FOR 291
4-1 47311-23K00-YUH COVER, FRAME UPPER RH (WHITE)FOR YUH 1 Rp192.500 FOR YUH
5 47312-37H10-000
SUB: 47312-37H00-000		 CUSHION, FRAME COVER UPPER RR 2 Rp24.000
6-1 47411-23K00-YUH COVER, FRAME UPPER LH (WHITE)FOR YUH 1 Rp192.500 FOR YUH
6-2 47411-23K00-291 COVER, FRAME UPPER LH (BLACK)FOR 291 1 Rp192.500 FOR 291
6-3 47411-23K00-YZE COVER, FRAME UPPER LH (RED)FOR APM 1 Rp192.500 FOR APM
6-4 47411-23K00-YSF COVER, FRAME UPPER LH (BLUE)FOR YSF 1 Rp192.500 FOR YSF
6-5 47411-23K00-YVU COVER, FRAME UPPER LH (BLACK)FOR YVU 1 Rp192.500 FOR YVU
7-1 47511-23K00-YUH COVER, FRAME UPPER CTR (WHITE)FOR YUH 1 Rp88.500 FOR YUH
7-5 47511-23K00-YVU COVER, FRAME UPPER CTR (BLACK)FOR YVU 1 Rp88.500 FOR YVU
7-4 47511-23K00-YSF COVER, FRAME UPPER CTR (BLUE)FOR YSF 1 Rp88.500 FOR YSF
7-3 47511-23K00-YZE COVER, FRAME UPPER CTR (RED)FOR APM 1 Rp88.500 FOR APM
7-2 47511-23K00-291 COVER, FRAME UPPER CTR (BLACK)FOR 291 1 Rp88.500 FOR 291
8 09136-06105-000 SCREW 2 Rp12.500
9 09148-04019-000
SUB: 09148B04019N000		 NUT 6 Rp6.500
10 09148-04019-000
SUB: 09148B04019N000		 NUT 2 Rp6.500
11 09148-05058-000
SUB: 09148B05058N000		 NUT 2 Rp15.000
12 09180-06283-000 SPACER 2 Rp13.000
13 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 2 Rp15.000
14 09320-09016-000 CUSHION 2 Rp4.000
15 09409-06314-5PK
SUB: 09409-06314-000		 CLIP 2 Rp3.500
16 09409-06314-5PK
SUB: 09409-06314-000		 CLIP 4 Rp3.500
17 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 2 Rp3.500
18 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
