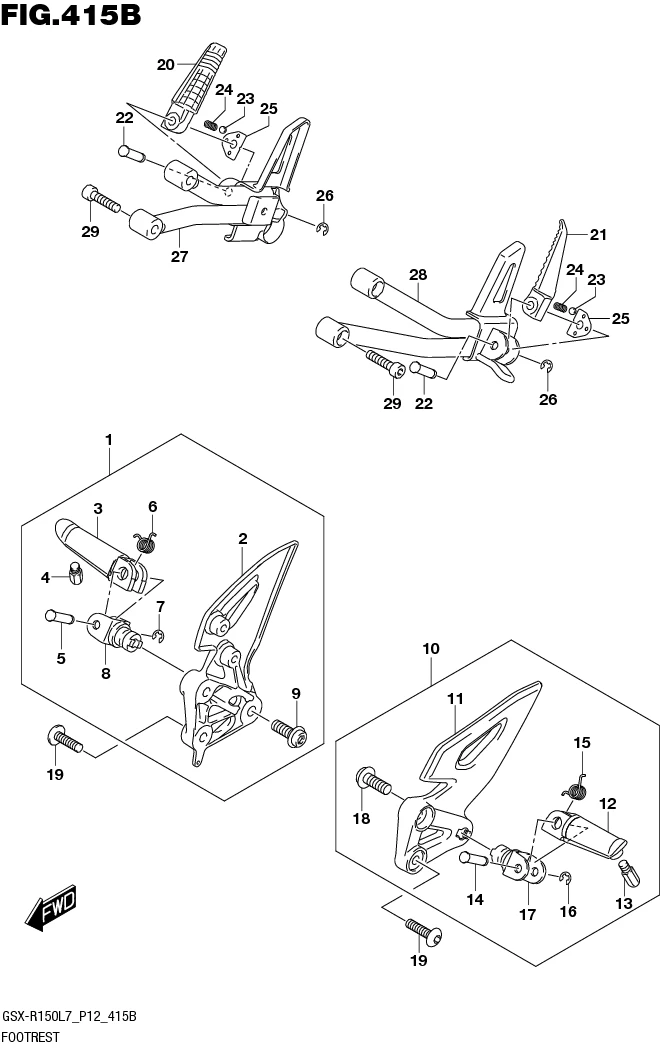

FIG.415B FOOTREST (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

FIG.415B FOOTREST (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 43501-23K10-000
SUB: 43501-23K10-13L		 FOOTREST ASSY, FR RH (SILVER) 1 Rp197.000
2 43511-23K00-000
SUB: 43511-23K00-13L		 _BRACKET, FR FTRST RH (SILVER) 1 Rp77.500
3 43516-35F10-000 _BAR, FRONT FOOTREST RH 1 Rp67.000
4 43576-48B02-000 _BOLT, BANK SENSOR 1 Rp45.000
5 09208-08018-000 _PIN 1 Rp4.500
6 09448-14037-000 _SPRING 1 Rp4.500
7 08332-1106A-000
SUB: 08332B1106AN000		 _E RING 1 Rp8.500
8 43530-23K00-000 _HOLDER, FOOTREST 1 Rp37.000
9 09106-10064-000 _BOLT (10X28) 1 Rp8.000
10 43502-23K00-000
SUB: 43502-23K00-13L		 FOOTREST ASSY, FR LH (SILVER) 1 Rp194.000
11 43521-23K00-000
SUB: 43521-23K00-13L		 _BRACKET, FR FTRST LH (SILVER) 1 Rp77.500
12 43526-35F10-000 _BAR, FRONT FOOTREST LH 1 Rp65.500
13 43576-48B02-000 _BOLT, BANK SENSOR 1 Rp45.000
14 09208-08018-000 _PIN 1 Rp4.500
15 09448-14037-000 _SPRING 1 Rp4.500
16 08332-1106A-000
SUB: 08332B1106AN000		 _E RING 1 Rp8.500
17 43530-23K00-000 _HOLDER, FOOTREST 1 Rp37.000
18 09106-10064-000 _BOLT (10X28) 1 Rp8.000
19 09106-08196-000
SUB: 09106B08196N000		 BOLT (6X23) 4 Rp7.500
20 43611-37H20-000
SUB: 43611B37H00N000		 BAR, PILLION RH 1 Rp311.500
21 43621-37H20-000
SUB: 43621B37H00N000		 BAR, PILLION LH 1 Rp311.500
22 09208-08017-000
SUB: 09208B08017N000		 PIN 2 Rp5.500
23 06111M07004-000
SUB: 06111-07004-000		 BALL 2 Rp3.000
24 09440-05005-000 SPRING 2 Rp6.500
25 43816-01H02-000
SUB: 43816B01H02N000		 PLATE, PILLION FOOTREST 2 Rp8.500
26 08332-1106A-000
SUB: 08332B1106AN000		 E RING 2 Rp8.500
27 43810-23K00-000 BRACKET, PILLION FTRST RH 1 Rp156.000
28 43820-23K00-000 BRACKET, PILLION FTRST LH 1 Rp156.000
29 07130-0830A-000 BOLT 4 Rp33.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
