  5. FIG.423B FUEL TANK COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

GSXR-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.355B HANDLE SWITCH (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.401A FRAME (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.401B FRAME (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.407A STAND (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.407B STAND (GSX-R150RFL7 P12/GSX-R150RFL7 P12)FIG.415A FOOTREST (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.415B FOOTREST (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.420A FUEL TANK (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.420B FUEL TANK (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.423A FUEL TANK COVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.423B FUEL TANK COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.424A FUEL TANK SIDE COVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.445A FRAME COVER (GSX-S150MFL7 P12/GSX-S150MFL7 P12)FIG.445B FRAME COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.451A HEADLAMP HOUSING (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.460A FRONT FENDER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.460B FRONT FENDER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.462A HANDLEBAR (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.462B HANDLEBAR (GSX-R150RFL7 P12/GSX-R150RFL7 P12)FIG.467A HANDLE LEVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.467B HANDLE LEVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.474A REAR FENDERFIG.481A COWLING BODY (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.483A UNDER COWLING (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.485A SIDE COWLING (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.496A LABELFIG.505A SEAT (GSX-S150MFL7 P12GSX-S150MFXL7 P12)FIG.505B SEAT (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.521A FRONT FORK DAMPERFIG.524A STEERING STEM (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.524B STEERING STEM (GSX-R150RFL7 P12)FIG.530A FRONT WHEELFIG.535A FRONT CALIPERFIG.536A FRONT BRAKE HOSE (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.536B FRONT BRAKE HOSE (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.537A FRONT MASTER CYLINDERFIG.541A REAR SWINGINGARMFIG.543A REAR CUSHION LEVERFIG.550A REAR WHEELFIG.555A REAR CALIPERFIG.558A REAR MASTER CYLINDERFIG.915A STRIPPING SET(GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.915B STRIPPING SET(GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

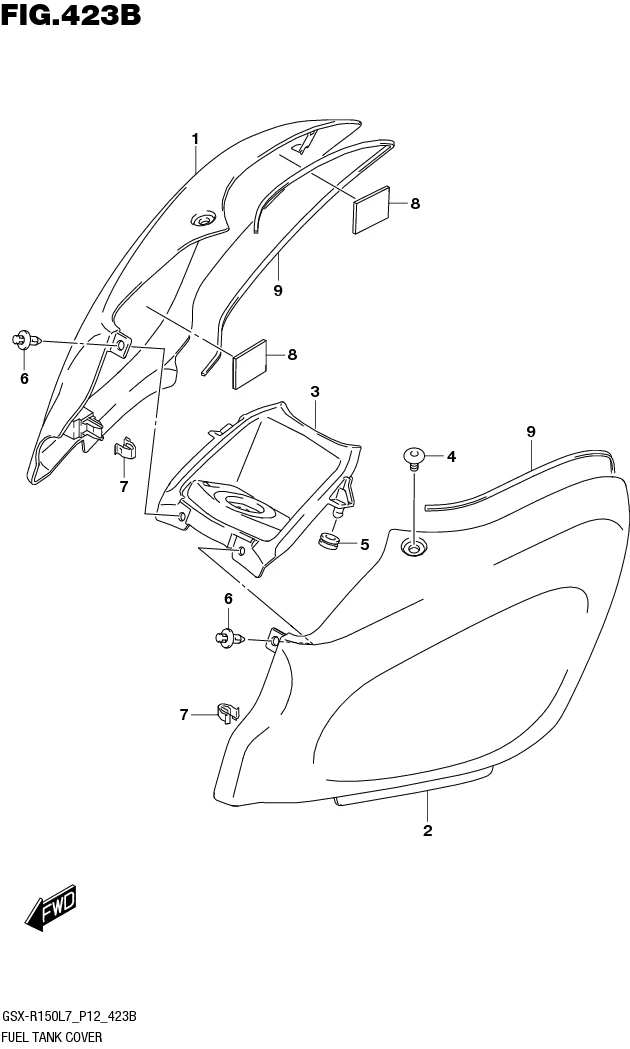

FIG.423B FUEL TANK COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

FIG.423B FUEL TANK COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1-2 44292-23K00-291 COVER, FUEL TANK RH (BLACK)FOR 291 1 Rp164.500 FOR 291
1-3 44292-23K00-YZE COVER, FUEL TANK RH (RED)FOR APM 1 Rp164.500 FOR APM
1-4 44292-23K00-YSF COVER, FUEL TANK RH (BLUE)FOR YSF 1 Rp159.500 FOR YSF
1-5 44292-23K00-YVU COVER, FUEL TANK RH (BLACK)FOR YVU 1 Rp164.500 FOR YVU
1-1 44292-23K00-YUH COVER, FUEL TANK RH (WHITE)FOR YUH 1 Rp164.500 FOR YUH
2-4 44293-23K00-YSF COVER, FUEL TANK LH (BLUE)FOR YSF 1 Rp159.500 FOR YSF
2-5 44293-23K00-YVU COVER, FUEL TANK LH (BLACK)FOR YVU 1 Rp164.500 FOR YVU
2-3 44293-23K00-YZE COVER, FUEL TANK LH (RED)FOR APM 1 Rp164.500 FOR APM
2-2 44293-23K00-291 COVER, FUEL TANK LH (BLACK)FOR 291 1 Rp164.500 FOR 291
2-1 44293-23K00-YUH COVER, FUEL TANK LH (WHITE)FOR YUH 1 Rp164.500 FOR YUH
3 44291-23K00-000 COVER, FUEL TANK CENTER 1 Rp56.000
4 44295-23K00-000 SCREW, FUEL TANK COVER 2 Rp7.500
5 09320-06027-000
SUB: 09320-06016-000		 CUSHION 2 Rp3.500
6 09409-06314-5PK
SUB: 09409-06314-000		 CLIP 2 Rp3.500
7 09409-08326-000 CLIP 2 Rp8.000
8 44572-13G00-000 FASTENER, FUEL TANK 4 Rp64.500
9 44277-23K00-000 CUSHION, FUEL TANK SIDE COVER 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
