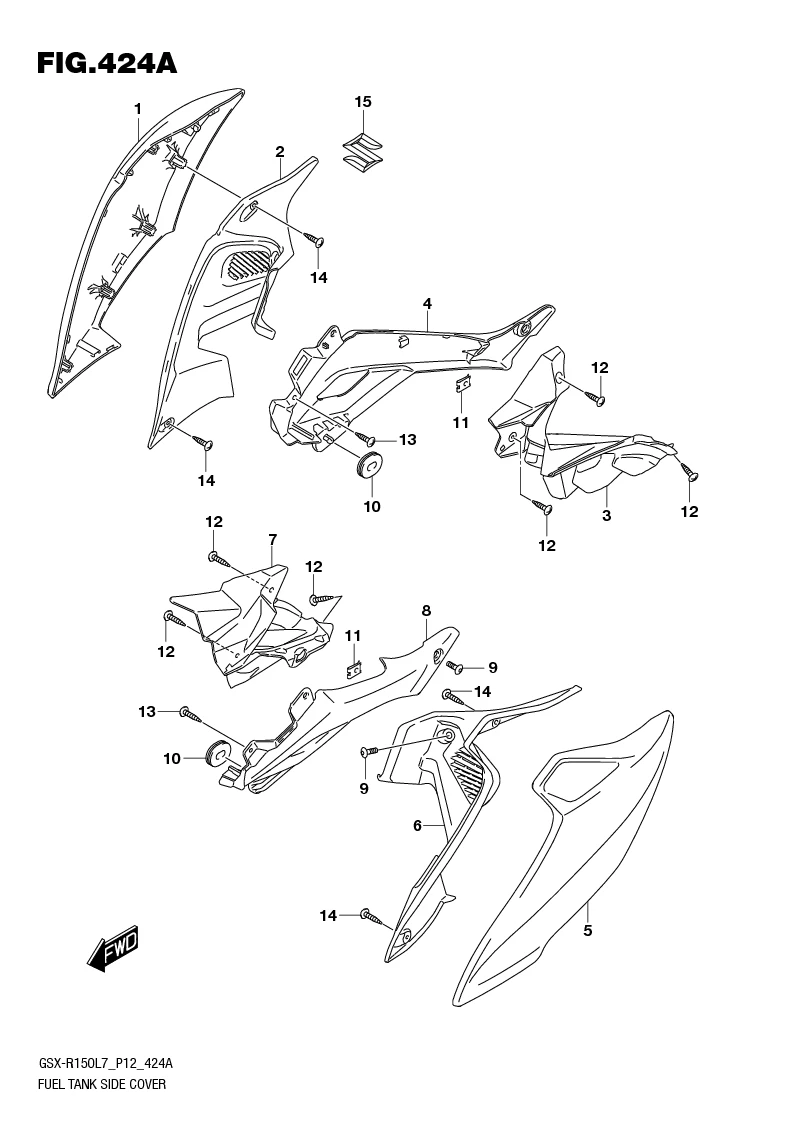

FIG.424A FUEL TANK SIDE COVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

FIG.424A FUEL TANK SIDE COVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1-2 47121-23KA0-291 COVER, FRAME FRONT RH (BLACK)FOR 291 1 Rp125.500 FOR 291
1-3 47121-23KA0-YNJ COVER, FRAME FRONT RH (SILVER)FOR YNJ 1 Rp125.500 FOR YNJ
1-4 47121-23KA0-YSF COVER, FRAME FRONT RH (BLUE)FOR YSF 1 Rp125.500 FIR YSF
1-1 47121-23KA0-YZE COVER, FRAME FRONT RH (RED)FOR GTA 1 Rp125.500 FOR GTA
2 47131-23KA0-000 COVER, FRAME FRONT INNER RH 1 Rp107.500
3 47141-23KA0-000 COVER, FRAME FRONT MIDDLE RH 1 Rp107.500
4 47151-23KA0-000 COVER, FRAME FRONT LOWER RH 1 Rp107.500
5-4 47221-23KA0-YSF COVER, FRAME FRONT LH (BLUE)FOR YSF 1 Rp125.500 FIR YSF
5-3 47221-23KA0-YNJ COVER, FRAME FRONT LH (SILVER)FOR YNJ 1 Rp125.500 FOR YNJ
5-2 47221-23KA0-291 COVER, FRAME FRONT LH (BLACK)FOR 291 1 Rp125.500 FOR 291
5-1 47221-23KA0-YZE COVER, FRAME FRONT LH (RED)FOR GTA 1 Rp125.500 FOR GTA
6 47231-23KA0-000 COVER, FRAME FRONT INNER LH 1 Rp107.500
7 47241-23KA0-000 COVER, FRAME FRONT MIDDLE LH 1 Rp107.500
8 47251-23KA0-000 COVER, FRAME FRONT LOWER LH 1 Rp107.500
9 44514-23K00-000 SCREW, FRAME COVER FRONT 4 Rp6.500
10 94478-14J00-000 CUSHION, FRAME COVER FRONT LWR 2 Rp4.000
11 09148-04019-000
SUB: 09148B04019N000		 NUT 2 Rp6.500
12 03541-0416A-000 SCREW 6 Rp3.500
13 03541-0416A-000 SCREW 2 Rp3.500
14 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 4 Rp4.500
15 68641-23K10-000
SUB: 68641-23K00-000		 EMBLEM, "S" 2 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
