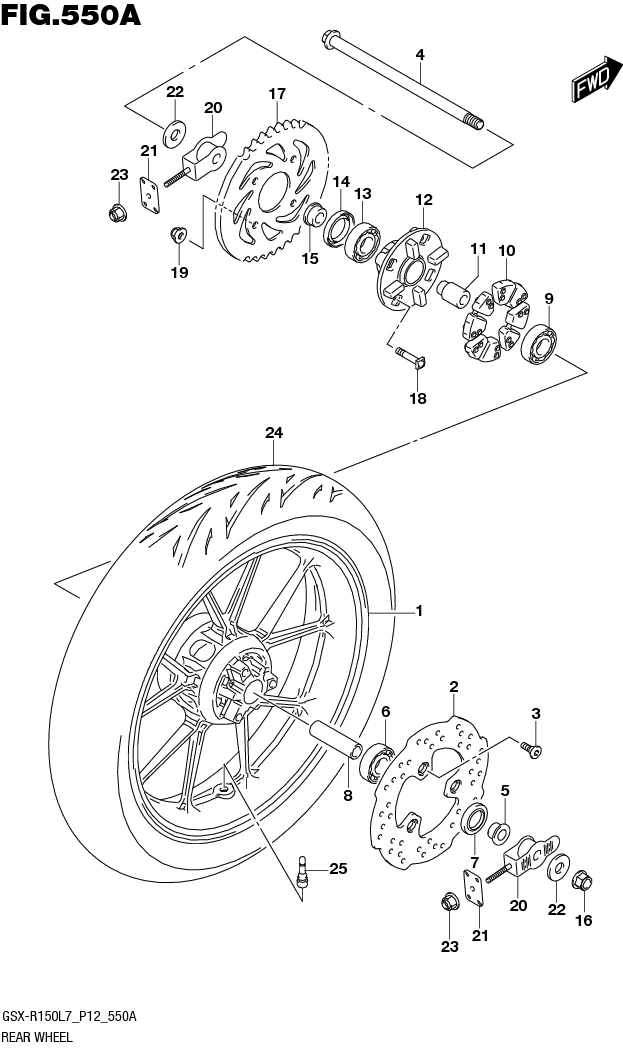

FIG.550A REAR WHEEL

FIG.550A REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64111-23K00-019 WHEEL, REAR (17X350) (BLACK) 1 Rp976.000
1-2 64111-23K00-PZW WHEEL,REAR(17M/CXMT3.50) (ROUGE RED NO.4) 1 Rp994.000 Minor Change 2018_40X
2 69211-25G50-000 DISC, REAR BRAKE 1 Rp120.500
3 59218-09G10-000 BOLT 3 Rp7.000
4 64711-23K00-000 AXLE, REAR 1 Rp47.000
5 64741-23K00-000 SPACER, REAR AXLE, RH 1 Rp12.000
6 08123-6202B-000
SUB: 08123-62027-000		 BEARING RH 1 Rp39.500 RH
7 64841-23K00-000 SEAL, WHEEL BEARING RH 1 Rp9.500
8 64731-23K00-000 SPACER, REAR WHEEL BEARING 1 Rp15.500
9 08123-6202B-000
SUB: 08123-62027-000		 BEARING LH 1 Rp39.500 LH
10 64651-35J00-000 ABSORBER, REAR HUB SHOCK 4 Rp8.000
11 64761-23K00-000 RETAINER, REAR SPROCKET DRUM 1 Rp33.500
12 64611-23K00-000 DRUM, REAR SPROCKET 1 Rp95.000
13 08123-60047-000 BEARING 1 Rp39.000
14 64841-34J00-000 SEAL, RR SPROCKET MTG DRUM 1 Rp9.500
15 64742-23K00-000 SPACER, REAR SPROCKET DRUM 1 Rp12.500
16 08319-3114A-000 NUT 1 Rp53.000
17 64511-23K00-000 SPROCKET, REAR (NT:45) 1 Rp111.000
18 09105-08011-000
SUB: 09105-08011L000		 BOLT (8X36) 4 Rp6.500
19 08319-3108A-000
SUB: 08319B3108AN000		 NUT 4 Rp4.000
20 61410-34J00-000 ADJUSTER, CHAIN 2 Rp20.500
21 61421-30H00-000 PLATE, CHAIN ADJUSTER GUIDE 2 Rp8.000
22 61445-34J00-000 WASHER, REAR AXLE 2 Rp9.500
23 08319-3106A-000
SUB: 08319B3106AN000		 NUT 2 Rp6.500
24 65110-23K00-000 TIRE, REAR(130/70-17M/C 62P NR88) 1 Rp851.000
25 43130-40J00-000 VALVE ASSY, WHEEL RIM (TR413) 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
