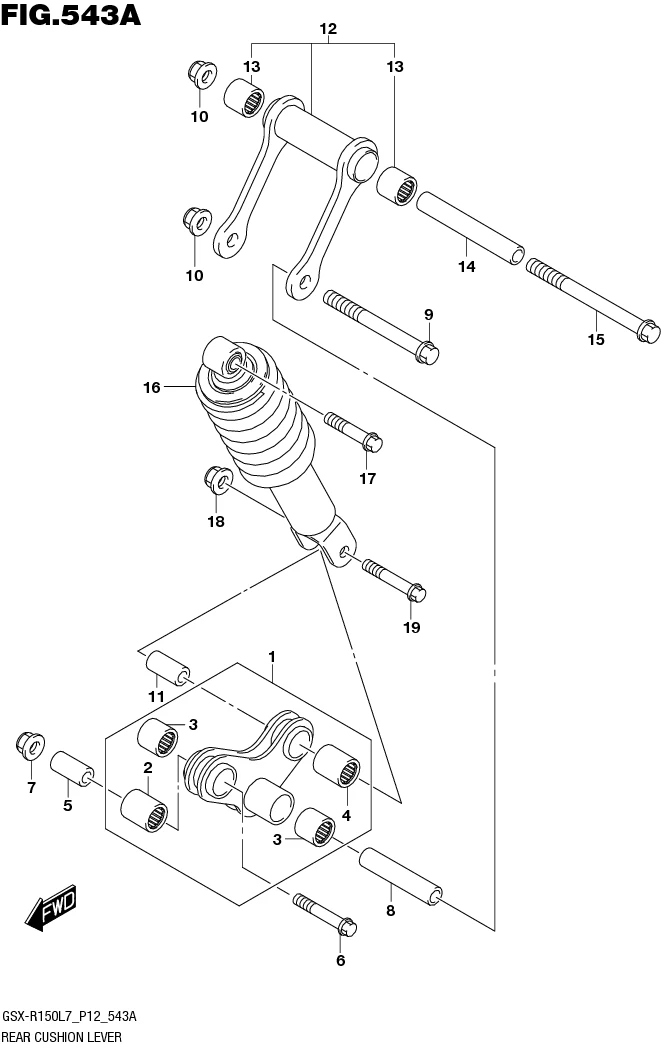

FIG.543A REAR CUSHION LEVER

FIG.543A REAR CUSHION LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 62600-23822-000
SUB: 62600-23820-000		 LEVER SET, REAR CUSHION 1 Rp303.500
2 09263-17046-000 _BEARING (17X24X32)FRONT 1 Rp198.500 FRONT
3 09263-17053-000
SUB: 09263-17037-000		 _BEARING (17X24X25)CENTER 2 Rp38.000 CENTER
4 09263-17057-000
SUB: 09263-17034-000		 _BEARING (17X24X26)REAR 1 Rp201.000 REAR
5 62684-23K10-000 SPACER, REAR CUSH LVR FR 1 Rp27.500
6 62668-42A02-000 BOLT, RR CUSH LVR FR 1 Rp60.500
7 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
8 62684-23K00-000 SPACER, REAR CUSH LVR CTR 1 Rp34.000
9 09103-12097-000 BOLT (12X105) 1 Rp22.000
10 08319-3112A-000
SUB: 08319B3112AN000		 NUT 2 Rp7.000
11 62684-01D10-000 SPACER, REAR CUSH LVR RR 1 Rp24.500
12 62600-23831-000
SUB: 62600-23830-000		 ROD SET, CUSHION LEVER 1 Rp159.500
13 09263-17053-000
SUB: 09263-17037-000		 _BEARING (17X24X25) 2 Rp38.000
14 62685-23K00-000 SPACER, REAR CUSH ROD 1 Rp38.500
15 09103-12077-000 BOLT (12X130) 1 Rp20.000
16 62100-23K00-019 ABSORBER ASSY, RR SHOCK(BLACK) 1 Rp474.500
17 09103-10049-000
SUB: 09103B10049N000		 BOLT (10X44)UPPER 1 Rp6.500 UPPER
18 08319-3110A-000 NUT 1 Rp4.500
19 09103-10213-000 BOLT (10X52)LOWER 1 Rp30.500 LOWER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
