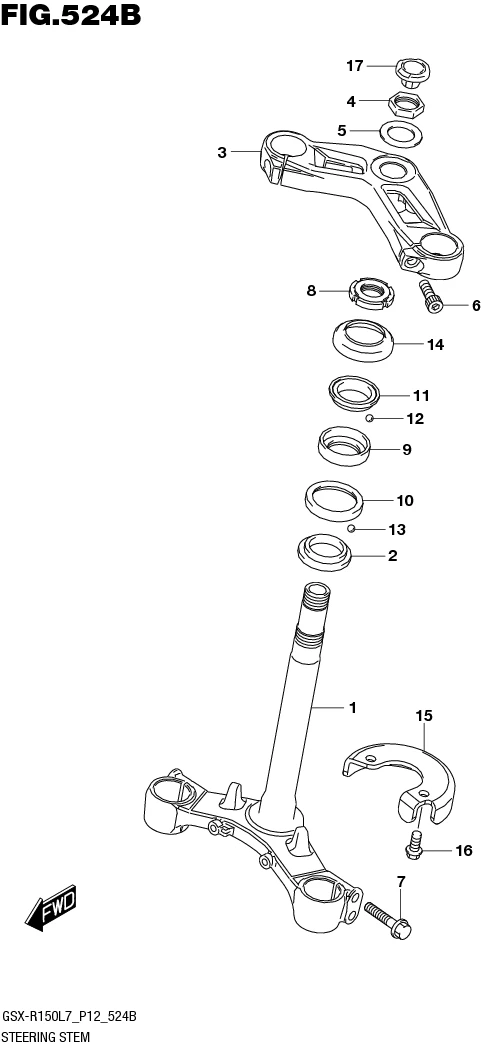

FIG.524B STEERING STEM (GSX-R150RFL7 P12)

FIG.524B STEERING STEM (GSX-R150RFL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 51410-23K00-000 STEM, STEERING 1 Rp296.500
2 51622-25G00-000
SUB: 51622B25G00N000		 RACE 1 Rp48.000
3 51311-23K10-000 BRACKET, UPPER 1 Rp254.500
4 51353-12K00-000 NUT 1 Rp44.000
5 51354-49G00-000
SUB: 51354B49G00N000		 WASHER 1 Rp6.500
6 51328-23K00-000 BOLT 2 Rp5.500
7 51434-12K00-000 BOLT 4 Rp5.500
8 51631-05000-000 NUT, STEERING STEM 1 Rp20.000
9 51611-41H01-000 RACE, INNER UPPER 1 Rp20.500
10 51612-41H01-000 RACE, INNER LOWER 1 Rp20.500
11 51621-41H00-000 RACE, OUTER UPPER 1 Rp31.000
12 06111-06004-000
SUB: 06111-06004L000		 BALL UPPER 23 Rp1.000 UPPER
13 06111-06004-000
SUB: 06111-06004L000		 BALL LOWER 28 Rp1.000 LOWER
14 51643-06001-000 DUST SEAL, UPPER 1 Rp3.000
15 51910-23K00-000 PLATE, STEERING LOCK 1 Rp32.500
16 09103-08351-000 SCREW 2 Rp19.500
17 51344-23K00-000 CAP, STEERING STEM 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
