  5. FIG.536B FRONT BRAKE HOSE (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

GSXR-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.355B HANDLE SWITCH (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.401A FRAME (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.401B FRAME (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.407A STAND (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.407B STAND (GSX-R150RFL7 P12/GSX-R150RFL7 P12)FIG.415A FOOTREST (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.415B FOOTREST (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.420A FUEL TANK (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.420B FUEL TANK (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.423A FUEL TANK COVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.423B FUEL TANK COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.424A FUEL TANK SIDE COVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.445A FRAME COVER (GSX-S150MFL7 P12/GSX-S150MFL7 P12)FIG.445B FRAME COVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.451A HEADLAMP HOUSING (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.460A FRONT FENDER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.460B FRONT FENDER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.462A HANDLEBAR (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.462B HANDLEBAR (GSX-R150RFL7 P12/GSX-R150RFL7 P12)FIG.467A HANDLE LEVER (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.467B HANDLE LEVER (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.474A REAR FENDERFIG.481A COWLING BODY (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.483A UNDER COWLING (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.485A SIDE COWLING (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.496A LABELFIG.505A SEAT (GSX-S150MFL7 P12GSX-S150MFXL7 P12)FIG.505B SEAT (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.521A FRONT FORK DAMPERFIG.524A STEERING STEM (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.524B STEERING STEM (GSX-R150RFL7 P12)FIG.530A FRONT WHEELFIG.535A FRONT CALIPERFIG.536A FRONT BRAKE HOSE (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.536B FRONT BRAKE HOSE (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.537A FRONT MASTER CYLINDERFIG.541A REAR SWINGINGARMFIG.543A REAR CUSHION LEVERFIG.550A REAR WHEELFIG.555A REAR CALIPERFIG.558A REAR MASTER CYLINDERFIG.915A STRIPPING SET(GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.915B STRIPPING SET(GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

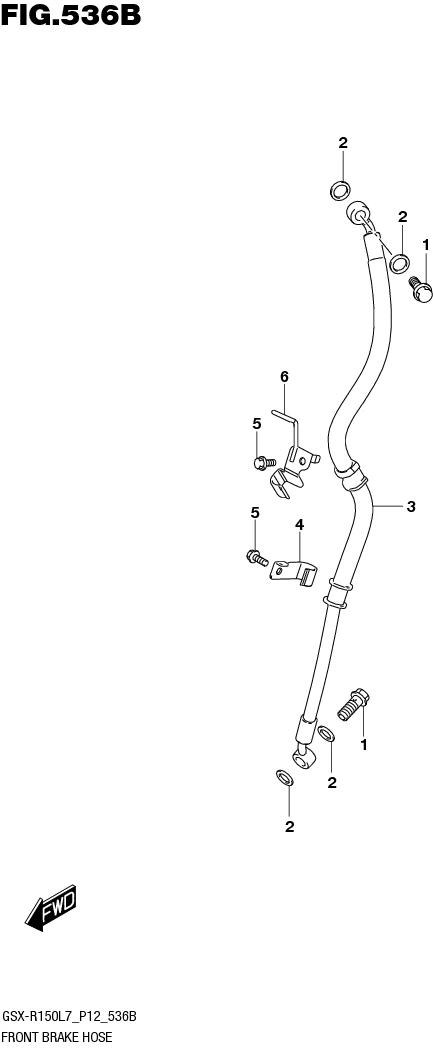

FIG.536B FRONT BRAKE HOSE (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

FIG.536B FRONT BRAKE HOSE (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 59492-30H20-000
SUB: 59492-30H10-000		 BOLT, BRAKE FLUID 2 Rp25.000
2 59502-34J10-000 WASHER, BRAKE FLUID 4 Rp11.500
3 59480-23K11-000
SUB: 59480-23K10-000		 HOSE, FRONT BRAKE 1 Rp249.000
4 59268-23K00-000 CLAMP, HOSE LOWER 1 Rp5.500
5 01547-0610A-000
SUB: 01547B0612BN000		 BOLT 2 Rp3.000
6 59260-23K00-000 CLAMP, FR BRAKE HOSE UPPER 1 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
