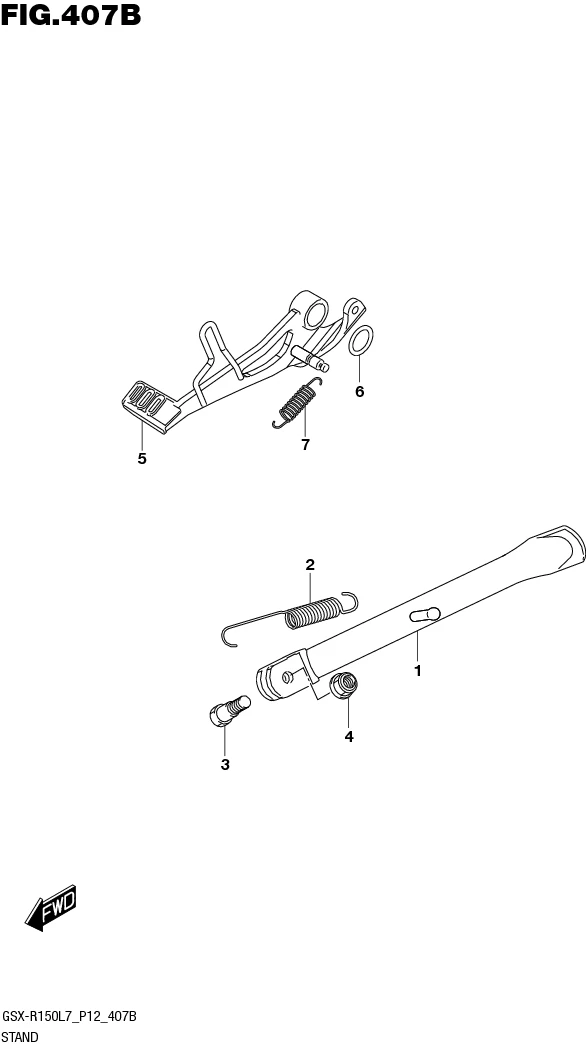

FIG.407B STAND (GSX-R150RFL7 P12/GSX-R150RFL7 P12)

FIG.407B STAND (GSX-R150RFL7 P12/GSX-R150RFL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 42310-23K00-000 STAND, PROP 1 Rp45.000
2 09443-14077-000 SPRING 1 Rp6.000
3 42341-40J00-000 BOLT, PROP STAND 1 Rp11.500
4 08319-3110A-000 NUT 1 Rp4.500
5 43110-23K01-000
SUB: 43110-23K00-000		 PEDAL, BRAKE 1 Rp70.500
6 09160-18022-000 WASHER (18X24X1) 1 Rp19.500
7 09443-11033-000 SPRING 1 Rp28.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
