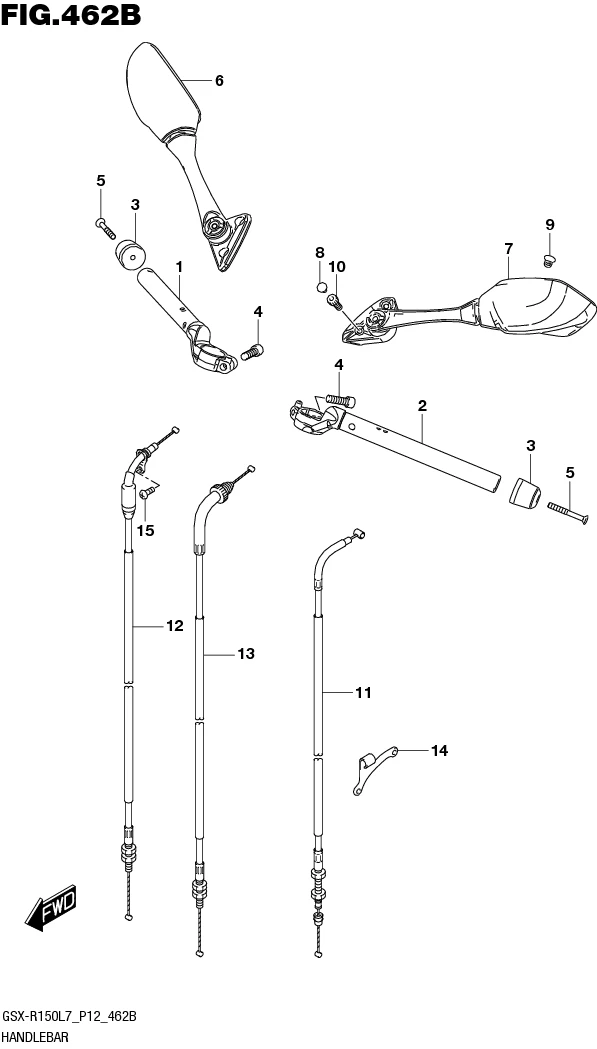

FIG.462B HANDLEBAR (GSX-R150RFL7 P12/GSX-R150RFL7 P12)

FIG.462B HANDLEBAR (GSX-R150RFL7 P12/GSX-R150RFL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 56110-23K00-000 BAR, HANDLE RH 1 Rp182.500
2 56150-23K00-000 BAR, HANDLE LH 1 Rp182.500
3 56278-32J10-000 BALANCER, HANDLEBAR 2 Rp28.000
4 09106-08185-000 BOLT (8X32) 2 Rp9.000
5 09127-06025-000 SCREW (6X50) 2 Rp7.500
6 56500-17K10-000 MIRROR ASSY, REAR VIEW RH 1 Rp196.500
7 56600-17K10-000 MIRROR ASSY, REAR VIEW LH 1 Rp196.500
8 09250-05009-000 CAP 4 Rp12.500
9 09250-09008-000
SUB: 09250-09001-000		 CAP 2 Rp13.500
10 07130-0616A-000
SUB: 07130B0616BN000		 BOLT 4 Rp3.500
11 58200-23K10-000 CABLE ASSY, CLUTCH 1 Rp56.000
12 58300-23K21-000
SUB: 58300-23K20-000		 CABLE ASSY, THROTTLE NO1 1 Rp48.000
13 58300-23K31-000
SUB: 58300-23K30-000		 CABLE ASSY, THROTTLE NO2 1 Rp48.000
14 58634-12K00-000 STOPPER, CLUTCH CABLE 1 Rp8.500
15 02112-0512A-000 SCREW 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
