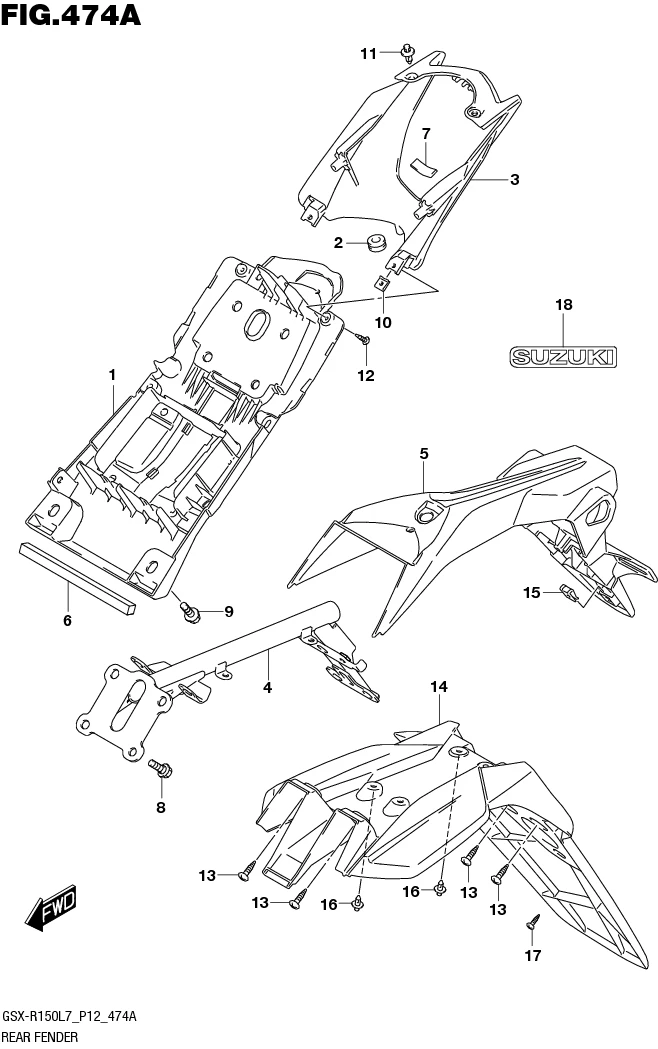

FIG.474A REAR FENDER

FIG.474A REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-23K00-000 FENDER, REAR FRONT 1 Rp77.500
2 48278-16H10-000
SUB: 48278B16H10N000		 CUSHION, REAR FENDER FR COV 1 Rp11.000
3 63121-23K00-000 COVER, REAR FENDER FRONT 1 Rp68.000
4 63130-23K00-000 BRACE, REAR FENDER 1 Rp92.000
5 63141-23K00-000 FENDER, REAR REAR 1 Rp77.500
6 63151-23K00-000 CUSHION, REAR FENDER FRONT 1 Rp4.000
7 63152-23K00-000 CUSHION, REAR FENDER FR COV LW 1 Rp4.000
8 09111-06072-000 BOLT (6X178) 4 Rp3.500
9 09111-06102-000 BOLT (6X148) 2 Rp3.500
10 09148-04019-000
SUB: 09148B04034N000		 NUT 2 Rp6.500
11 09409-06314-5PK
SUB: 09409-06314-000		 CLIP 2 Rp3.500
12 03541-0412B-000
SUB: 03541B0412BN000		 SCREW 2 Rp4.000
13 03541-0616A-000 SCREW 4 Rp13.500
14 63311-23K00-000 EXTENSION, REAR FENDER 1 Rp93.500
15 09148-05080-000 NUT 1 Rp8.000
16 09409-06314-5PK
SUB: 09409-06314-000		 CLIP 4 Rp3.500
17 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 1 Rp3.500
18 68171-23K20-000
SUB: 68171-23K00-000		 EMBLEM, "SUZUKI" 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
