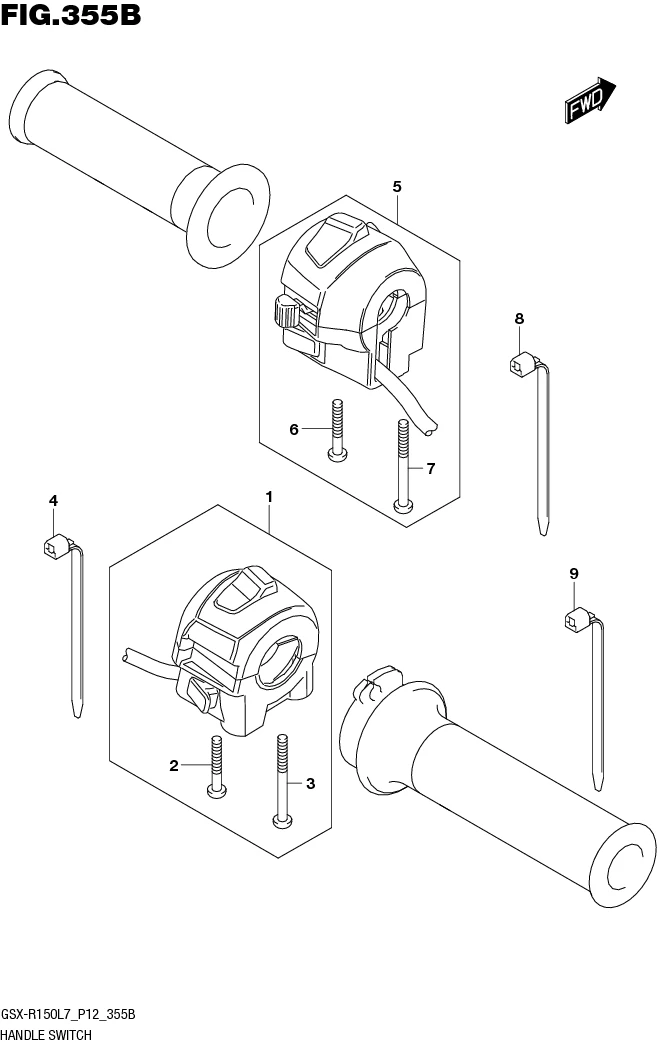

FIG.355B HANDLE SWITCH (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

FIG.355B HANDLE SWITCH (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 37200-23K23-000
SUB: 37200-23K20-000		 SWITCH ASSY, HANDLE RH 1 Rp167.000
2 02112-0530B-000
SUB: 02112B0530BN000		 _SCREW 1 Rp5.500
3 02112-0545B-000 _SCREW 1 Rp21.500
4 09407-14407-000 CLAMP (L:145) 1 Rp18.500
5 37400-23K10-000 SWITCH ASSY, HANDLE LH 1 Rp242.000
6 DISCONTINUE
SUB: 02112-0520B-000		 _SCREW 1 -
7 02112-0540B-000 _SCREW 1 Rp22.500
8 09407-14407-000 CLAMP (L:145) 1 Rp18.500
9 36990-25G20-000 CLAMP, HANDLE SWITCH 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
