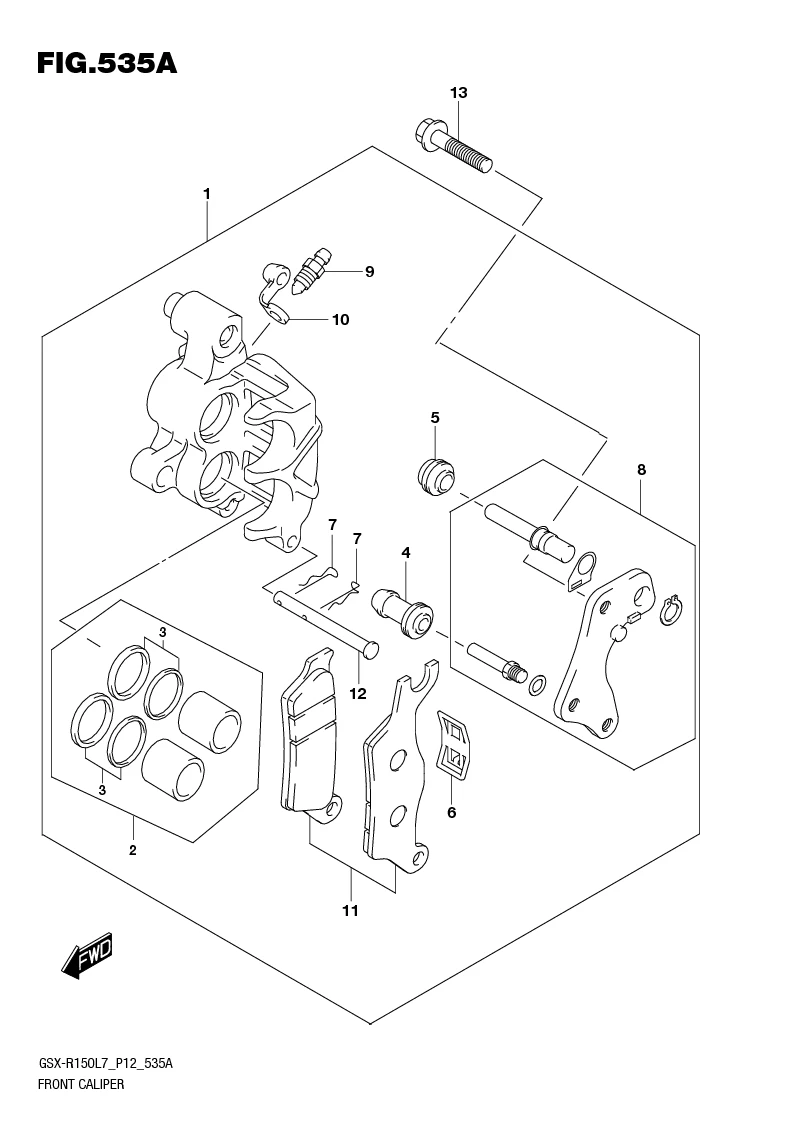

FIG.535A FRONT CALIPER

FIG.535A FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-12K10-000 CALIPER ASSY, FRONT RH 1 Rp618.000
2 59100-34870-000 _PISTON SET 1 Rp117.500
3 59100-34860-000 __SEAL SET, PISTON 1 Rp78.500
4 59109-34J00-000 _INSULATOR 1 Rp15.500
5 59108-34J00-000 _DUST COVER 1 Rp13.500
6 59315-34J00-000 _SPRING, PAD 1 Rp18.000
7 59746-34J00-000 _CLIP 2 Rp11.500
8 59351-34J00-000 _BRACKET 1 Rp75.000
9 59121-30H00-000 _SCREW, BLEEDER 1 Rp18.000
10 59122-30H00-000 _CAP, BLEEDER 1 Rp11.000
11 59100-34880-000 _PAD SET 1 Rp117.500
12 59141-34J10-000 PIN, PAD (20.W049.11) 1 Rp21.500
13 01550-0825A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
